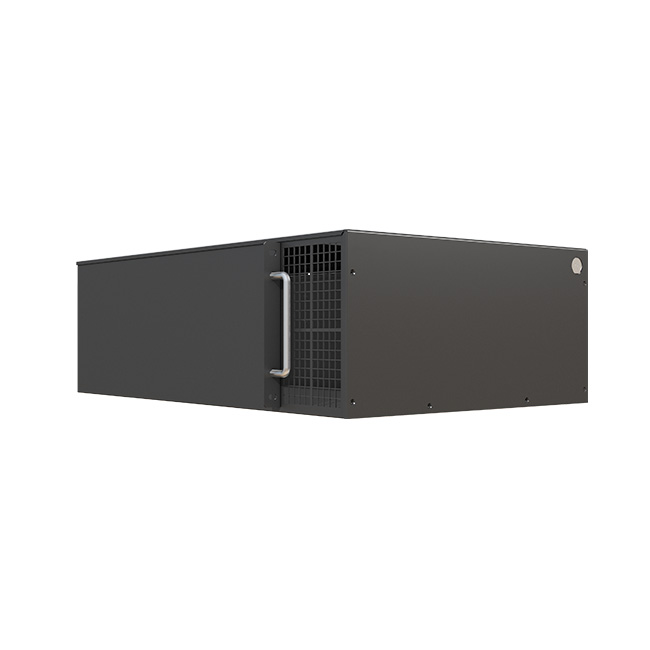

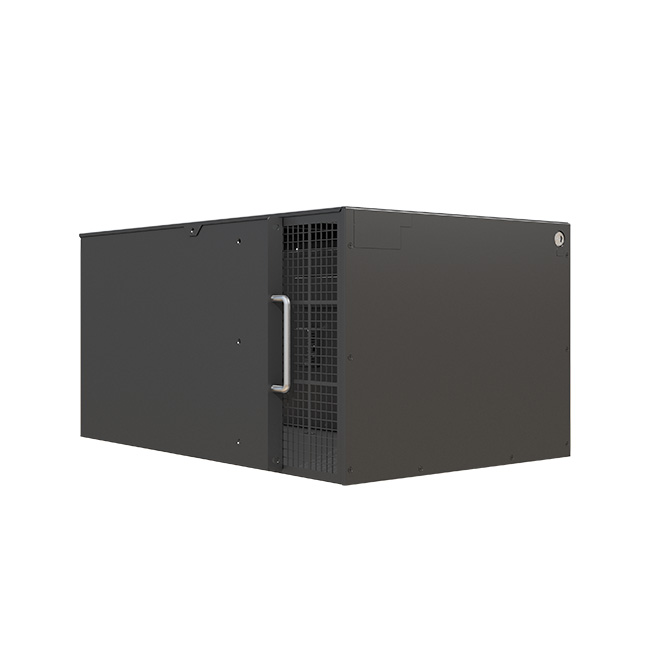

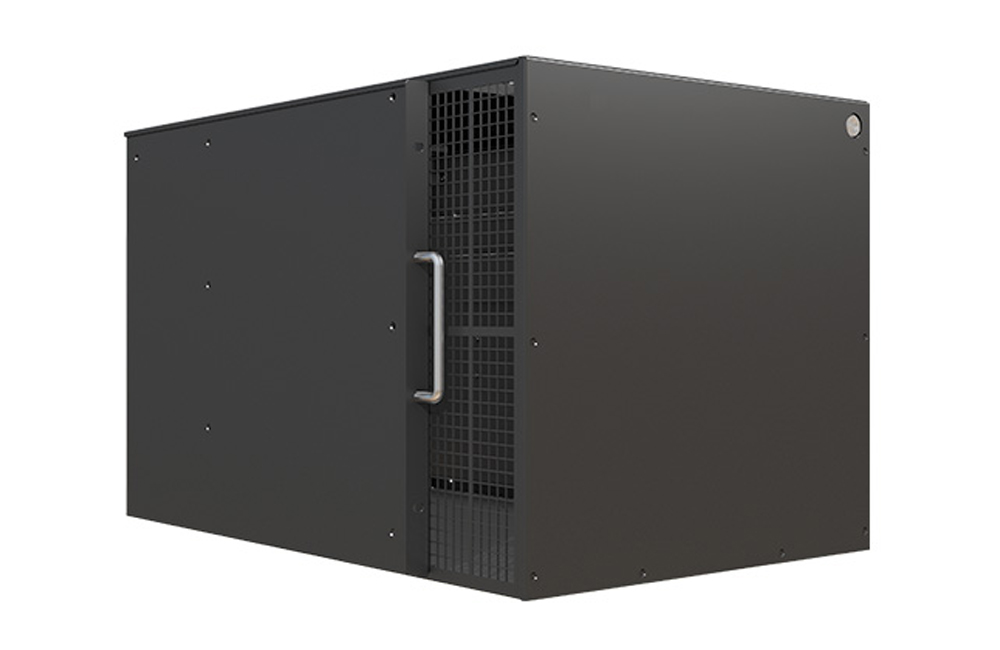

CDA Rack Aircon/Server Air Conditioner

CDA Rack Aircon

Indoor unit model

CDA0004

CDA0005

CDA0008

CDA0013

CDA0004

CDA0005

CDA0008

Dimension-D (mm)

760

400

Main power supply

220V/1Ph~50Hz

Air supply

Three side air supply

Unit performance parameter

Cooling capacity(kW)

3.5

5

7.5

12.5

3.5

5

7.5

Sensible capacity(kW)

3.5

5

7.5

12.5

3.5

5

7.5

Max. operation current FLA(A)

11.5

16.5

20.0

35

11.5

16.5

20

Compressor  QTY

1

Fan type

EC centrifugal fan

Fan QTY

2

2

1

2

1

1

2

Circulating air volume(m³/h)

800

1100

1650

2200

800

1100

1650

Heating capacity(kW)

1

1

1

2

1

1

1

Humidification(kg/h)

1

1

1.5

3

Connecting pipe size

Liquid  pipe(mm)

9.52

9.52

12.7

12.7

9.52

9.52

12.7

Gas   pipe(mm)

15.88

15.88

19.05

19.05

15.88

15.88

19.05

Humidification inlet pipe (Internal thread)

OD20*G3/4"

Water pump drain pipe(mm)

PU pipel D 5*0D8

Natural drain pipe(mm)

Silicone hoselD10*OD14

Unit dimension and weight

Dimension-W(mm)

443

443

443

443

444

444

444

Dimension-D(mm)

715

715

715

715

395

395

395

Dimension-H(mm)

218

218

351

440

352

352

529

Weight(kg)

27

28

36

42

25

26

36

Outdoor unit performance parameter

Outdoor unit model

CDT005SP

CDT007SP

CDT010SP

CDT016SP

CDT005SP

CDT007SP

CDT010SP

Dimension-W(mm)

794

794

1045

1045

794

794

1045

Dimension-D(mm)

310

310

431

431

310

310

431

Dimension-H(mm)

537

537

760

1375

537

537

760

Weight(kg)

30

34

60

85

30

34

60

Electronic element specification

Air switch recommended (A)

16

25

25

40

16

25

25

Indoor power cable diameter

(L、N、PE)3×2.5

(L、N、PE)3×2.5

(L、N、PE)3×4

(L、N、PE)3×6

(L、N、PE)3×2.5

(L、N、PE)3×2.5

(L、N、PE)3×4

Outdoo power cable diameter

(L、N、PE)3×1.5

(L、N、PE)3×2.5

(L、N、PE)3×2.5

(L、N、PE)3×4

(L、N、PE)3×1.5

(L、N、PE)3×2.5

(L、N、PE)3×2.5

Note:
1.Standard working conditions: indoor environment 35℃, wet bulb temperature 20℃, outdoor environment temperature 35℃;
2.760 depth indoor unit can choose only cooling +electric heating or constant temperature and humidity type,400 depth indoor unit can choose only cooling+electric heating type, the maximum working current and recommended air switch according to the constant temperature and humidity unit configuration;
3.760 depth rack air conditioner for cabinets with a depth of 1000mm to 1400mm; Rack air conditioners with a depth of 400 mm are suitable for cabinets with a depth of 600mm to 800mm.
4. The table above is only part of the parameters, the specific configuration is subject to the nameplate. For more product information, please contact us.

Country: Indonesia
Application:data center
Cooling capacity: 36.7kW
EER: 3.96
Air volume: 12750m3/h
Refrigerant: R410A
Power supply: 380V/3P/50Hz

Country: Philippines
Application: MRI room in hospital
Cooling capacity: 29.8kW
Electric heating: 11kW
Air volume: 7500m3/h
Refrigerant: R407C
Power supply: 400V/3P/60Hz
Downflow air supply

Country: USA
Application: Data center cooling
Cooling capacity: 18kW
Air volume: 4100m3/h
Refrigerant: R410A
Power supply: 400V/3P/60Hz
Remote control

Country: Tajikistan
Application: data base station
Cooling capacity: 13.1kW
Air volume: 2400m3/h
Refrigerant: R407C
Power supply: 380V/3P/50Hz

Country:China
Application: wind farm
Cooling capacity: 50kW
Air volume: 12000m3/h
Refrigerant: R22
Power supply: 380V/3P/50Hz
