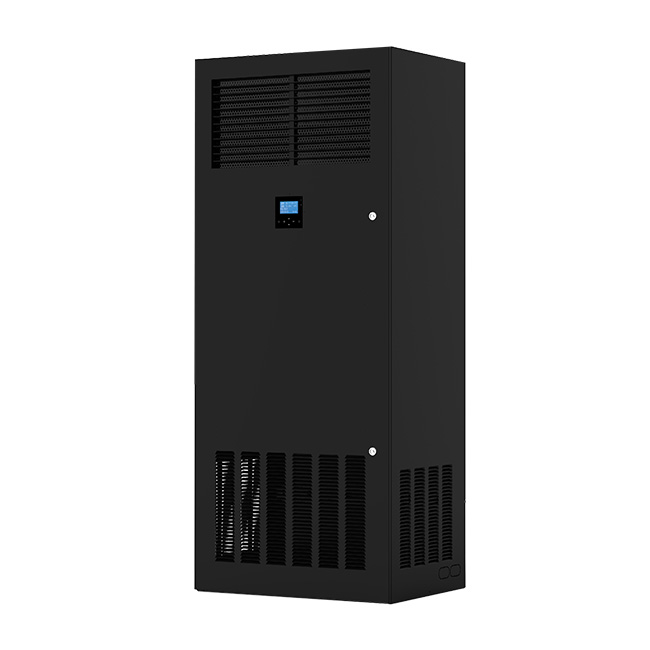

CSA Air-cooled Precision Air Conditioner, equipped with high-efficiency EC centrifugal fans, adopts an advanced design concept. The unit has passed rigorous testing and verification by the national CNAS laboratory and has significant characteristics of energy saving and stable operation.

CSA Precision Aircon for Computer Room
Indoor unit model	CSA1008	CSA1013	CSA1017	CSA1020
Main power supply	380V3Ph~50Hz
Air supply	Up and front air supply
Performance parameter
Cooling capacity(kW)	7.5	12.5	17.5	20.1
Sensible capacity(kW)	6.75	11.25	15.75	18.1
Max. operation current FLA(A)	13.0	16.5	20.0	26.3
Compressor QTY	1.0	1	1	1
Fan type	EC Centrifugal fan
Fan QTY	1
Circulating air volume(m³/h)	2360	3780	5200	5700
Heating capacity(kW)	3
Humidification(kg/h)	3
Connecting pipe size(20m)
Liquid pipe(mm)	6.35	9.52	9.52	12.7
Gas pipe(mm)	15.88	19.05	19.05	19.05
Humidification inlet pipe(Internal thread)	G1/2"
Drain pipe	Inner diameter 19mm, outer diameter 25mm, Metal hose clamp connection
Indoor unit dimension and weight
Dimension-W(mm)	550	650	750	800
Dimension-D(mm)	450	450	550	650
Dimension-H(mm)	1800
Weight(kg)	118	138	160	174

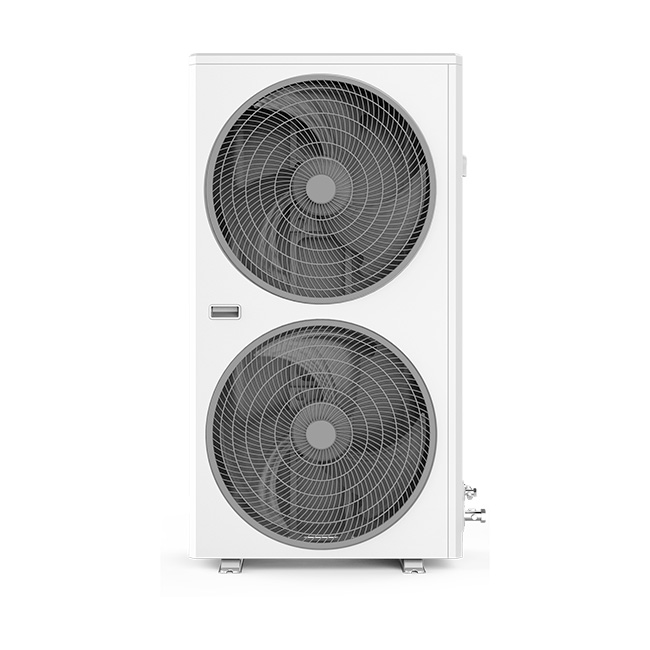

Outdoor unit dimension and weight
Outdoor unit model	CST0O8SP1A	CST013SP1A	CST017SP1A	CSTO20SP1A
Dimension-W(mm)	728	728	1020	1020
Dimension-D(mm)	405
Dimension-H(mm)	762	1370	1370	1370
Weight(kg)	34	53	72	74
Electronic element specification
Air switch(recommended)(A)	16	20	25	32
Indoor power cable diameter(mm²)	42.5+12.5	44.0+14.0	44.0+14.0	46.0+16.0
Outdoor power cable diameter(mm²)	21.0+11.0
Note: 1. Standard working conditions: indoor ambient temperature 24℃, RH 50%, outdoor ambient temperature 35℃,ESP=20Pa; 2. Only cooling+ electric heating or constant temperature and humidity type can be selected. The maximum working current and the recommended air switch are configured according to the constant temperature and humidity unit 3. Water-cooled outdoor unit is optional. For more information, please con

Application: small and medium-sized computer room, equipment room, communication base station, battery room, power room, substation, power distribution room, monitoring room, etc.

Country: Indonesia Application:data center Cooling capacity: 36.7kW EER: 3.96 Air volume: 12750m3/h Refrigerant: R410A Power supply: 380V/3P/50Hz	Country: Philippines Application: MRI room in hospital Cooling capacity: 29.8kW Electric heating: 11kW Air volume: 7500m3/h Refrigerant: R407C Power supply: 400V/3P/60Hz Downflow air supply	Country: USA Application: Data center cooling Cooling capacity: 18kW Air volume: 4100m3/h Refrigerant: R410A Power supply: 400V/3P/60Hz Remote control

Country: Tajikistan Application: data base station Cooling capacity: 13.1kW Air volume: 2400m3/h Refrigerant: R407C Power supply: 380V/3P/50Hz	Country:China Application: wind farm Cooling capacity: 50kW Air volume: 12000m3/h Refrigerant: R22 Power supply: 380V/3P/50Hz
