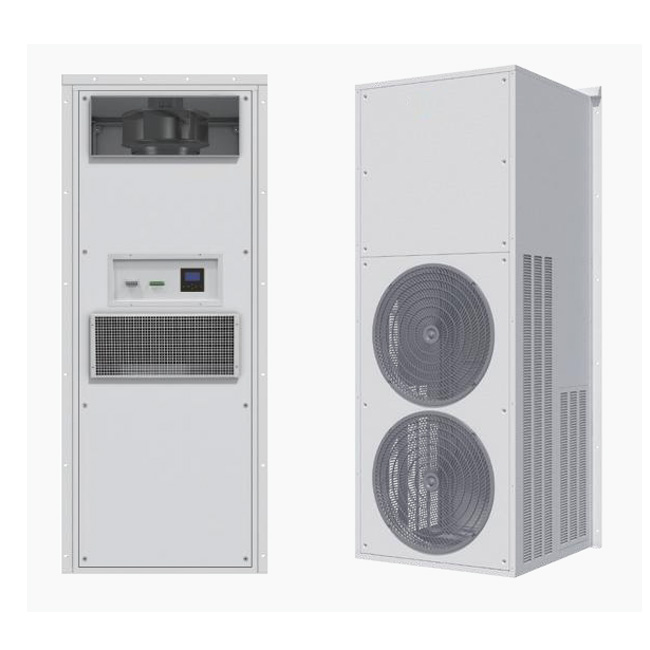

Integrated Storage Container Air Conditioner is specially designed for storage containers and other internal devices with high neatness, which is sensitive to ambient temperature and needs to be isolated from the inside and outside, especially suitable for electric power and new energy applications. The product adopts an integral structure, large air volume, upper air outlet design, and long air supply distance, to avoid local hot spots and provide a safe, reliable, efficient, and energy-saving temperature control solution for energy storage systems.

Integrated Storage Container Aircon
Model	JGA050C2F0A1W	JGB125K2E0AW	JGB150K2E0AW	JGB200K2E0A1W	JGB075U2E0AW	JGB125U2E0AW	JGB200U2E0AW
Dimension
Dimension-H(mm)	1350	2100	2100	2100	1850	1850	2100
Dimension-W(mm)	620	800	800	800	650	800	800
Dimension-D(mm)	300	906	906	906	650	650	650
Dimension(Flange)H(mm)	1401	2145	2145	2145	/	/	/
Dimension(Flange)W(mm)	671	890	890	890	/	/	/
Dimension(Flange)D(mm)	300	906	906	906	/	/	/
Installation and Protection
Installation	Wall-mounted	Wall-mounted	Wall-mounted	Wall-mounted	Floor-mounted	Floor-mounted	Floor-mounted
Application scenarios	Outdoor	Outdoor	Outdoor	Outdoor	Indoor	Indoor	Indoor
IP grade	IPX5	IPX5	IPX5	IPX5	IP20	IP20	IP20
Performance
Fixed frequency	Fixedfrequency	Inverter	Inverter	Inverter	Inverter	Inverter	Inverter
Material	Galvanizedsteelsheet
Refrigerant	R134a	R410a	R410a	R410a	R410a	R410a	R410a
Internal circulating air	1100	3000	4000	5800	2500	2900	6000
Cooling capacity	5000	12500	15000	20000	7500	12500	20000
Input power(m³/h)	1800	4000	6000	8500	2500	4000	10000
Input current(A)	8.2	6.8	10.2	14	11.6	6.8	14
Heating capacity(Optional-W)	2000	6000	6000	9000	4000	6000	9000
Rated operation	1~,220,50	3~,380-415,50	3~,380-415,50	3~,380-415,50	1~,220,50/60	3~,380-415,50/60	3~,380-415,50/60
Sound pressure(db)	70	65	68	70	70	70	75
Note:
1.Standard working conditions: indoor and outdoor ambient temperatures of wallmounted units are 35°C; indoor ambient temperature of floor-mounted unit is 27°C;
outdoor ambient temperature is 35°C;
2.Cooling or both cooling and electric heating type can be selected;
3.The sheet above is only part of the specifications, the specific configuration is subject to the units nameplate. please contact us for more product information.

Application: Energy storage container, outdoor power cabinet, new energy storage cabinet, etc

Country: Indonesia Application:data center Cooling capacity: 36.7kW EER: 3.96 Air volume: 12750m3/h Refrigerant: R410A Power supply: 380V/3P/50Hz	Country: Philippines Application: MRI room in hospital Cooling capacity: 29.8kW Electric heating: 11kW Air volume: 7500m3/h Refrigerant: R407C Power supply: 400V/3P/60Hz Downflow air supply	Country: USA Application: Data center cooling Cooling capacity: 18kW Air volume: 4100m3/h Refrigerant: R410A Power supply: 400V/3P/60Hz Remote control

Country: Tajikistan Application: data base station Cooling capacity: 13.1kW Air volume: 2400m3/h Refrigerant: R407C Power supply: 380V/3P/50Hz	Country:China Application: wind farm Cooling capacity: 50kW Air volume: 12000m3/h Refrigerant: R22 Power supply: 380V/3P/50Hz
