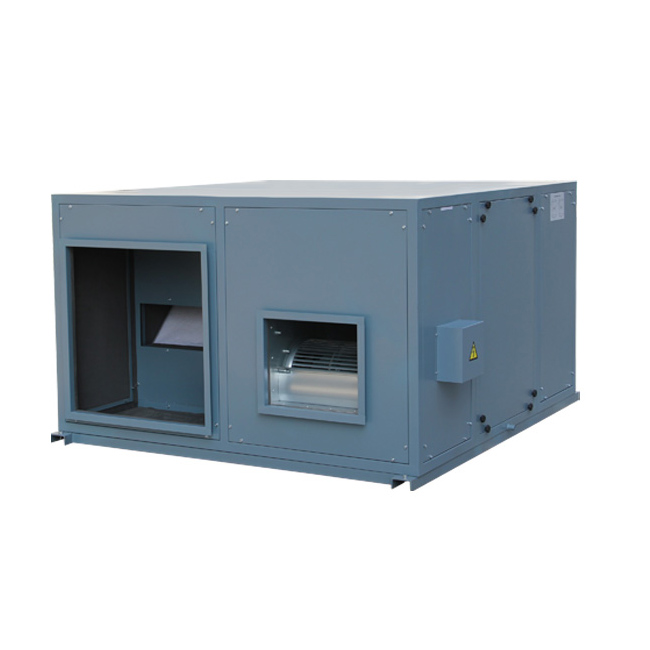

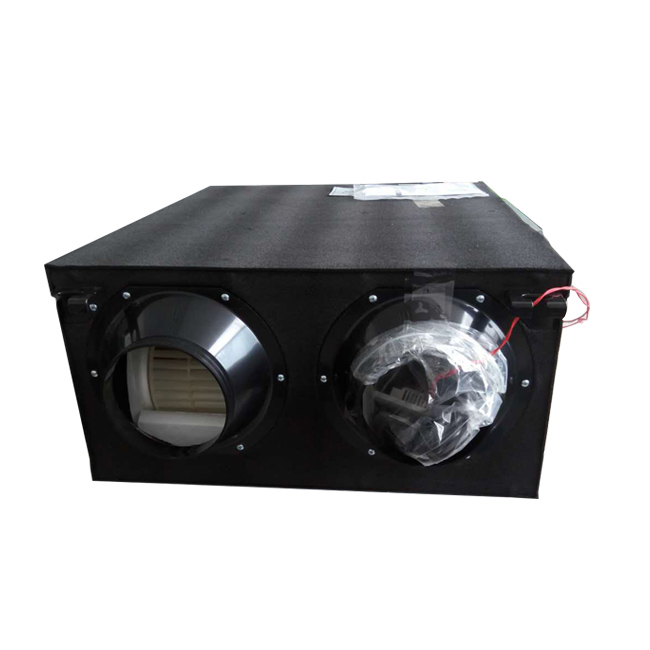

Total Heat Exchange Energy Recovery Ventilator(3000~20000m³)

Feature:
1.  Wide range of application: The air volume range is 3500~20000 m³ / h, suitable for buildings, office buildings, Internet cafes, conference rooms, offices, banks, bars, KTV, fitness clubs, basements and other civilian air conditioning occasions;
2.  Energy recovery: the use of a total heat heat exchange core, using the energy of the exhaust air to pretreat the fresh air, so as to achieve the purpose of energy recovery;
3.  Easy installation: The equipment is installed in the ceiling, does not occupy the effective space in the room, does not affect the indoor decoration effect, and is convenient for design and installation;
4.  Complete functions: In addition to the basic functions such as two-way ventilation, air purification, and energy recovery, the unit also has a bypass function, two-speed adjustment function, and an optional intelligent control system.

Introduction:

1. Energy recovery:
High-quality sensible heat exchange core, excellent heat recovery efficiency, provide comfortable temperature air while recovering energy to save energy, and realize the concept of green and environmentally friendly ventilation.


2. Ventilation:
After the outdoor fresh air is filtered through the initial effect and sent into the room, the indoor dirty air is discharged outside, completely improving the indoor quality and improving the quality of life.

3. Intelligent control:
The device can be equipped with a wifi intelligent LCD controller to realize wireless remote control of the unit. A variety of functions can be completed with one key. The control is convenient and fast. A variety of LCD controllers are optional, intelligent and user-friendly.

4. Quiet power saving:
Optimized structural design, built-in low-noise centrifugal fan for fresh air. The interior of the chassis is covered with highly efficient sound-absorbing materials, with a completely silent design, which is humanized.

5. Bypass function：
A bypass function can be added to use the bypass channel to enjoy outdoor fresh air during the transition season or when the outdoor air is more comfortable, while extending the life of the heat exchanger.

Model	Supply Power	Air volume (m³/h)	Static pressure(Pa)	Input power(W)	Temperature efficiency(%)	Enthalpy efficiency(%)		Noise(dB)	Weight(Kg)
						Summer condition	Winter condition
K-35WD	380V50Hz	3500	100	2200	72	64	65	61	272
K-40WD		4000	250	2650	74	58	66	62	297
K-50WD		5000	250	3900	75	58	65	65	382
K-70WD		7000	160	4380	73	57	61	66	495
K-80WD		8000	250	5130	74	53	63	68	603
K-100WD		10000	280	7900	74	51	64	66	761
K-140WD		14000	180	8765	70	55	60	68	903
K-160WD		16000	250	10260	70	53	65	69	1080
K-200WD		20000	250	14800	72	53	63	72	1365

Suitable for buildings, office buildings, Internet cafes, conference rooms, offices, banks, bars, KTV, fitness clubs, basements and other civilian air conditioning occasions;
