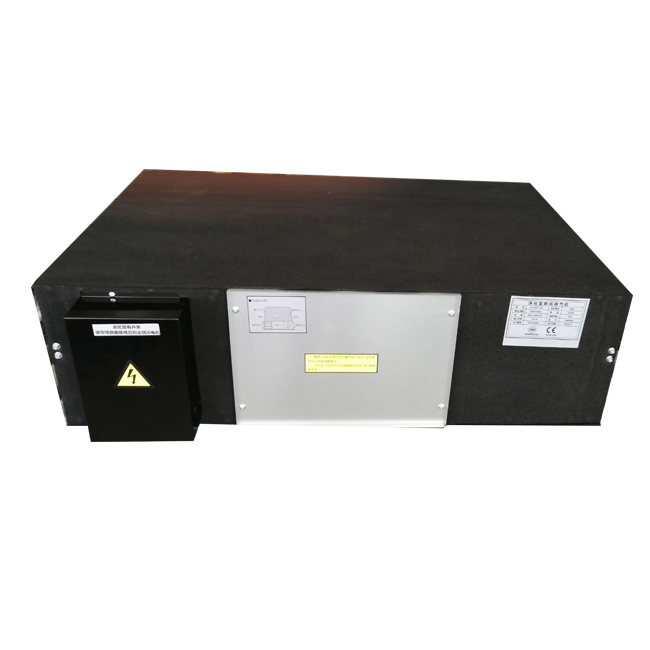

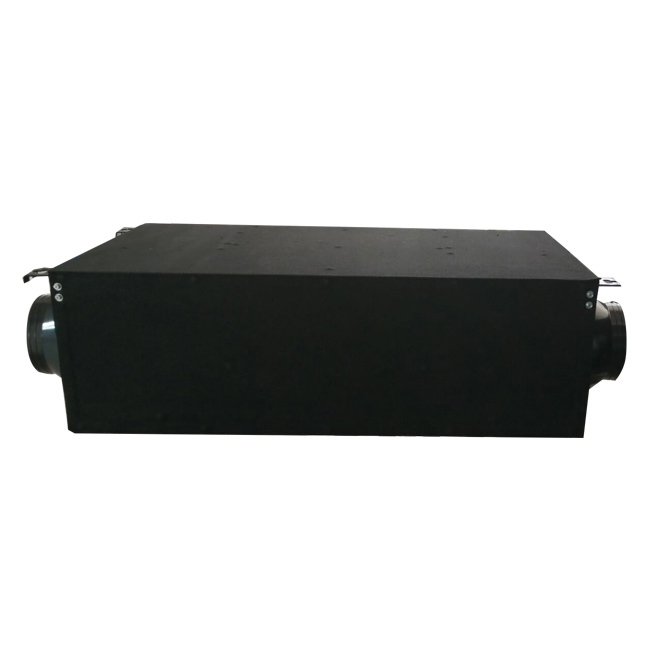

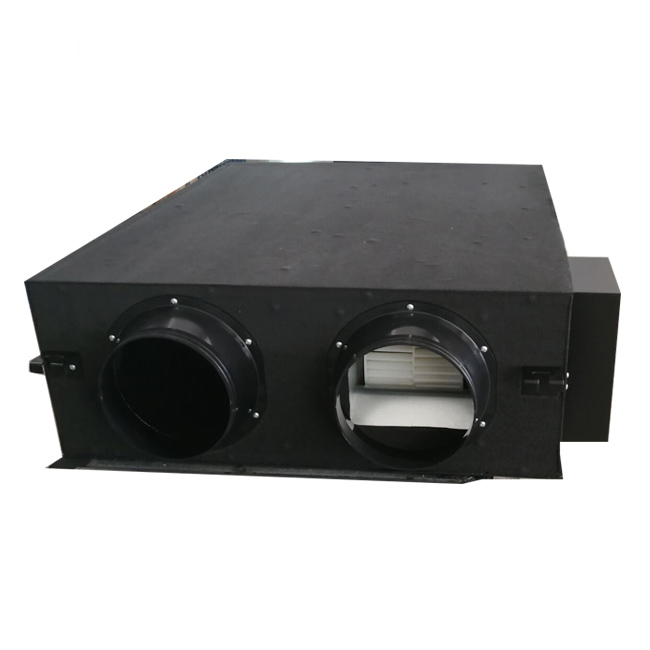

Total Heat Exchange Energy Recovery Ventilator(150~1000m³/h)

Feature:

1.  Wide application range: The air volume range is 150 ~ 1000 m³ / h, suitable for residential, air-conditioned cafes, conference rooms, offices, banks, bars, hotels, test rooms, chess and card rooms, fitness clubs, basements and other civil air-conditioning occasions;
2.  Energy recovery: the use of a total heat heat exchange core, using the energy of the exhaust air to pretreat the fresh air, so as to achieve the purpose of energy recovery;
3.  Easy installation: The equipment is installed in the ceiling, does not occupy the effective space in the room, does not affect the indoor decoration effect, and is convenient for design and installation;
4.  Complete functions: In addition to the basic functions such as two-way ventilation, air purification, and energy recovery, the unit also has a bypass function, two-speed adjustment function, and an optional intelligent control system.

Introduction:

1. Energy recovery:
High-quality sensible heat exchange core, excellent heat recovery efficiency, provide comfortable temperature air while recovering energy to save energy, and realize the concept of green and environmentally friendly ventilation.


2. Ventilation:
After the outdoor fresh air is filtered through the initial effect and sent into the room, the indoor dirty air is discharged outside, completely improving the indoor quality and improving the quality of life.

3. Intelligent control:
The device can be equipped with a wifi intelligent LCD controller to realize wireless remote control of the unit. A variety of functions can be completed with one key. The control is convenient and fast. A variety of LCD controllers are optional, intelligent and user-friendly.

4. Quiet power saving:
Optimized structural design, built-in low-noise centrifugal fan for fresh air. The interior of the chassis is covered with highly efficient sound-absorbing materials, with a completely silent design, which is humanized.

5. Bypass function：
A bypass function can be added to use the bypass channel to enjoy outdoor fresh air during the transition season or when the outdoor air is more comfortable, while extending the life of the heat exchanger.

Product parameter:

Model	Air volume （m³/h）	Rated voltage（V/HZ）	Static pressure（Pa）	input power（W）	Summer enthalpy efficiency（%） High / low	Winter enthalpy efficiency（%） High / low	noise（dB）	weight（Kg）
K-02DT	200/150	220V50Hz	70	70/65	75/58  75/58	75/69  75/69	30/28	26
K-03DT	300/250	220V50Hz	85	105/99	76/56  75/56	76/67  76/67	32/30	32
K-04DT	400/300	220V50Hz	90	155/152	77/55  76/56	77/67  76/66	34/33	38
K-06DT	600/500	220V50Hz	100	198/190	71/52  70/50	71/64  70/63	35/34	48
K-08DT	800/600	220V50Hz	120	410/390	75/55  73/50	75/64  73/63	37/35	73
K-10DT	1000/800	220V50Hz	100	435/400	76/56  74/54	76/67  74/66	38/36	92

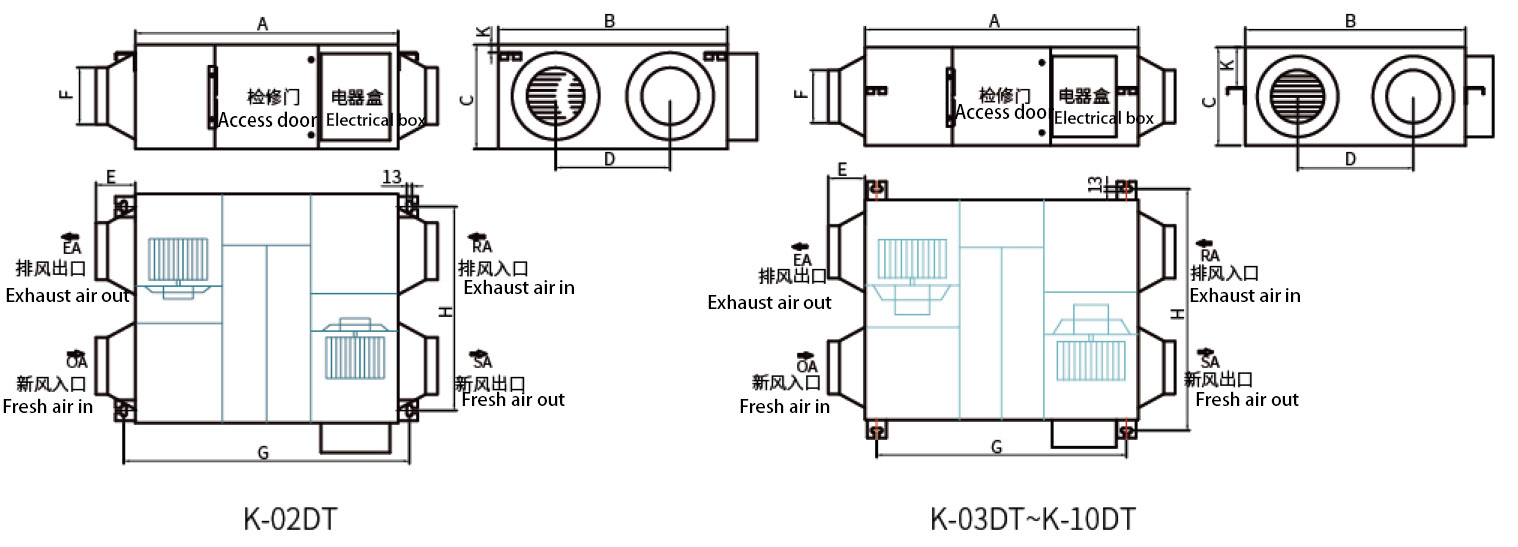

Product dimension:

Model	A	B	C	D	E	F	G	H	K
K-02DT	665	580	268	290	100	Φ144	723	516	20
K-03DT	745	600	268	315	100	Φ144	681	658	109
K-04DT	745	800	268	483	100	Φ192	681	858	109
K-06DT	820	900	268	500	100	Φ192	756	958	109
K-08DT	1110	880	388	428	86	Φ242	1046	938	169
K-10DT	1110	1135	388	683	86	Φ242	1046	1193	169



Suitable for residential, air-conditioned cafes, conference rooms, offices, banks, bars, hotels, test rooms, chess and card rooms, fitness clubs, basements and other civil air-conditioning occasions
