Heat Exchange Ventilator
Sensible Heat Exchange Ventilator(800~16000m³/h)
  • Sensible Heat Exchange Ventilator(800~16000m³/h)
  • Sensible Heat Exchange Ventilator(800~16000m³/h)
  • Sensible Heat Exchange Ventilator(800~16000m³/h)
  • Sensible Heat Exchange Ventilator(800~16000m³/h)

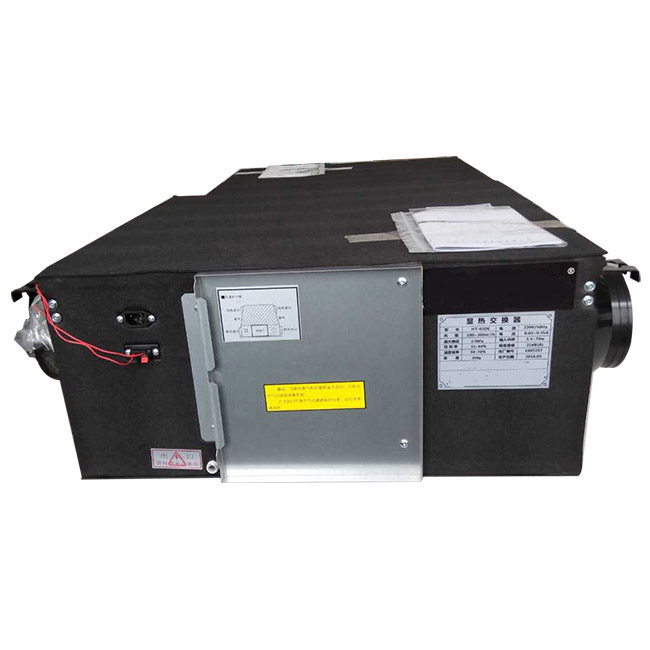

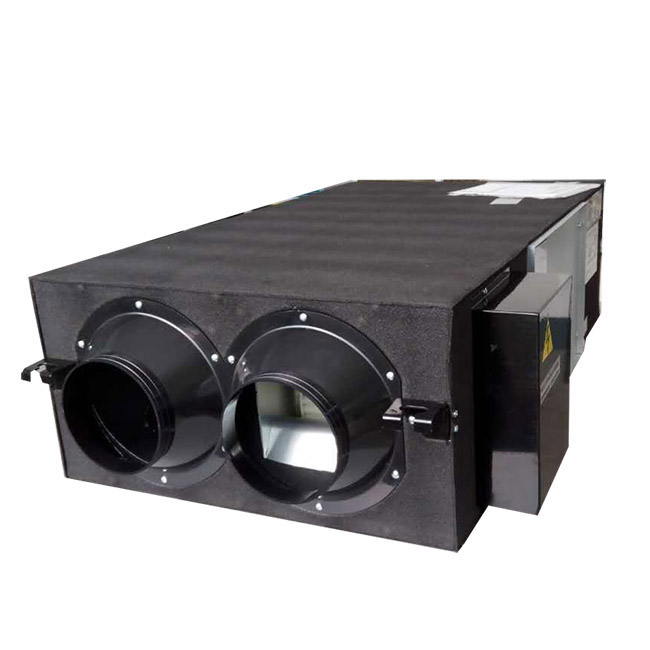

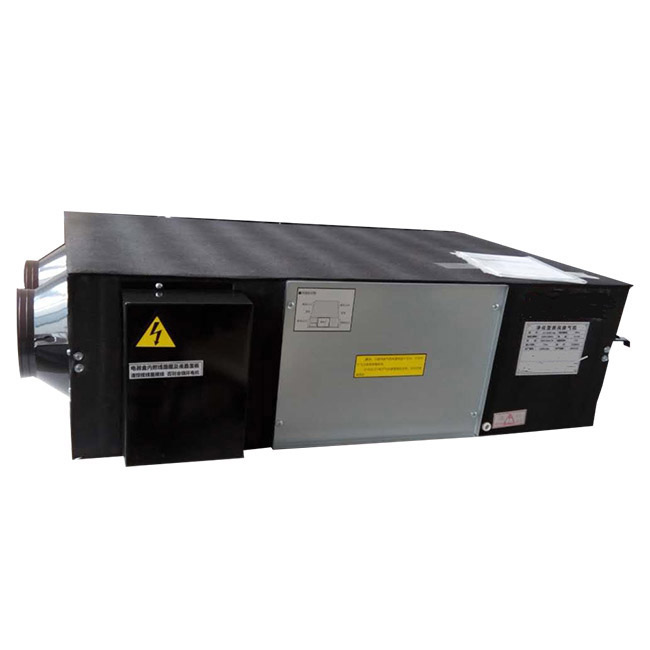

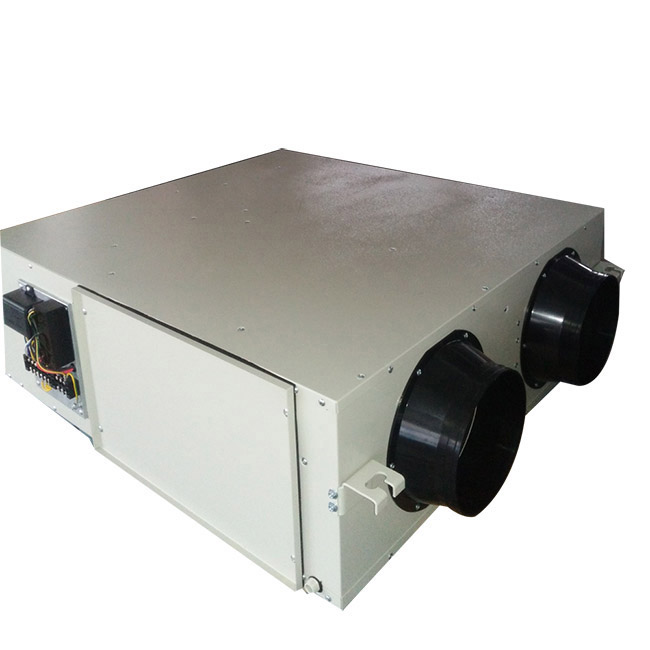

Sensible Heat Exchange Ventilator(800~16000m³/h)

In case you do not find the type or model in the website We can customized according to your request.
Contact Now
  • Features
  • Technical Data
  • Application
  • Certification
  • Part List
  • Reference
Feature:
1.  Wide range of application: The air volume range is 8000 ~ 16000 m³ / h, suitable for residential, Internet cafes, computer rooms, conference rooms, offices, hotels, hotels, test rooms, chess and card rooms, fitness clubs, basements and other civil air-conditioning occasions and some odor, Dust, bacteria, viruses and other industrial environments;
2.  Energy recovery: built-in cross-flow metal heat exchange core, mainly made of hydrophilic aluminum foil material, five-layer crimp sealing process, long life and high temperature conductivity, no secondary pollution due to exhaust gas penetration;
3.  Easy installation: The equipment is installed in the ceiling, does not occupy the effective space in the room, does not affect the indoor decoration effect, and is convenient for design and installation;
4.  Complete functions: In addition to the basic functions such as two-way ventilation, air purification, and energy recovery, the unit also has a bypass function, two-speed adjustment function, and an optional intelligent control system.

Introduction:

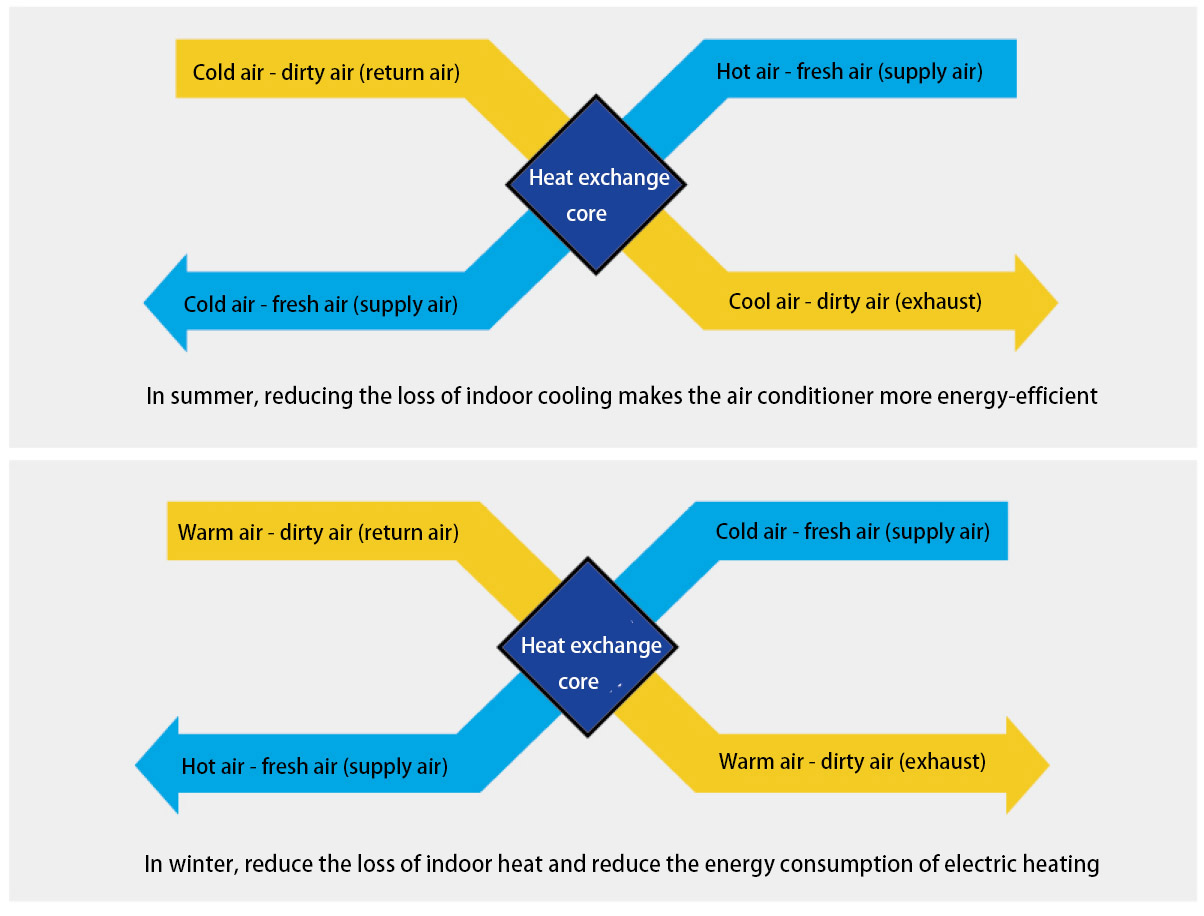

1. Energy recovery:
High-quality sensible heat exchange core, excellent heat recovery efficiency, provide comfortable temperature air while recovering energy to save energy, and realize the concept of green and environmentally friendly ventilation.


2. Ventilation:
After the outdoor fresh air is filtered through the initial effect and sent into the room, the indoor dirty air is discharged outside, completely improving the indoor quality and improving the quality of life.

3. Intelligent control:
The device can be equipped with a wifi intelligent LCD controller to realize wireless remote control of the unit. A variety of functions can be completed with one key. The control is convenient and fast. A variety of LCD controllers are optional, intelligent and user-friendly.

4. Quiet power saving:
Optimized structural design, built-in low-noise centrifugal fan for fresh air. The interior of the chassis is covered with highly efficient sound-absorbing materials, with a completely silent design, which is humanized.

5. Bypass function:
A bypass function can be added to use the bypass channel to enjoy outdoor fresh air during the transition season or when the outdoor air is more comfortable, while extending the life of the heat exchanger.

Model

Supply
power(V/HZ)

Air volume
(m³/h)

Static pressure(Pa)

Input power(W)

Temperature efficiency(%)

Noise(dB)

Weight(Kg)

H-80W

380V 50Hz

8000

250

5080

73

68

553

H-120W

12000

130

7295

74

69

755

H-140W

14000

170

8900

72

68

867

H-160W

16000

250

10160

72

69

993

H-80L

8000

270

5080

73

68

541

H-120L

12000

140

7295

74

69

745

H-140L

14000

160

8900

72

68

842

H-160L

16000

270

10160

72

69

958
