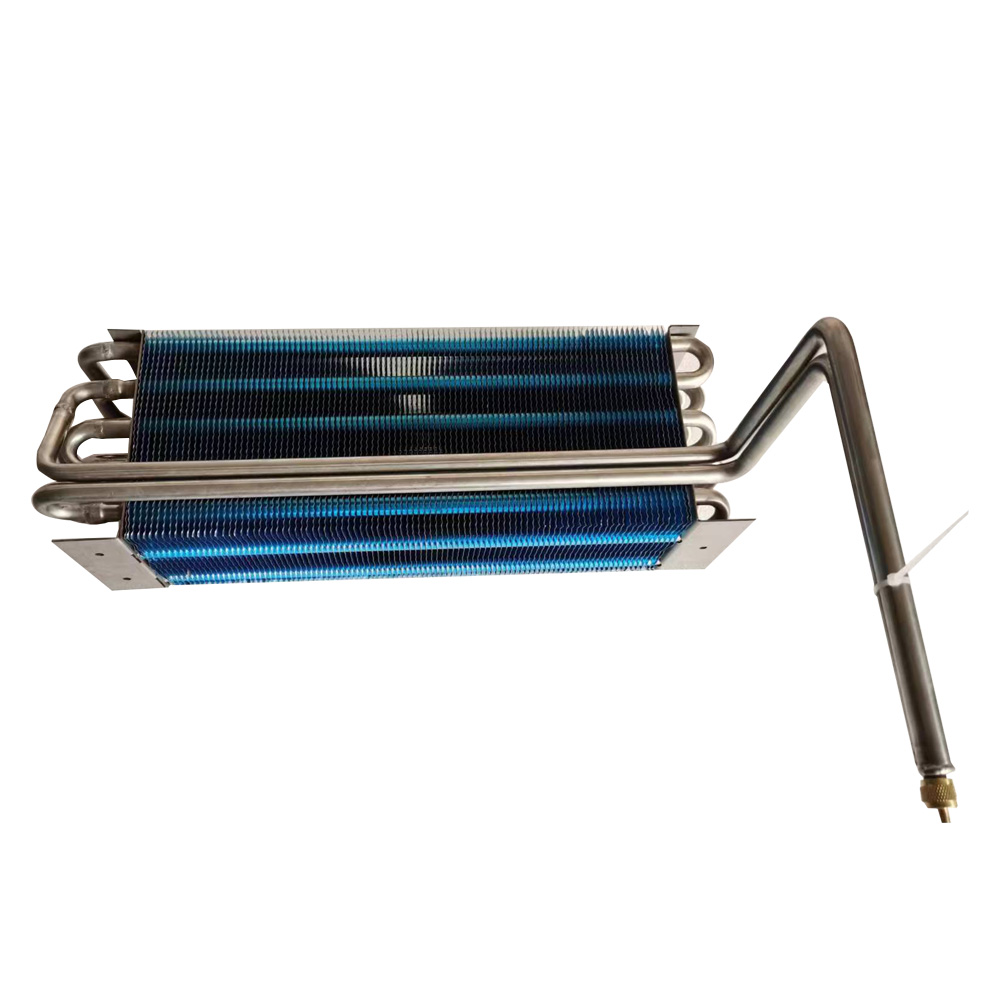

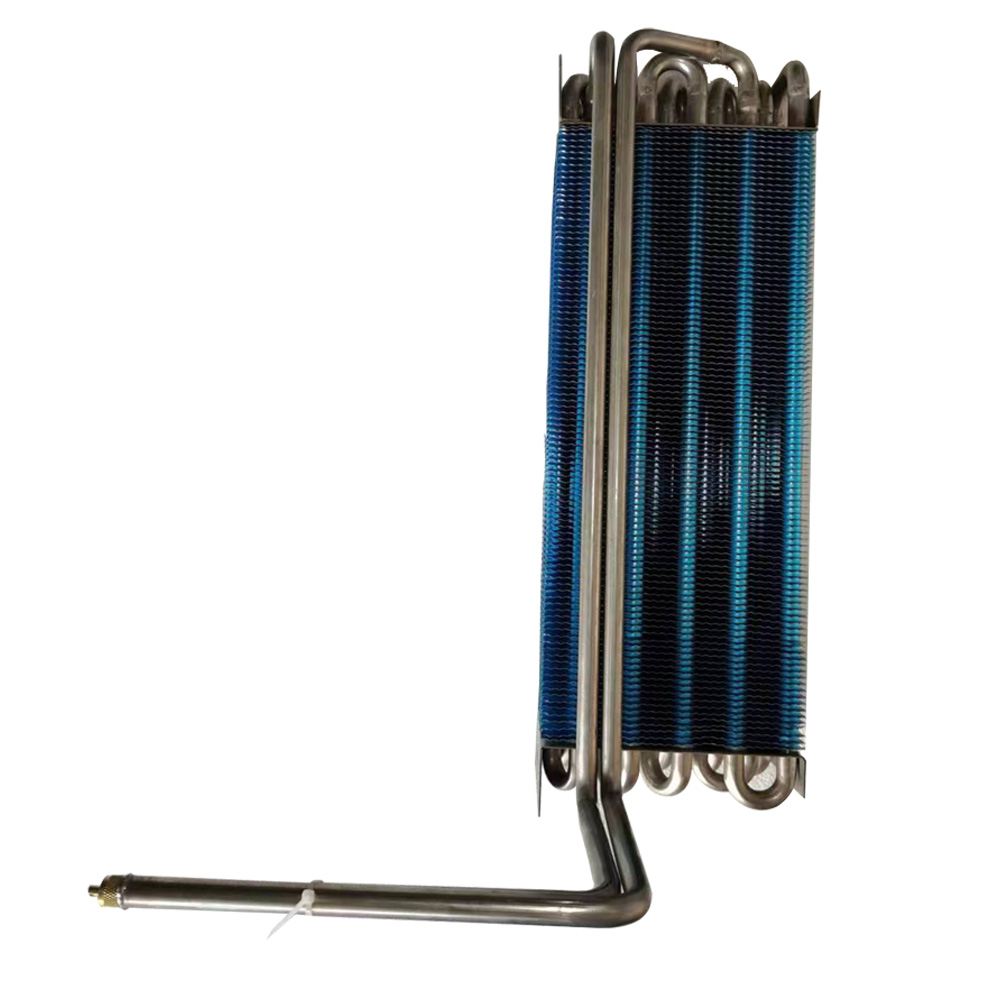

Stainless Tube & Aluminum Fins Condenser

In case you do not find the type or model in the website We can customized according to your request.
Contact Now

TEL:0086-21-35324169
FAX:0086-21-35324166
Email:sales@shenglintec.com
WhatsApp:0086 13916147965
Mob:0086 13916147965

Features
Technical Data
Application
Certification
Part List
Reference

Stainless steel condensers are widely used in various industrial fields due to their excellent performance and characteristics. They have good corrosion resistance and can resist various chemical substances, especially acid, alkali and other corrosive substances. In addition, they have high heat transfer efficiency, allowing for quick cooling of the medium. With a compact structure, they occupy less space and are suitable for installation in smaller areas. Moreover, they are environmentally friendly and do not cause pollution to the environment. Overall, stainless steel condensers are a reliable and efficient choice for many industrial applications.

About Shenglin:

Shenglin is a leading design and manufacturing company specialized in Tube Fin Heat Exchangers.

Our skilled engineers utilize Italy's state-of-the-art Mcoil thermal calculation software to create high-quality heat exchangers. Their expertise enables us to produce accurate drawings and performance calculation documents.

In terms of production, our advanced facilities house multiple dedicated production lines for finned tube heat exchangers.

Our sheet metal production lines are equipped with cutting-edge laser cutting machines, CNC punch presses, CNC bending machines, and stretching hydraulic devices for guide rings. Furthermore, our tube-expanding equipment includes both mechanical and hydraulic tube expanders. Shenglin utilizes gas welding and argon arc welding methods, as well as offering spray coating and electrophoretic processes to meet the unique requirements of our customers.
Quality is paramount at Shenglin. Our Tube Fin Heat Exchangers adhere to the highest standards and carry international certifications such as Rohs, CE, and UL, which are widely recognized worldwide.

Material：

Copper Tube	Aluminum Tube	Bare Fin	Copper Fin	Hydrophilic aluminum fin	Anti-corrosion aluminum foil

Bare tube, inner grooved tube	Bare tube, inner grooved tube	For normal use like freezing and refrigeration	For industrial equipment,subway and train air conditioning	For indoor and transport air conditioning evaporators	For medical, chemical and marine climate.

Fin Pattern:

Tube Diamater	Hole Space(mm)	Row Space(mm)	Fin Space(mm)	Tube Material	Fin Material
ɸ5	19.05	11.6	1.1~2	Cu	Cu, AL
ɸ5	21	18.2	1.25~3	Cu	Cu, AL
ɸ6	13.5	10	1.3~2	AL	AL
ɸ7	25	21.65	1.4~3.0	AL	Cu, AL
ɸ7	21	18.2	1.2~3.0	Cu, AL	Cu, AL
ɸ7	21	12.7	1.3~2	Cu, SS, AL	Cu, AL
ɸ7	20.5	12.7	1.5~2	Cu	Cu, AL
ɸ7	19.05	12.7	1.3~3	Cu	AL
ɸ7	19.05	16.5	1.4~1.8	Cu	Cu, AL
ɸ7	17.6	13.2	1.3~2.5	Cu	Cu, AL
ɸ7.94	25.4	15.88	1.6~4	Cu, AL	Cu, AL
ɸ7.94	25.4	22	1.4~2.5	Cu	Cu, AL
ɸ7.94	25.4	19.05	1.2~3.3	Cu	Cu, AL
ɸ7.94	25	21.65	1.8~2.2	Cu	Cu, AL
ɸ7.94	22	19.05	1.6~2.3	Cu	Cu, AL
ɸ7.94	20.5	17.5	1.3~2	Cu	Cu, AL
ɸ9.52	31.75	27.5	2~7	Cu	Cu, AL
ɸ9.52	30	30	3~5	Cu	Cu, AL
ɸ9.52	25.4	22	1.7~5.0	Cu, SS	Cu, AL
ɸ9.52	25.4	19.05	1.2~2.5	Cu	Cu, AL
ɸ9.52	25.4	12.7	1.3~2	Cu, AL	Cu, AL
ɸ9.52	25.4	15.88	1.3~3	AL	AL
ɸ9.52	25	21.65	1.6~5.5	Cu, SS, AL	Cu, AL
ɸ9.52	25	25	2.5~4.2	Cu	Cu, AL
ɸ9.52	25	12.5	1.3~3	AL	AL
ɸ9.52	19.05	16.5	1.3~4	Cu, AL	Cu, AL
ɸ12	70	20	6~9	Cu	Cu, AL
ɸ12	50	25	1.8~7	Cu, SS	Cu, AL
ɸ12.7	75	25	8~10	Cu	Cu, AL
ɸ12.7	60	30	8~10	Cu	Cu, AL
ɸ12.7	50	50	2.8~6.0	Cu	Cu, AL
ɸ12.7	48	48	4.5~9	Cu	Cu, AL
ɸ12.7	40.5	35	4.5~12	Cu	Cu, AL
ɸ12.7	38.1	33	1.6~4.0	Cu	Cu, AL
ɸ12.7	35	30.3	1.8~3.1	Cu	Cu, AL
ɸ12.7	31.75	27.5	1.6~5	Cu, SS, AL	Cu, AL
ɸ14.5	52	45	4.5~7	Cu	Cu, AL
ɸ15.88	75	25	8~10	Cu	Cu, AL
ɸ15.88	60	30	8~10	Cu	Cu, AL
ɸ15.88	60	52	7~9	Cu	Cu, AL
ɸ15.88	50	50	2.5~12	Cu, SS, Ti, Cu-Ni	Cu, AL
ɸ15.88	38.1	33	1.6~5.0	Cu, SS, AL, Ti, Cu-Ni	Cu, AL
ɸ18	65	65	6~30	Cu, SS, AL, CS	CS, AL
ɸ25	75	65	6~30	Cu, SS, AL, CS	CS, AL
