Fin Condenser

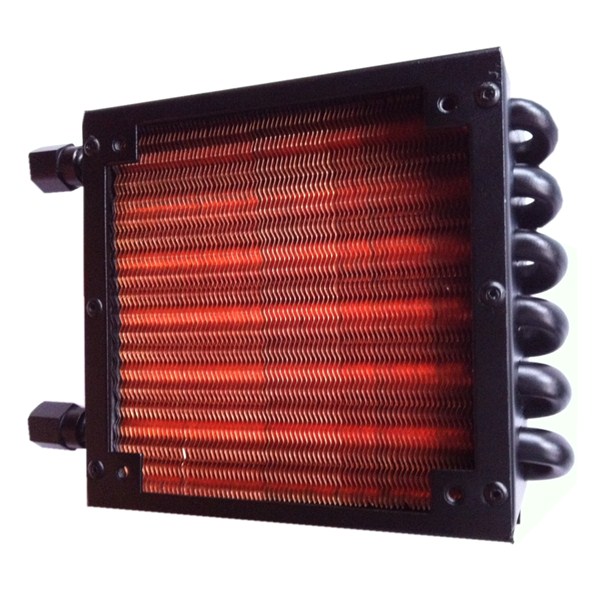

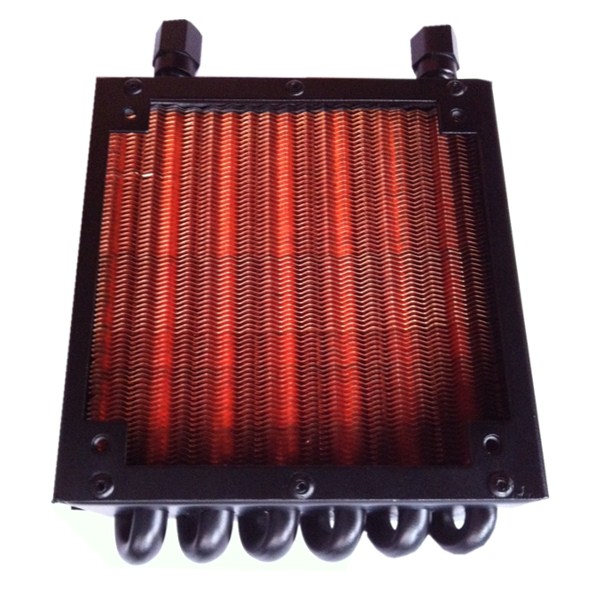

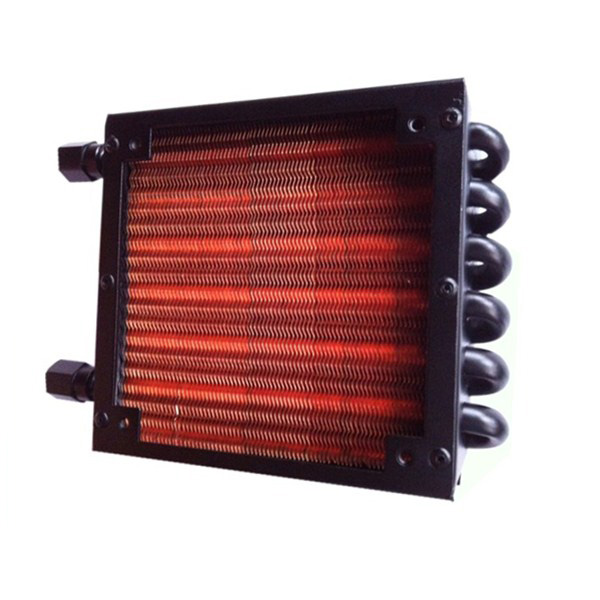

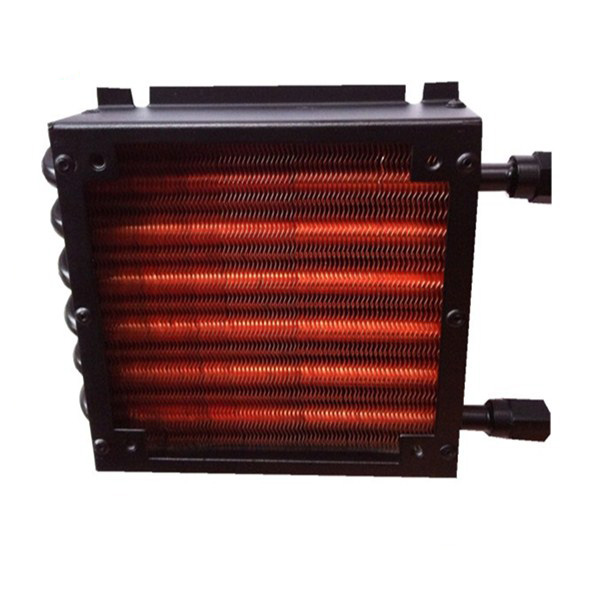

Stainless Tube & Copper Fins Condenser
  • Stainless Tube & Copper Fins Condenser
  • Stainless Tube & Copper Fins Condenser
  • Stainless Tube & Copper Fins Condenser
  • Stainless Tube & Copper Fins Condenser

Stainless Tube & Copper Fins Condenser

In case you do not find the type or model in the website We can customized according to your request.
Contact Now
  • Features
  • Technical Data
  • Application
  • Certification
  • Part List
  • Reference

Material:

Tube: 3/8" stainless steel.
Fin: copper.
Fan plate: aluminum.

 It is ideal for applications where deionized water or corrosive fluids are used, and a high efficiency, compact unit is required.


About Shenglin:
    Shenglin is a leading design and manufacturing company specialized in Tube Fin Heat Exchangers.
    Our skilled engineers utilize Italy's state-of-the-art Mcoil thermal calculation software to create high-quality heat exchangers. Their expertise enables us to produce accurate drawings and performance calculation documents.
    In terms of production, our advanced facilities house multiple dedicated production lines for finned tube heat exchangers.
    Our sheet metal production lines are equipped with cutting-edge laser cutting machines, CNC punch presses, CNC bending machines, and stretching hydraulic devices for guide rings. Furthermore, our tube-expanding equipment includes both mechanical and hydraulic tube expanders. Shenglin utilizes gas welding and argon arc welding methods, as well as offering spray coating and electrophoretic processes to meet the unique requirements of our customers.
   Quality is paramount at Shenglin. Our Tube Fin Heat Exchangers adhere to the highest standards and carry international certifications such as Rohs, CE, and UL, which are widely recognized worldwide.

Equal to Lytron 4000 Series highest performing stainless steel tube-fin heat exchangers, ideal for applications where deionized water or corrosive fluids are used and a high efficiency, compact unit is required.

When high performance in a small envelope is required, the Lytron 4000 Series is the best option. Heavy-walled, seamless stainless steel tubes are expanded into copper fin with an extruded full collar. The copper fin and the excellent metal-to-metal contact between the tube and the fin collar ensure optimum thermal performance.

All wetted surfaces are 316L stainless steel, making them ideal for high purity and/or corrosive coolants such as deionized water. The welded stainless steel frame and fan plate offer durability and strength.

Equal to Lytron 4000 Series heat exchangers, the wall thickness is 0.7 mm, and are 100% leak tested to 10.3 bar. The integrated fan plate acts as a plenum to ensure uniform air-flow distribution through the core, thus maximizing performance. It also enables easy fan installation.

4000 Series style heat exchangers can be manufactured in custom sizes and tube configurations to meet your thermal and mechanical specifications. Inlet/outlet positions, fittings, paints and other coatings are available. Assemblies including fans and other components can also be supplied.



Heat exchanger for South Korea laser machine factory:




Radiator for Spain laser machine factory:




Military & Aerospace; Medical; Industrial; Lasers; Medical Imaging; Analytical Instrumentation; Power Electronics; Semiconductor Equipment; Machine Tools; Telecommunications

Fin heat exchanger application

1: Used in AHU(air handlign unit)

2: Used in air source heat pump

3: Used in FCU(fan coil unit)

4: Used in ice maker

空调箱应用

热泵应用

风机盘管应用

制冰机应用

5: Used in household split air conditioner

6: Used in cabinet

7: Used in air cooled chiller.

8: Used in dehumidifier.

家用空调应用

机柜应用

冷水机应用

除湿机应用









9: Used in beauty laser equipment.

10: Used in bus air conditioner.

11: Used in air cooled condensing unit.

12: Used in island counter or deep freezer

激光美容仪应用

大巴空调应用

冷凝机组应用

岛柜应用
