Data Centre Coolant
Low Viscosity Immersion Coolant
In case you do not find the type or model in the website
We can customized according to your request.
Contact Now
Contact Now
- TEL:0086-21-35324169
- FAX:0086-21-35324166
- Email:sales@shenglintec.com
- WhatsApp:0086 13916147965
- Mob:0086 13916147965
Product Description
Low Viscosity Immersion Coolant is made of hydrocarbon and other materials. This product can be used directly.
Features and Usages
• Excellent electrical insulation performance, to ensure the safety performance of data centres and energy storage power stations, voltage resistance up to 40KV or more;
• Excellent thermal conductivity, low kinematic viscosity, good fluidity performance, to improve the level of immersion temperature control system temperature control;
• High flash point to ensure that the battery will not burn when the temperature is too high, to improve the safety of data centres and energy storage power stations;
• Excellent metal anti-corrosion performance and non-metallic compatibility, extending the service life of the immersion temperature control system;
• Excellent anti-freezing performance, preventing equipment damage caused by liquid freezing and expansion;
• Meet the requirements of EU RoHS, REACH and other regulations.
|
PROPERTIES
|
TYPICAL DATA
|
TEST METHOD
|
|
Appearance
|
Clear and transparent,
no sediment and suspension
|
Visual estimation
|
|
Density（25℃），g/cm3
|
0.792 |
GB/T 1884
|
|
Kinematic viscosity（40℃）
/（mm2/s） |
4.96 |
GB/T 265
|
|
Pour point/℃
|
-65 |
GB/T 3535
|
|
Flash point (opening)/℃
|
182.5 |
GB/T 3536
|
|
Ignition point/℃
|
191.2 |
GB/T 3536
|
|
Breakdown voltage （2.5mm）/kV
|
41.7 |
GB/T 507
|
|
Volume resistivity（60℃），Ω·m
|
6.78*10^14 |
DL/T 421
|
|
Relative dielectric constant（90℃）
|
1.984 |
GB/T 5654
|
|
Dielectric loss factor
|
0.006 |
GB/T 5654
|
|
Acid value/ mg/g KOH
|
0.015 |
GB/T 264
|
|
Copper corrosion（100℃，3h）
|
1b |
GB/T 5096
|
|
Thermal conductivity（40℃,W/m.K）
|
0.1335 |
ASTM D2717
|
|
Specific heat capacity（40℃,J/g.K）
|
2.05 |
ASTM E2716
|
|
Density correction factor（(g/cm3)/℃）
|
0.000673 |
ASTM D1250
|
|
Vapour pressure（150℃，mm/Hg）
|
18 |
ASTM D2879
|

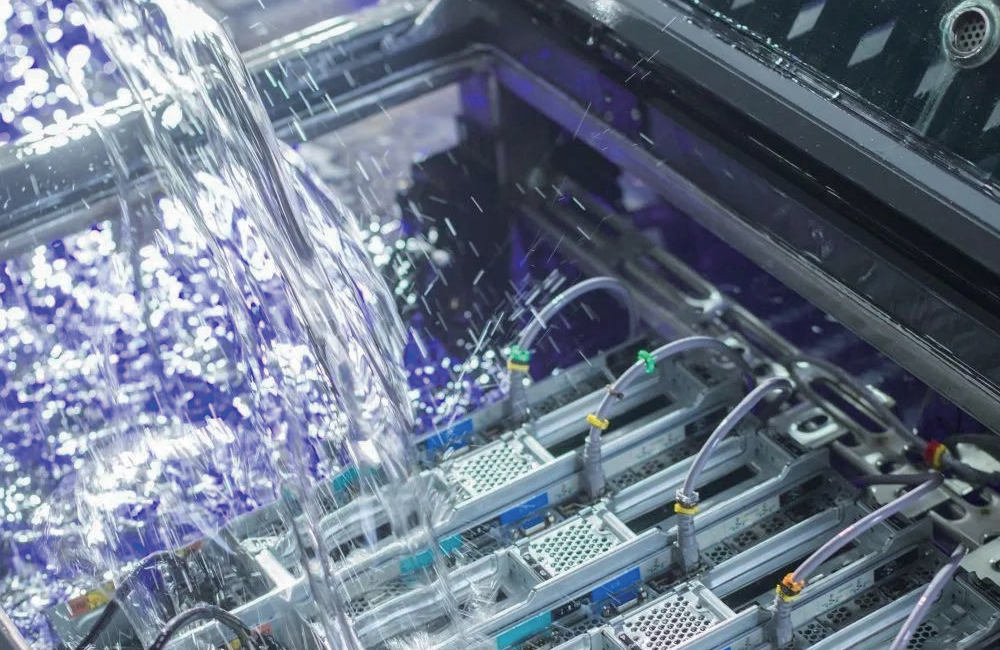

Temperature control systems for immersed data centres and immersed energy storage batteries.
