Data Centre Coolant
Immersion Dielectric Liquid
In case you do not find the type or model in the website
We can customized according to your request.
Contact Now
Contact Now
- TEL:0086-21-35324169
- FAX:0086-21-35324166
- Email:sales@shenglintec.com
- WhatsApp:0086 13916147965
- Mob:0086 13916147965
Product Description
Immersion Dielectric Liquid is made of safe and environmentally friendly new materials. It is made of safe and environmentally friendly new materials. It is a pre-diluted coolant and can be used directly.
Features and Usages
• Excellent electrical insulation performance, to ensure the safety performance of data centres and energy storage power stations, withstanding voltage up to 50KV or more;
• Excellent thermal conductivity to enhance the temperature control level of immersion temperature control system;
• Excellent metal corrosion resistance and non-metallic compatibility, prolonging the service life of the submerged temperature control system;
• Excellent anti-freezing performance to prevent equipment damage caused by liquid freezing and expansion;
• Excellent non-toxic environmental performance;
• Meet the requirements of EU RoHS, REACH and other regulations.
|
PROPERTIES
|
TYPICAL DATA
|
TEST METHOD
|
|
Appearance
|
Clear and transparent,
no sediment and suspension
|
Visual estimation
|
|
Kinematic viscosity(40℃)
/ mm2/s |
37.85 |
GB/T 265
|
|
Density(20℃)/ kg/m3
|
963.7 |
GB/T 1884
|
|
Acid value/ mgKOH/g
|
<0.01 |
GB/T 264
|
|
Flash point/ ℃
|
320 |
GB/T 3536
|
|
Ignition point/ ℃
|
354 |
GB/T 3536
|
|
Pour point/ ℃
|
<-50 |
GB/T 3535
|
|
Copper corrosion(100℃,3h)
/ class |
1b |
GB/T 5096
|
|
Water-soluble acid
or alkali None |
none |
GB/T 259
|
|
Volume resistivity(20℃)
/ Ω·m |
9.5*10^11 |
DL/T 421
|
|
Breakdown voltage（2.5mm）/kV
|
75 |
GB/T 507
|
|
Dielectric loss factor(90℃)
|
0.0001 |
GB/T 5654
|
|
Moisture/ mg/kg
|
143 |
GB/T 7600
|
|
Particle size in oil(>5m)
/ counts/100mL |
2925 |
DL/T 432
|
|
Thermal conductivity（40℃,W/mK）
|
0.1545 |
ASTM D2717
|
|
Specific heat capacity（40℃,J/gK）
|
1.91 |
ASTM E2716
|

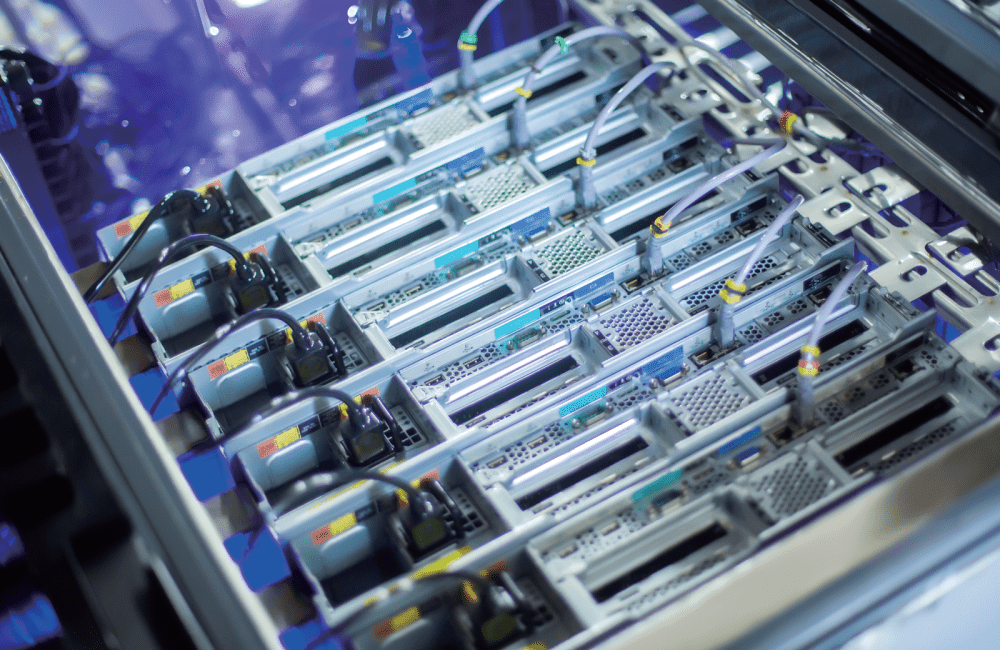

Temperature control systems for immersed data centres and immersed energy storage batteries.
