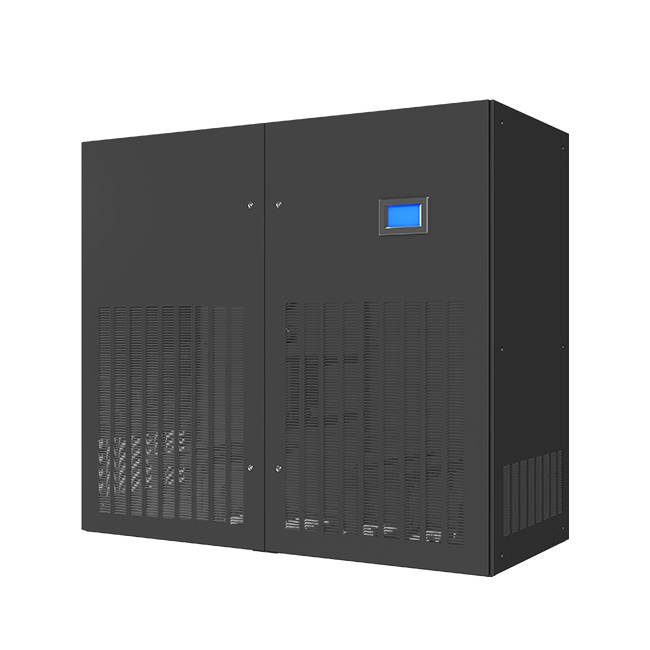

CMF Room-Based Aircon (Refrigerant pump)

In case you do not find the type or model in the website We can customized according to your request.
Contact Now

TEL:0086-21-35324169
FAX:0086-21-35324166
Email:sales@shenglintec.com
WhatsApp:0086 13916147965
Mob:0086 13916147965

Features
Technical Data
Application
Certification
Part List
Reference

CMF Room-Based Air Conditioner (Refrigerant pump) can use an atmospheric natural cold source for cooling the computer room. The natural cooling efficiency of the CMF refrigerant pump is 10 times that of mechanical refrigeration mode at low ambient, which can effectively reduce the PUE value of the room.

CMF Room-Based Aircon (Refrigerant pump)
Indoor unit model	CMF3030	CMF3040	CMF3050	CMF4060	CMF4080	CMF4100
Main power supply	380V3Ph~50Hz
Air supply	Up/Down
Performance parameter
Cooling capacity(kW)	30	40	50	60	80	100
Sensible capacity(kW)	27	36	45	54	72	93
Max. operation current FLA(A)	40.5	58.3	58.3	80.9	116.6	116.6
Compressor QTY	1	1	1	2	2	2
Fan type	EC centrifugal fan
Fan QTY	1	1	1	2	2	2
Circulating air volume(m³/h)	8000	11500	12500	16000	23000	27000
Heating capacity(kW)	6	9	9	9	15	15
Humidification(kg/h)	6	6	6	10	10	10
Connecting pipe size(30m)
Liquid pipe(mm)	16	22	22	16	22	22
Gas pipe(mm)	22	28	28	22	28	28
Humidification inlet pipe(Internalthread)	G1/2"
Drain pipe	Inner diameter 19mm, outer diameter 25mm, Metal hose clamp connection
Unit dimension and weight
Dimension-W(mm)	780	1130	1130	1530	2230	2230
Dimension-D(mm)	996
Dimension-H(mm)	1975
Weight(kg)	285	450	450	690	880	880
Outdoor unit configuration (Outdoor Temp.45℃
Flat-plate outdoor unit model	CMT050SP	CMT066SP	CMTO88SP	CMT050SP*2	CMT066SP*2	CMT088SP*2
Centralized outdoor unit model	CMT050FP	CMT066FP	CMT088FP	CMT099FD	CMT132FD	CMT176FD
Electronic element specification
Air switch recommended(A)	50	100	100	100	125	125
Outdoor power cable diameter	410.0+110.0	416.0+116.0		425.0+116.0	435.0+116.0
Note: 1. Standard working conditions: indoor ambient temperature 24℃, RH 50%, outdoor ambient temperature 35℃, ESP=100Pa; 2. Only cooling or constant temperature and humidity type can be selected. The maximum working current and the recommended air switch are configured according to the constant temperature and humidity unit. 3. If you want to choose the pump cabinet and for more details, please contact us.

Application: data center, communication equipment and computer room, electronic instrument workshop, museum,archives. high-grade wine cellar, medical equipment room, constant temperature and humidity laboratorv. etc.

Country: Indonesia Application:data center Cooling capacity: 36.7kW EER: 3.96 Air volume: 12750m3/h Refrigerant: R410A Power supply: 380V/3P/50Hz	Country: Philippines Application: MRI room in hospital Cooling capacity: 29.8kW Electric heating: 11kW Air volume: 7500m3/h Refrigerant: R407C Power supply: 400V/3P/60Hz Downflow air supply	Country: USA Application: Data center cooling Cooling capacity: 18kW Air volume: 4100m3/h Refrigerant: R410A Power supply: 400V/3P/60Hz Remote control

Country: Tajikistan Application: data base station Cooling capacity: 13.1kW Air volume: 2400m3/h Refrigerant: R407C Power supply: 380V/3P/50Hz	Country:China Application: wind farm Cooling capacity: 50kW Air volume: 12000m3/h Refrigerant: R22 Power supply: 380V/3P/50Hz
