Centrifugal Chiller

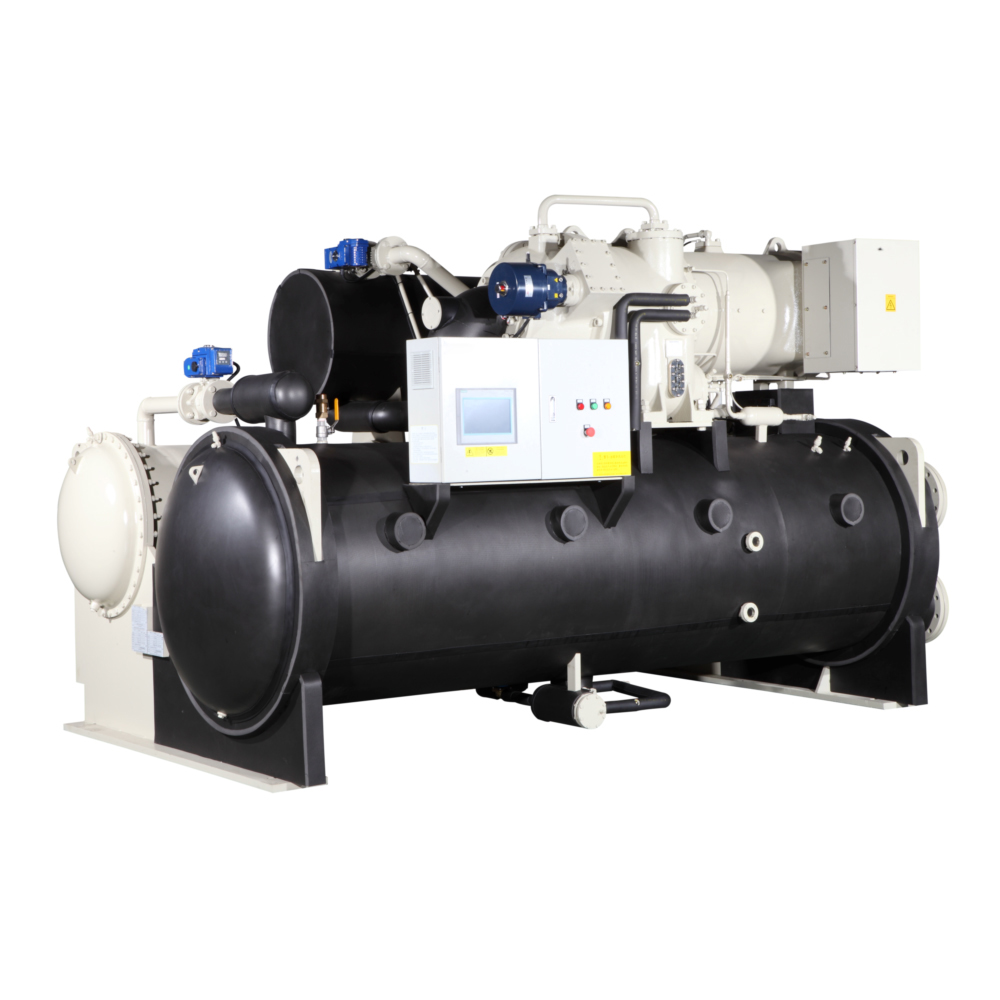

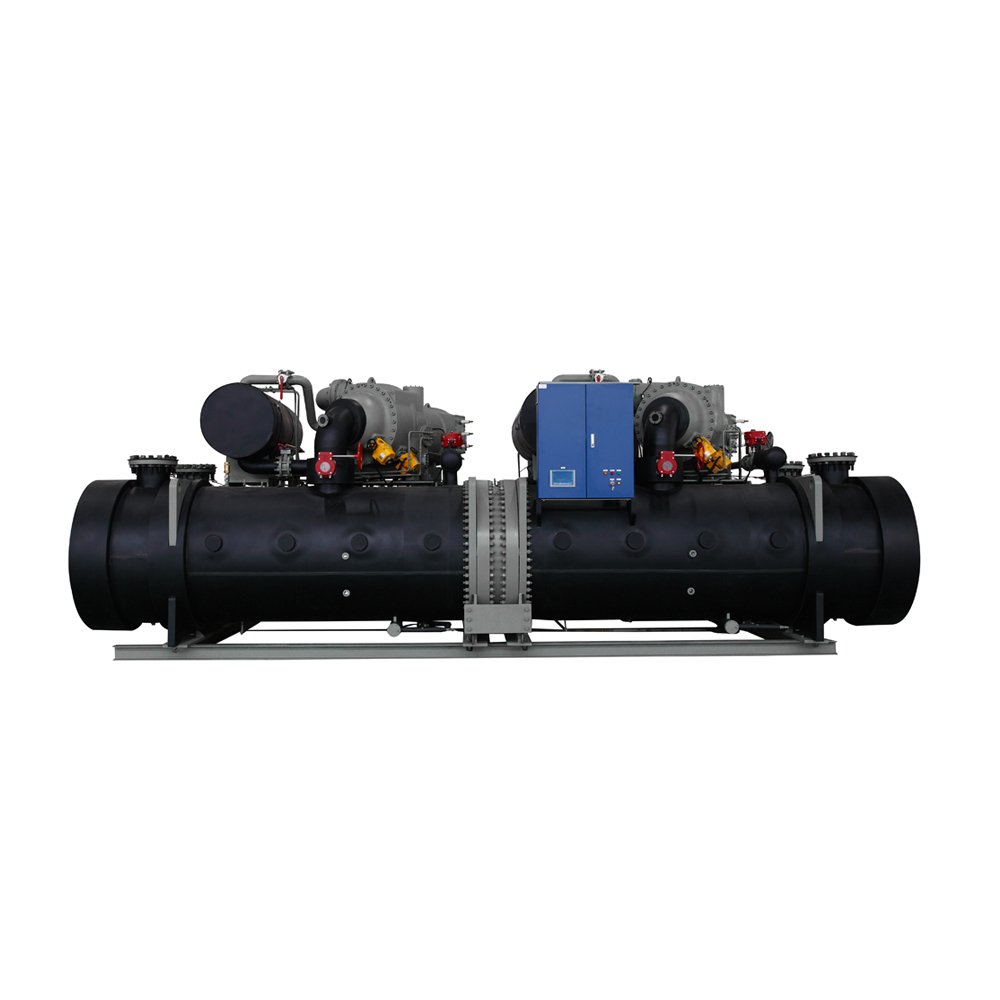

SL Water Cooled Twin Compressor Centrifugal Type Chiller
  • SL Water Cooled Twin Compressor Centrifugal Type Chiller
  • SL Water Cooled Twin Compressor Centrifugal Type Chiller
  • SL Water Cooled Twin Compressor Centrifugal Type Chiller
  • SL Water Cooled Twin Compressor Centrifugal Type Chiller

SL Water Cooled Twin Compressor Centrifugal Type Chiller

In case you do not find the type or model in the website We can customized according to your request.
Contact Now
  • Features
  • Technical Data
  • Application
  • Certification
  • Part List
  • Reference
Unit characteristics
1. R134a refrigerant is used. R134a is HFC working fluid, which is an internationally recognized environmentally friendly refrigerant.
2. R134a is a positive pressure refrigerant, no need for exhaust, and the ventilation design of the machine room is simple.
3. Use Hanbell two-stage centrifugal compressor.
4. Use high-efficiency falling film type (spray type) evaporator.
5. The unit built-in oil cooler, cooling with refrigerant, no maintenance.
6. Use an independent oil return system (injection pump to return oil), and ensure oil return in time under any load.
7. The oil pump is built in the compressor oil tank of the unit, so the oil pump has no leakage.
8. The unit adopts a fixed orifice plate throttling device and has no moving parts. Under variable load and variable working conditions, the refrigerant flow can be adjusted in time without hysteresis to ensure stable operation of the unit.
9. The unit-specific microcomputer control system uses the English screen to clearly display the various operating data, and the operation is extremely convenient.

Chiller performance parameter table (single machine)

Model  SLC-

500

550

600

650

700

Cooling capacity

kW

1760

1965

2130

2324

2497

Input power

kW

288

320

348

381

406

Full load efficiency COP

kW/kW

6.11

6.14

6.12

6.10

6.15



kW/RT

0.58

0.57

0.57

0.58

0.57

Condenser













Water flow

m3/h

352

393

426

465

499

Water pressure drop

kPa

66

66

76

76

76

Inlet and outlet pipe interface

DN

250

250

250

250

250

Evaporator













Water flow

m3/h

303

338

366

400

429

Water pressure drop

kPa

60

60

72

72

72

Inlet and outlet pipe interface

DN

250

250

250

250

250

Dimensions













A(L)

mm

3920

3920

4120

4120

4120

B(W)

mm

2320

2320

2380

2380

2380

C(H)

mm

2450

2450

2500

2500

2500

Installation dimension













D

mm

2944

2944

3144

3144

3144

E

mm

1800

1800

1800

1800

1800

Shipping weight

kg

9100

9600

10100

10600

11200

Operating weight

kg

10050

10550

11100

11700

12350

Refrigerant filling

kg

450

495

540

585

630



Model  SLC-

800

900

1000

1100

Cooling capacity

kW

2858

3224

3575

3953

Input power

kW

467

526

586

647

Full load efficiency COP

kW/kW

6.12

6.13

6.10

6.11



kW/RT

0.57

0.57

0.58

0.58

Condenser











Water flow

m3/h

572

645

716

791

Water pressure drop

kPa

95

95

95

98

Inlet and outlet pipe interface

DN

300

300

300

350

Evaporator











Water flow

m3/h

492

555

615

680

Water pressure drop

kPa

90

90

90

95

Inlet and outlet pipe interface

DN

300

300

300

350

Dimensions











A(L)

mm

4570

4570

4570

4780

B(W)

mm

2550

2550

2550

2800

C(H)

mm

2900

2900

2900

2950

Installation dimension











D

mm

3384

3384

3384

3384

E

mm

2000

2000

2000

2300

Shipping weight

kg

11800

12500

13200

14500

Operating weight

kg

13100

14000

14800

16350

Refrigerant filling

kg

720

810

900

990


Model  SLC-

1200

1300

1400

1500

Cooling capacity

kW

4323

4665

4925

5274

Input power

kW

704

761

805

863

Full load efficiency COP

kW/kW

6.14

6.13

6.12

6.11



kW/RT

0.57

0.57

0.57

0.58

Condenser











Water flow

m3/h

865

933

986

1056

Water pressure drop

kPa

98

98

98

98

Inlet and outlet pipe interface

DN

350

350

350

350

Evaporator











Water flow

m3/h

743

802

847

907

Water pressure drop

kPa

95

95

95

95

Inlet and outlet pipe interface

DN

350

350

350

350

Dimensions











A(L)

mm

4780

4780

4780

4780

B(W)

mm

2800

2800

2800

2800

C(H)

mm

2950

2950

2950

2950

Installation dimension











D

mm

3384

3384

3384

3384

E

mm

2300

2300

2300

2300

Shipping weight

kg

15500

16500

18000

19500

Operating weight

kg

17500

18600

20000

21500

Refrigerant filling

kg

1080

1170

1260

1350


1. Operating condition
Evaporator: inlet water temperature 12℃, outlet water temperature 7℃
Condenser:inlet water temperature 30℃, outlet water temperature 35℃
When the operating conditions of the client group change, please refer to the variable working condition graph.
2. The condenser and evaporator connections are flanged
3. Suitable refrigerant: R134a
4. Applicable voltage level: low voltage: 3φ-380V-50Hz,3φ-460V-50Hz
high voltage: 3φ-6KV-50Hz,3φ-10KV-50Hz
5. Standard pressure on the water side of the unit 1.0MPa
6. Unit conversion:1RT(USA tons)=3.517kW
Mainly used in air conditioning, refrigeration, industrial cooling, constant temperature
Reference

Country: Indonesia
Application: palm oil production process
Cooling capacity: 2,700RT
Product:Oil-free magnetic suspension centrifugal chiller
