Centrifugal Chiller

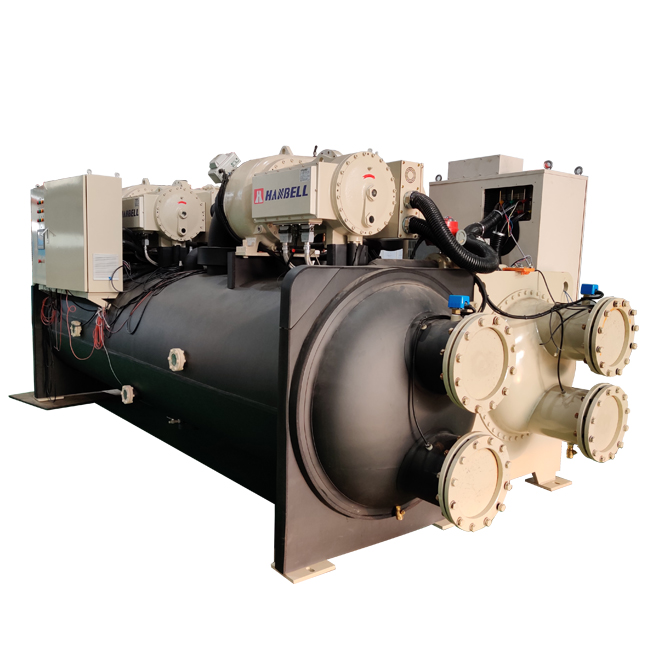

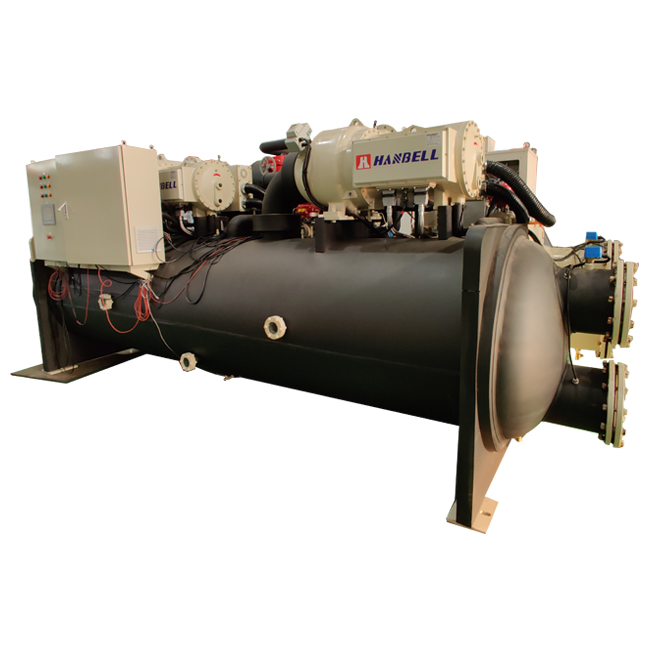

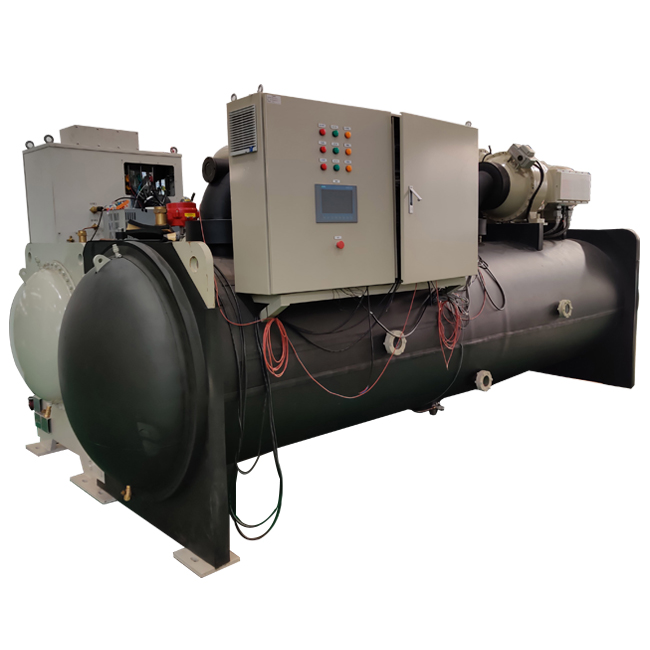

Oil Free Magnetic Centrifugal Water Cooled Chillers
  • Oil Free Magnetic Centrifugal Water Cooled Chillers
  • Oil Free Magnetic Centrifugal Water Cooled Chillers
  • Oil Free Magnetic Centrifugal Water Cooled Chillers
  • Oil Free Magnetic Centrifugal Water Cooled Chillers

Oil Free Magnetic Centrifugal Water Cooled Chillers

In case you do not find the type or model in the website We can customized according to your request.
Contact Now
  • Features
  • Technical Data
  • Application
  • Certification
  • Part List
  • Reference
Features
1 Using R134a refrigerant which is a HFC working medium, and it is an internationally recognized environment-friendly refrigerant.
2 Using Hanbell two-stage magnetic centrifugal compressor with excellence performance in its industrial
3 Using high efficiency permanent magnet synchronous motor whose efficiency reaches 97%
4 Using high efficiency airborne liquid cooled inverter whose harmonic distortion rate is less than 5%.
5 Using high efficiency falling film (spray type) evaporator, high efficiency shell-tube condenser.
6 Using compound orifice plate as flow control device so that the refrigerant flow rate can be adjusted in time without delay under variable load and conditions
7 System oil-free design, high efficiency and energy saving, without mechanical friction, and the running noise is less than 74dB (A).
8 Strong anti electromagnetic interference ability can meet the requirements of different fields.
9 Using SIEMENS intelligent control system which is safe, fast start up and easy to operate
The unit can configure the cloud remote monitoring system which can master the operation information of the unit at any time
Model coding

SL

CM

A

400

L

V

T




Technical data

Model  SLCM-

A400

A450

A500

Refrigerating capacity

kW

1406

1582

1758

Input power

kW

210

240

272

Full load efficiency COP

kW/kW

6.70

6.59

6.46



kW/RT

0.53

0.53

0.54

IPLV

kW/kW

11.58

11.58

11.58

Condenser









Water flow

m3/h

302

340

378

Water pressure drop

kPa

78

50

60

Inlet and outlet water pipe joint

DN

200

250

250

Evaporator









Water flow

m3/h

242

272

302

Water pressure drop

kPa

52

82

90

Inlet and outlet water pipe joint

DN

200

200

200

Outline Dimension









ALength

mm

4000

4570

4570

BWidth

mm

2250

2400

2400

CHeight

mm

2600

2600

2600

Installation dimension









D

mm

2944

3448

3448

E

mm

1700

1800

1800

Transport weight

kg

6000

7000

7500

Operation weight

kg

7000

8000

8500

Refrigerant filling

kg

360

400

450


Model   SLCM-

B800

B900

B1000

Refrigerating capacity

kW

2813

3164

3516

Input power

kW

420

480

544

Full load efficiency COP

kW/kW

6.70

6.59

6.46



kW/RT

0.53

0.53

0.54

IPLV

kW/kW

11.58

11.58

11.58

Condenser









Water flow

m3/h

605

680

756

Water pressure drop

kPa

65

80

85

Inlet and outlet water pipe joint

DN

300

300

300

Evaporator









Water flow

m3/h

484

544

605

Water pressure drop

kPa

50

65

70

Inlet and outlet water pipe joint

DN

300

300

300

Outline Dimension









ALength

mm

5500

5500

5500

BWidth

mm

2550

2550

2550

CHeight

mm

2650

2650

2650

Installation dimension









D

mm

4340

4340

4340

E

mm

2050

2050

2050

Transport weight

kg

11500

12500

13000

Operation weight

kg

13000

14000

14500

Refrigerant filling

kg

700

800

900


1. Operation condition(GB/T 18430.1-2007)
Evaporation:Water outlet temperature 7℃, Water flow:0.172 m³/(h*kw)
Condenser:Water inlet temperature 30℃, Water flow:0.215 m³/(h*kw)
IPLV data is based on AHRI standard
2. Both condenser and evaporator are connected by flange
3. Refrigerant:R134a
4. Voltage:3φ-380~460V-50Hz
5. Package standard lateral water pressure-bearing1.0MPa
6. Unit conversion:1RT=3.517kW
Mainly used in air conditioning, refrigeration, industrial cooling, constant temperature
Reference

Country: Indonesia
Application: palm oil production process
Cooling capacity: 2,700RT
Product:Oil-free magnetic suspension centrifugal chiller
