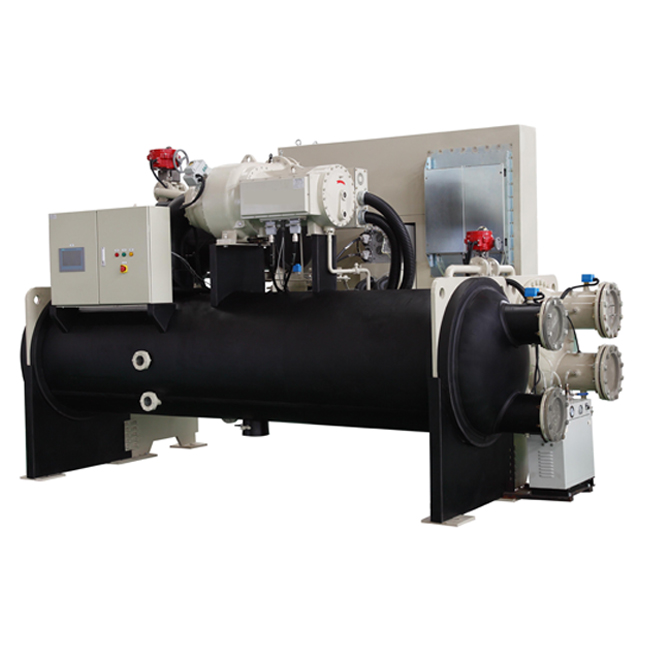

Variable Frequency Magnetic Centrifugal Chiller
Contact Now
- TEL:0086-21-35324169
- FAX:0086-21-35324166
- Email:sales@shenglintec.com
- WhatsApp:0086 13916147965
- Mob:0086 13916147965
1 Using R134a refrigerant which is a HFC working medium, and it is an internationally recognized environment-friendly refrigerant.
2 Using Hanbell two-stage magnetic centrifugal compressor with excellence performance in its industrial
3 Using high efficiency permanent magnet synchronous motor whose efficiency reaches 97%
4 Using high efficiency airborne liquid cooled inverter whose harmonic distortion rate is less than 5%.
5 Using high efficiency falling film (spray type) evaporator, high efficiency shell-tube condenser.
6 Using compound orifice plate as flow control device so that the refrigerant flow rate can be adjusted in time without delay under variable load and conditions
7 System oil-free design, high efficiency and energy saving, without mechanical friction, and the running noise is less than 74dB (A).
8 Strong anti electromagnetic interference ability can meet the requirements of different fields.
9 Using SIEMENS intelligent control system which is safe, fast start up and easy to operate
The unit can configure the cloud remote monitoring system which can master the operation information of the unit at any time
SL |
CM |
— |
A |
400 |
L |
V |
T |
① |
② |
|
③ |
④ |
⑤ |
⑥ |
⑦ |
Technical data
Model SLCM- |
A400 |
A450 |
A500 |
|
Refrigerating capacity |
kW |
1406 |
1582 |
1758 |
Input power |
kW |
210 |
240 |
272 |
Full load efficiency COP |
kW/kW |
6.70 |
6.59 |
6.46 |
|
kW/RT |
0.53 |
0.53 |
0.54 |
IPLV |
kW/kW |
11.58 |
11.58 |
11.58 |
Condenser |
|
|
|
|
Water flow |
m3/h |
302 |
340 |
378 |
Water pressure drop |
kPa |
78 |
50 |
60 |
Inlet and outlet water pipe joint |
DN |
200 |
250 |
250 |
Evaporator |
|
|
|
|
Water flow |
m3/h |
242 |
272 |
302 |
Water pressure drop |
kPa |
52 |
82 |
90 |
Inlet and outlet water pipe joint |
DN |
200 |
200 |
200 |
Outline Dimension |
|
|
|
|
A(Length) |
mm |
4000 |
4570 |
4570 |
B(Width) |
mm |
2250 |
2400 |
2400 |
C(Height) |
mm |
2600 |
2600 |
2600 |
Installation dimension |
|
|
|
|
D |
mm |
2944 |
3448 |
3448 |
E |
mm |
1700 |
1800 |
1800 |
Transport weight |
kg |
6000 |
7000 |
7500 |
Operation weight |
kg |
7000 |
8000 |
8500 |
Refrigerant filling |
kg |
360 |
400 |
450 |
Model SLCM- |
B800 |
B900 |
B1000 |
|
Refrigerating capacity |
kW |
2813 |
3164 |
3516 |
Input power |
kW |
420 |
480 |
544 |
Full load efficiency COP |
kW/kW |
6.70 |
6.59 |
6.46 |
|
kW/RT |
0.53 |
0.53 |
0.54 |
IPLV |
kW/kW |
11.58 |
11.58 |
11.58 |
Condenser |
|
|
|
|
Water flow |
m3/h |
605 |
680 |
756 |
Water pressure drop |
kPa |
65 |
80 |
85 |
Inlet and outlet water pipe joint |
DN |
300 |
300 |
300 |
Evaporator |
|
|
|
|
Water flow |
m3/h |
484 |
544 |
605 |
Water pressure drop |
kPa |
50 |
65 |
70 |
Inlet and outlet water pipe joint |
DN |
300 |
300 |
300 |
Outline Dimension |
|
|
|
|
A(Length) |
mm |
5500 |
5500 |
5500 |
B(Width) |
mm |
2550 |
2550 |
2550 |
C(Height) |
mm |
2650 |
2650 |
2650 |
Installation dimension |
|
|
|
|
D |
mm |
4340 |
4340 |
4340 |
E |
mm |
2050 |
2050 |
2050 |
Transport weight |
kg |
11500 |
12500 |
13000 |
Operation weight |
kg |
13000 |
14000 |
14500 |
Refrigerant filling |
kg |
700 |
800 |
900 |
