Fin Heat Exchanger

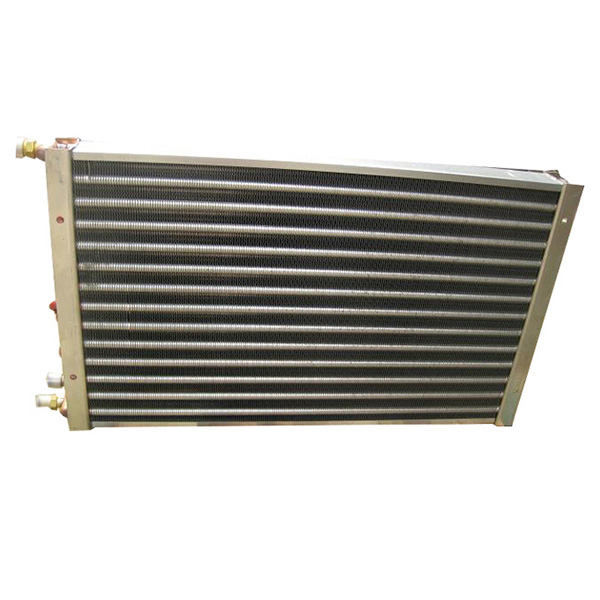

Tube Fin Air Cooled Heat Exchanger
In case you do not find the type or model in the website
We can customized according to your request.
Contact Now
Contact Now
- TEL:0086-21-35324169
- FAX:0086-21-35324166
- Email:sales@shenglintec.com
- WhatsApp:0086 13916147965
- Mob:0086 13916147965
● Copper tube:grooved or smooth tube
● Fin:hydrophilic or bare fin
● Certificate:ROHS,ISO
● Suitable for R134A, R22, R404A, R407C refrigerant and so on.
We are a professional heat exchanger, condenser, evaporator, heat pump,air cooler
and air conditioner manufacturerin China,which has more than 15 years experience in HVAC area. Our products have been exported
to Europe,USA, Japan and Middle east etc.
Feature:
1. we can supply products as per customized samples or drawing.
2. copper pipe: diameter 7mm or 8mm or 9.52mm ,grooved or smooth tube
3. fin type: louver fin or flat fin or corrugated fin
4. aluminum foil: hydrophilic or bare
5. different alternative condensing fans available: shaded pole or outer rotor fan motor.
6. pitch of holes and pitch of rows : 25*21.65MM and 12.7*19.05MM
7. suitable for R134A, R22, R404A, R407C refrigerant and so on
8. voltage: 220V/1/50HZ and 380V/3/50HZ or other type.
9. pitch of fins can be adjusted between 1.8—5.8mm.
10.did gas examination under 3.0Mpa air pressure to ensure the tightness.
Item | Evaporator Type | Operation medium | Operation pressure (MPa) | Application |
1 |
Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin
|
Cold/hot water | 1.6 |
Used for combined air handling unit, fan coil etc air conditioning devices
|
2 |
Φ18/Φ20 Steel pipe winding with steel sheet
|
Steam | 0.2 |
Used for combined air handling unit, fan coil etc air conditioning devices
|
3 |
Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin
|
Brine | 1.6 |
Used for heat transfer in cold storage and all kinds of low temperature systems
|
4 |
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
|
Ethylene glycol | 1.6 |
Used of energy recovery and low temperature system devices
|
5 |
Φ16 Copper tube with aluminium fin
|
Ice mud | 1.6 |
Used for dry operation condition, fresh air dehumidification etc systems
|
6 |
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
|
R22 | 1.9 |
Used for industry and commerce air conditioning system
|
7 |
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
|
R407C | 1.9 |
Used for industry and commerce air conditioning system
|
8 |
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
|
R134a | 3.1 |
Used for vehicle and vessel etc transportation devices
|
About Shenglin:
Shenglin is a leading design and manufacturing company specialized in Tube Fin Heat Exchangers.
Our skilled engineers utilize Italy's state-of-the-art Mcoil thermal calculation software to create high-quality heat exchangers. Their expertise enables us to produce accurate drawings and performance calculation documents.
In terms of production, our advanced facilities house multiple dedicated production lines for finned tube heat exchangers.
Our sheet metal production lines are equipped with cutting-edge laser cutting machines, CNC punch presses, CNC bending machines, and stretching hydraulic devices for guide rings. Furthermore, our tube-expanding equipment includes both mechanical and hydraulic tube expanders. Shenglin utilizes gas welding and argon arc welding methods, as well as offering spray coating and electrophoretic processes to meet the unique requirements of our customers.
Quality is paramount at Shenglin. Our Tube Fin Heat Exchangers adhere to the highest standards and carry international certifications such as Rohs, CE, and UL, which are widely recognized worldwide.
