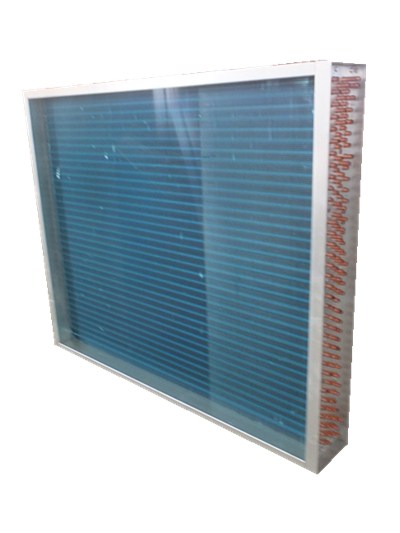

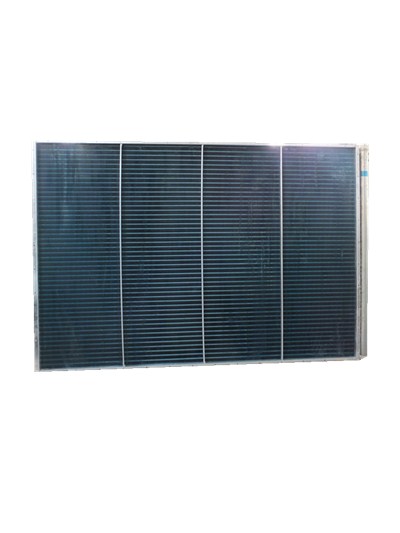

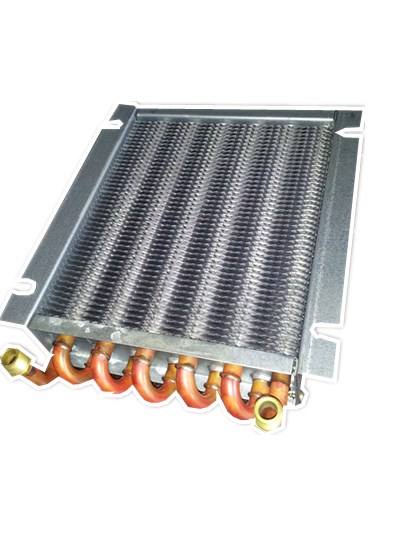

water air heat exchnger Production plant
Applicable industriesPetroleum, chemical, pressure vessel, aerospace, ship, refrigeration, medicine, food machinery,etc
Applicable products
Boiler, pressure vessel, heat exchanger,etc
Specification
Tube sizes range from 7mm to 15.88mm. Materials include copper, aluminum, stainless steel, and others. This product is brazed or welded depending on the material and application.Our Advantages:
1) Professional manufacturer, ROHS, BV, SGS, CE
2) Three- step Quality control. Inspect the raw material, unfinished products and finished products.
3) Experienced technical staff. We have senior engineers and technicians more than 20 people with many years of experiences.
4) More than 10 years’ experiences of manufacturing. Cooperate with many famous brands: Midea, Gree, TCL, LG, Samsung, Hitachi, Panasonic etc.
5) Our products can be customized. We can produce for clients according to the sample or drawings.
6) Very competitive price with high quality products and perfect delivery date.
| Fin Type |
Copper Tube O.D. (mm) |
Row Space (mm) |
Hole Space (mm) |
Fin Thickness (mm) |
Fin Space(mm) | |||||
| Flat fin |
Sine wave with blade fin |
Smooth sine wave fin |
Window fin | Sesamoid fin | ||||||
| A | 7 | 12.7 | 21 | 0.105 | / | / | 1.3 | 1.3 | / | |
| B | 7 | 13.2 | 17.6 | 0.105 | / | / | 1.3 | 1.3 | / | |
| C | 7 | 12.7 | 20.4 | 0.105 | / | / | 1.3~1.8 | 1.3~1.8 | / | |
| D | 7.94 | 15.88 | 25.4 | 0.105 | 1.8~3.0 | 1.8~3.0 | 1.8~3.0 | 1.8~3.0 | / | |
| E | 7.94 | 19.05 | 22 | 0.105~0.13 | 1.4~3.0 | 1.4~3.0 | 1.4~3.0 | 1.4~3.0 | / | |
| E | 9.52 | 22 | 25.4 | 0.105~0.15 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | / | |
| F | 9.52 | 22 | 25.4 | 0.18~0.4 | 3.5~6.35 | / | / | / | / | |
| G | 9.52 | 21.65 | 25 | 0.105~0.18 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | / | |
| H | 9.52 | 21.65 | 25 | 0.15~0.24 | 3.2~6.35 | 3.2~6.35 | 3.2~6.35 | / | / | |
| I | 12.75 | 27.5 | 31.75 | 0.115~0.15 | 1.5~3.5 | 1.5~3.5 | 1.5~3.5 | 1.5~3.5 | 1.6~3.2 | |
| J | 15.88 | 33 | 38.1 | 0.115~0.15 | 1.5~4.0 | 1.5~4.0 | 1.5~4.0 | / | / | |
| K | 15.88 | 34.64 | 40 | 0.115~0.15 | / | 2.6~3.5 | 2.6~3.5 | / | / | |
About Shenglin:
Shenglin is a leading design and manufacturing company specialized in Tube Fin Heat Exchangers.
Our skilled engineers utilize Italy's state-of-the-art Mcoil thermal calculation software to create high-quality heat exchangers. Their expertise enables us to produce accurate drawings and performance calculation documents.
In terms of production, our advanced facilities house multiple dedicated production lines for finned tube heat exchangers.
Our sheet metal production lines are equipped with cutting-edge laser cutting machines, CNC punch presses, CNC bending machines, and stretching hydraulic devices for guide rings. Furthermore, our tube-expanding equipment includes both mechanical and hydraulic tube expanders. Shenglin utilizes gas welding and argon arc welding methods, as well as offering spray coating and electrophoretic processes to meet the unique requirements of our customers.
Quality is paramount at Shenglin. Our Tube Fin Heat Exchangers adhere to the highest standards and carry international certifications such as Rohs, CE, and UL, which are widely recognized worldwide.
|
Item
|
Cooling coil Type
|
Operation medium
|
Operation pressure (MPa)
|
Application
|
| 1 | Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin | Cold/hot water | ≤1.6 | Used for combined air handling unit, fan coil etc air conditioning devices |
| 2 | Φ18/Φ20 Steel pipe winding with steel sheet | Steam | ≤0.2 | Used for combined air handling unit, fan coil etc air conditioning devices |
| 3 | Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin | Brine | ≤1.6 | Used for heat transfer in cold storage and all kinds of low temperature systems |
| 4 | Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin | Ethylene glycol | ≤1.6 | Used of energy recovery and low temperature system devices |
| 5 | Φ16 Copper tube with aluminium fin | Ice mud | ≤1.6 | Used for dry operation condition, fresh air dehumidification etc systems |
| 6 | Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin | R22 | ≤1.9 | Used for industry and commerce air conditioning system |
| 7 | Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin | R407C | ≤1.9 | Used for industry and commerce air conditioning system |
| 8 | Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin | R134a | ≤3.1 | Used for vehicle and vessel etc transportation devices |
1.Used for combined air handling unit, fan coil etc air conditioning devices
2.Used for heat transfer in cold storage and all kinds of low temperature systems
3.Used of energy recovery and low temperature system devices
4.Used for dry operation condition, fresh air dehumidification etc systems
5.Used for industry and commerce air conditioning system
6.Used for vehicle and vessel etc transportation devices
2.Used for heat transfer in cold storage and all kinds of low temperature systems
3.Used of energy recovery and low temperature system devices
4.Used for dry operation condition, fresh air dehumidification etc systems
5.Used for industry and commerce air conditioning system
6.Used for vehicle and vessel etc transportation devices
