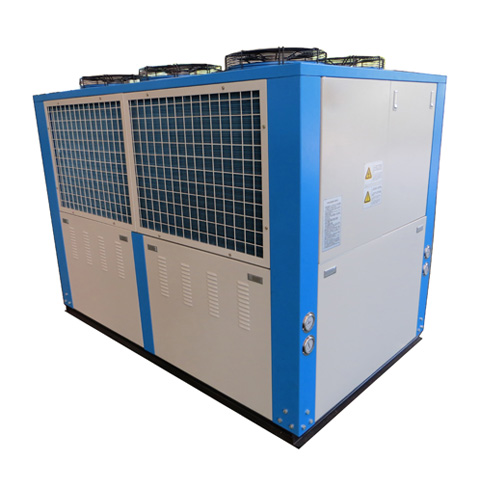

Plastic Processing Air Cooler/Water Chiller System
Contact Now
- TEL:0086-21-35324169
- FAX:0086-21-35324166
- Email:sales@shenglintec.com
- WhatsApp:0086 13916147965
- Mob:0086 13916147965
Air cooled chiller box type (7℃) technical parameter
SP- |
||||||||||||||
Type |
05ASZ |
08ASZ |
10ASZ |
12ASZ |
15ASZ |
20ADZ |
25ADZ |
30ADZ |
36ADZ |
40AQZ |
50AQZ |
60AQZ |
72AQZ |
|
Nominal cooling capacity |
kw |
14.4 |
25.5 |
29.0 |
32.7 |
41.1 |
58.0 |
65.4 |
82.2 |
98.1 |
116.0 |
130.8 |
174.0 |
196.2 |
104 kcal/h |
1.2 |
2.2 |
2.5 |
2.8 |
3.5 |
5.0 |
5.6 |
7.1 |
8.4 |
10.0 |
11.2 |
15.0 |
16.9 |
|
Machine power |
kw |
4.7 |
7.3 |
9.7 |
10.9 |
14.3 |
19.4 |
22.3 |
29.1 |
32.2 |
38.2 |
43.8 |
52.4 |
65.2 |
Machine operating current |
A |
9.4 |
14.3 |
17.8 |
19.5 |
27.1 |
35.6 |
41.0 |
54.2 |
57.8 |
69.6 |
78.1 |
96.5 |
117.2 |
Compressor |
Quantity |
1 |
1 |
1 |
1 |
2 |
2 |
2 |
4 |
3 |
4 |
4 |
4 |
6 |
Input power(kw) |
4.0 |
6.1 |
8.1 |
9.1 |
12.4 |
16.2 |
18.2 |
24.7 |
27.3 |
32.4 |
36.4 |
43.0 |
54.6 |
|
Rated current(A) |
7.7 |
11.6 |
14.6 |
16.1 |
22.7 |
29.2 |
32.3 |
45.4 |
48.4 |
58.4 |
64.5 |
78.3 |
96.8 |
|
Evaporator |
Type |
High efficiency dry type shell and tube heat exchanger |
||||||||||||
Flow(L/min) |
41 |
73 |
83 |
94 |
118 |
166 |
187 |
236 |
281 |
333 |
375 |
498.8 |
562.4 |
|
Interface size |
DN32 |
DN32 |
DN40 |
DN40 |
DN50 |
DN50 |
DN50 |
DN65 |
DN65 |
DN65 |
DN65 |
DN80 |
DN80 |
|
Condenser |
Type |
High efficiency fin type heat exchanger |
||||||||||||
Condensation axial fan |
Fan quantity |
1 |
2 |
2 |
2 |
2 |
4 |
4 |
4 |
6 |
8 |
8 |
8 |
12 |
Fan power(kw) |
0.2 |
0.5 |
0.9 |
1.1 |
1.2 |
1.7 |
1.9 |
2.4 |
2.7 |
3.6 |
4.4 |
4.8 |
6.6 |
|
Operating current(A) |
0.6 |
1.2 |
1.7 |
2.2 |
2.4 |
3.4 |
4.3 |
4.8 |
5.0 |
6.8 |
7.6 |
9.6 |
12.5 |
|
Chilled water pump |
Type |
High efficiency, low noise centrifugal water pump |
|
|
|
|||||||||
Input power(kW) |
0.55 |
0.75 |
0.75 |
0.75 |
1.10 |
1.50 |
2.20 |
2.20 |
2.20 |
2.20 |
3.00 |
4.0 |
4.0 |
|
Head(mH2O) |
22 |
25 |
22 |
25 |
23 |
22 |
22 |
22 |
21 |
22 |
23 |
22.0 |
23.0 |
|
Nominal tank volume(L) |
80 |
115 |
130 |
130 |
210 |
230 |
250 |
310 |
310 |
330 |
370 |
510 |
510 |
|
Overall dimensions |
Length(mm) |
1050 |
1500 |
1450 |
1450 |
1570 |
1650 |
1650 |
1930 |
2300 |
2900 |
2900 |
3550 |
4270 |
Width(mm) |
700 |
800 |
1000 |
1000 |
1000 |
1450 |
1450 |
1570 |
1400 |
1500 |
1500 |
1500 |
1500 |
|
Height(mm) |
1090 |
1250 |
1410 |
1410 |
1510 |
1750 |
1750 |
1510 |
1550 |
1980 |
1980 |
1985 |
2000 |
|
Weight |
Machine weight(kg) |
180 |
350 |
450 |
500 |
700 |
830 |
1050 |
1250 |
1300 |
1350 |
1550 |
2150 |
2250 |
Operating weight(kG) |
260 |
465 |
580 |
630 |
910 |
1060 |
1300 |
1560 |
1600 |
1680 |
1920 |
2800 |
2900 |
Cooling condition: Chilled water inlet/outlet temperature 12/7 ℃, ambient dry bulb temperature 35℃
No. |
Name |
Brand |
Original |
1 |
Compressor |
COPELAND |
USA |
2 |
Controller |
BANGPU |
China |
AC contactor |
LG |
Korea |
|
Thermal relay |
LG |
Korea |
|
3 |
Heat exchanger |
Shenglin |
China |
Fan |
MAER |
China |
|
Expansion valve |
EMERSON |
USA |
|
DANFOSS |
Denmark |
||
High and low pressure gauge |
HONGSEN |
China |
|
Flow switch |
KAOBO |
China |
|
Water pump |
SOUTH |
China |
