Immersion Cooling Container 1.1MW/2.0MW
Contact Now
- TEL:0086-21-35324169
- FAX:0086-21-35324166
- Email:sales@shenglintec.com
- WhatsApp:0086 13916147965
- Mob:0086 13916147965
Introduction

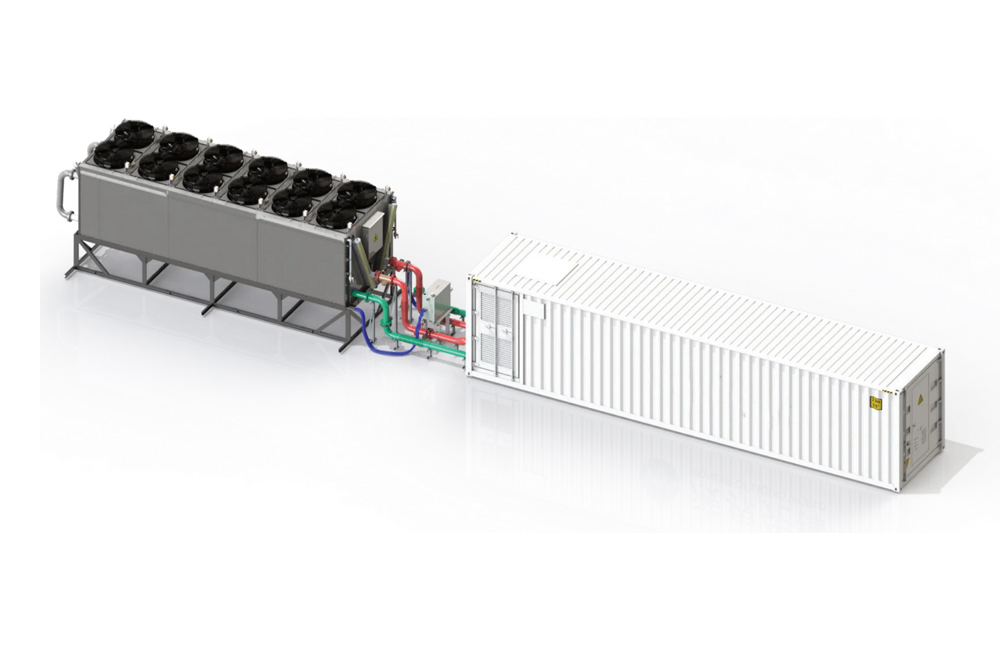

· The tank area is enlarged to support various Antminers such as S21, S21 XP, S21 Pro, S21xp Imm, and DG1+. It is insulated and equipped with air conditioning for operator comfort.
· The dry cooler is separate from the 40-foot container and can be installed horizontally or stacked as needed.
· The system combines an immersion cooling tank and a CDU, connected to the dry cooler via external piping.
· Power, distribution, monitoring, lighting, and ventilation systems are all integrated into the prefabricated, factory-tested container.
|
Dimension |
40HQ |
|
|
Miner Type |
MicroBT |
Antminer |
|
Number of Miners |
256 × M66+ |
176×S21/S21 XP&S21 Pro 160×S21xp Imm 192×DG1+ |
|
Heat Dissipation |
2.0MW |
1.1MW |
|
Flow Rate |
200m³/h for each pump, two pumps |
160m³/h for each pump, two pumps |
|
Cooler |
Dry Cooler |
|
|
Power Supply |
3*380V/3*415V/3*480V, 50/60Hz |
|
|
Power Distribution Unit |
Smart PDU |
|
