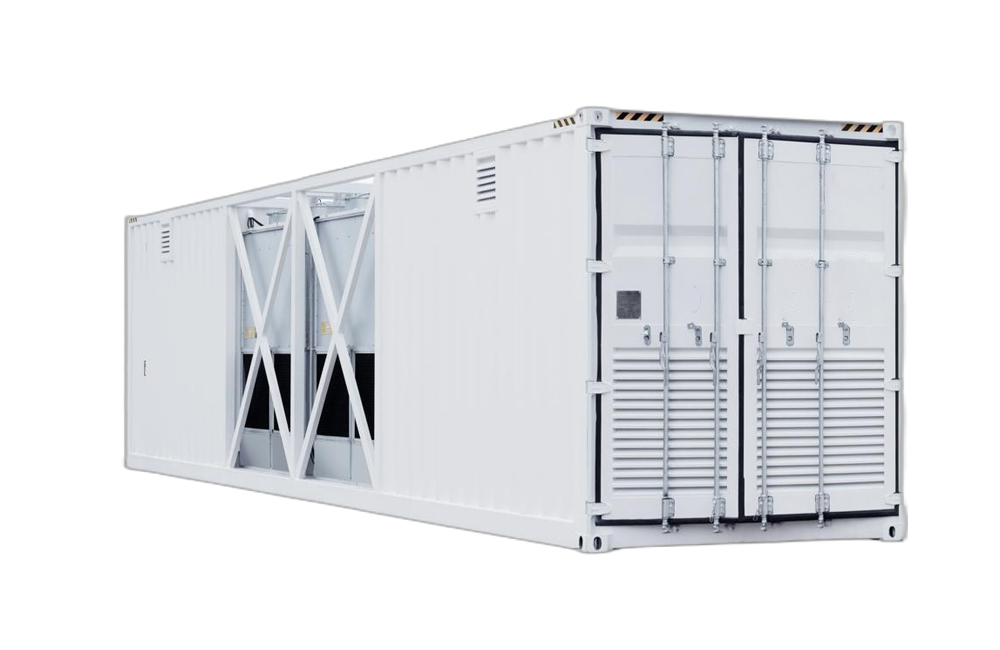

Tower-Inside Immersion Cooling Container

Next-Generation Cooling Infrastructure for High-Density Mining

The Bitcoin Cooling Container is an intelligent, modular solution engineered to support the next generation of high-density cryptocurrency mining. Designed with precision thermal management and integrated smart control systems, it delivers exceptional performance, reliability, and energy efficiency — all within a compact containerized form factor.

Built inside a standard 20ft or 40ft ISO container, the system integrates power distribution, advanced cooling technology, monitoring, and protection systems, providing a plug-and-play mining environment that can be deployed globally with minimal setup time.



Smart Design & Engineering

The container adopts a high-strength steel frame with an optimized internal layout to maximize space utilization and airflow.
Each module is pre-assembled, factory-calibrated, and IoT-enabled, allowing operators to remotely monitor real-time parameters such as temperature, power load, coolant flow, and system alarms.



Cooling Technologies

1. Air Cooling Module
   Features a high-flow ventilation system with dynamic airflow control, optimized for uniform heat dissipation and low noise. Ideal for mild or cold regions.

2. Hydro Cooling Module
   Incorporates closed-loop water circulation with precision heat exchangers and variable-speed pumps. Provides stable cooling performance even under high ambient temperatures.

3. Immersion Cooling Module
   The most advanced system in the series — miners are submerged in a dielectric cooling liquid that directly transfers heat away from components. This achieves ultra-low PUE (<1.03), reduces fan noise, and extends miner lifespan while enabling overclocking with stable performance.

Dimensions(W x D x H)	12192mm x 2438mm x 2896mm
Gross Weight	13000kg Approximately 13tons
Miner Capacity	240pcs（*Antminer S19 is used as the reference ）
Input Voltage	380V@50Hz,415V@60Hz
Power Rating (kW)	840
Heat Dissipation Options	Air Cooling Plus Water Cooling
Cooling Medium	S3 X（Shell）
Max Oil Temp (℃)	In 45℃ Out 60℃
Electrical Code	UL、CE、CSA (Alternative)
Working Temperature	-25~40℃
Monitoring Content	LCD Touch Control、Dual-Channel Temp&Hum Monitor through Web/APP、Temperature Sensor、 Trouble Lamp
Delivery Date	45 Working Days

Application Scenarios

• Bitcoin & cryptocurrency mining farms

• Cloud mining & colocation services

• Renewable energy–powered mining sites

• Edge computing or HPC (High-Performance Computing) applications

Core Components:

（1）Intelligent Power Distribution Unit (iPDU)
（2）High-efficiency cooling system (Air / Hydro / Immersion)
（3）Smart control and remote monitoring platform
（4）Integrated cable management and modular miner racks
（5）Environmental and safety protection system
