Cooling Tower

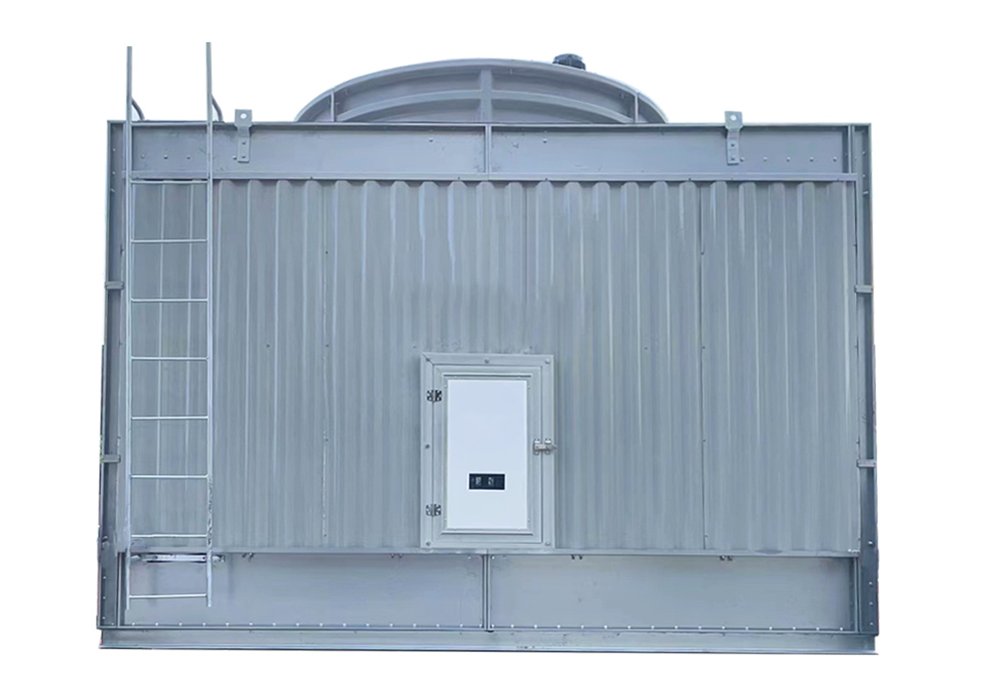

Square Counterflow Cooling Tower
  • Square Counterflow Cooling Tower
  • Square Counterflow Cooling Tower
  • Square Counterflow Cooling Tower
  • Square Counterflow Cooling Tower

Square Counterflow Cooling Tower

In case you do not find the type or model in the website We can customized according to your request.
Contact Now
  • Features
  • Technical Data
  • Application
  • Certification
  • Part List
  • Reference
1. LYN for square can be associative combination, make full use of space, covers an area of savings; Special product design, and has the characteristics of low noise and high efficiency.
2. The overall structure of the solid, light boday and water plate of the reinforced fiber glass(F.R.P) manufacturing, never corrosion. On the surface of the paint and uv inhibitors, resistant to sunlight damage.
3. All the steel materials through hot dip galvanized processing, corrosion resistance, durable.
4. The special design of axial fan belt reducer, low noise, air volume, can be mounted to the special water droplets quieter carpet, eliminate water.
5. The use of the special design PVC water cleaner(water), to prevent splash effect is remarkable, the pressure drop loss mild, spatter loss below 0.002%
6. Special design aproll, diameter does not block, but sproll efficiency is very high, installed in the inrerior of the tower body is not polluted by outside dust.
7. The honeycomb type vacuum forming heat dissipation material, staggered surface groove, the heat exchange efficiency is very high.
8. Water dish by tilting design, easy to clean, less water, low weight, but the heavy tank, no worries, inhaled air.

Model

Overall dimension mm

Flow rate
m3/h

Fan dimater
mm

Motor
kw

Weight kg

Noise db

L

W

H

H1

H2

Net

Running

LYN-100

2460

2460

4280

3240

760

100

1800

4

1250

2320

61

LYN-125

2460

2460

4430

3390

760

125

1800

4

1350

2497

62

LYN-150

2760

2760

4720

3590

820

150

2100

5.5

1420

2627

63

LYN-175

2760

2760

4720

3590

820

175

2100

5.5

1520

2812

63

LYN-200

3370

3370

4930

3260

1000

200

2400

5.5

1770

3770

63.5

LYN-225

3370

3370

5120

3410

1000

225

2400

7.5

1800

3830

63.5

LYN-250

3370

3370

5270

3560

1000

250

2400

7.5

1830

3890

63.5

LYN-300

3980

3980

5160

3380

1000

300

3000

11

2950

6590

64

LYN-350

3980

3980

5680

3900

1000

350

3000

11

3150

6790

64

LYN-400

4895

4895

5330

3260

1200

400

3400

15

3450

7090

64

LYN-450

4895

4895

5480

3410

1200

450

3400

15

4680

9760

65

LYN-500

4895

4895

6070

3900

1200

500

3400

15

5420

12320

65

LYN-600

5810

5810

6250

4050

1200

600

3600

18

5730

12960

66

LYN-700

6725

6725

5900

3900

1000

700

4270

22

6890

16310

67



1. For medium frequency, high frequency power supply cooling
2.For medium-frequency quenching workpiece, if quenching liquid cooling
3.For vacuum heating, vacuum sintering, vacuum welding, vacuum melting furnace
4.For cooling of air compressors
5.For central air conditioning
6.For cooling of water-cooled screw machine and plate exchanger
7.For screw machines and other equipment
