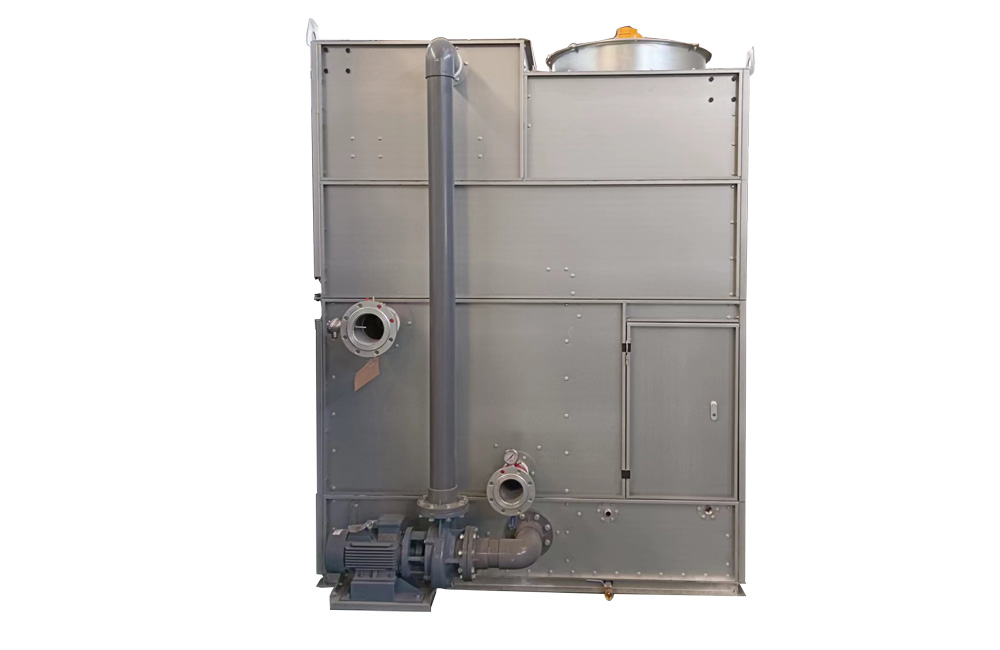

Closed Type Composite Flow Cooling Tower

In case you do not find the type or model in the website We can customized according to your request.
Contact Now

TEL:0086-21-35324169
FAX:0086-21-35324166
Email:sales@shenglintec.com
WhatsApp:0086 13916147965
Mob:0086 13916147965

Features
Technical Data
Application
Certification
Part List
Reference

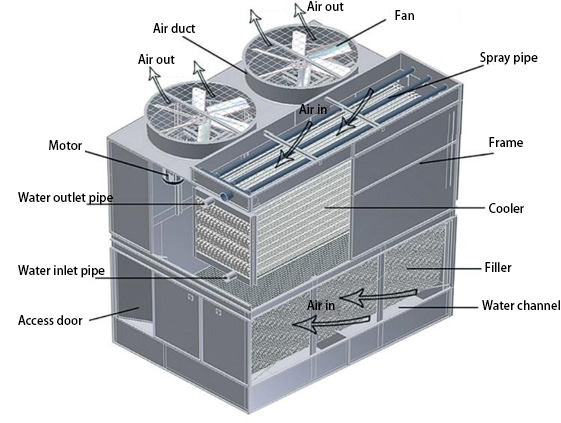

Working principle:

Working fluid (water into other liquids)

Circulating inside the coils of a closed cooling tower,

The heat of the working fluid is dissipated into the spray through the coil pipe

In the water film on the surface of the coil. At the same time, the surroundings outside the unit

Air enters from the bottom intake grille of the tower and flows with water

The main direction of the movement is exactly opposite, flowing upwards through the coil. since childhood

Part of the water evaporates and absorbs heat, while hot and humid air is replaced by cold air

The axial flow fan at the top of the tower is discharged into the atmosphere

The remaining water falls into the bottom sink and is then circulated by the water pump until it is damaged

The water distribution system drizzles onto the coil again.

Product features:

1. More precise energy control

Due to the absence of pre cooled packing design, the number of coils is increased, and a dual speed motor can be used to provide more accurate energy control. When the load decreases or the wet bulb temperature decreases, the axial flow fan can operate at low speed. When the external temperature is lower, the spray water system can be turned off to achieve dry operation, thereby fundamentally avoiding the phenomenon of external icing on the spray water.

2. Compact structure with small footprint

The product integrates condensers, cooling towers, circulating water pumps, water tanks, and connecting water pipes, and can operate normally without the need for additional equipment. It has the advantages of small footprint and low comprehensive investment.

3. Available for auxiliary equipment matching

For some small cooling projects, we connect the small closed cooling tower with the circulating water pump, circulating water tank, and control system to form a unified model, which is convenient for users to use the product

Model	Fan		Spray pump		Inlet and outlet pipe diameter		Overall dimension mm			Weight（Kg）
Model	Motor KW	Air volumem3/h	Capacity KW	Flowm3/h	Inlet and outlet	Pollutant discharge Hydrating port	L	W	H	Net	Running
LXLQ-25	1.1*2	17150*2	0.75	50	DN65	DN25	2780	1840	2260	1050	1880
LXLQ-30	1.1*2	17150*2	0.75	50	DN65	DN25	2900	1840	2260	1120	2050
LXLQ-35	1.1*2	17150*2	0.75	50	DN65	DN25	3100	1840	2380	1210	2120
LXLQ-40	1.1*3	17150*3	1.1	80	DN80	DN25	3300	1940	2440	1320	2450
LXLQ-50	1.1*3	17150*3	1.1	80	DN80	DN25	3600	1940	2670	1430	2980
LXLQ-65	1.5*3	19650*3	1.5	100	DN100	DN25	3900	1940	2580	1495	2600
LXLQ-80	1.1*4	17150*4	2.2	100	DN125	DN25	4200	2240	2860	2080	4080
LXLQ-100	1.5*4	19650*4	2.2	150	DN80*2	DN25	4400	2240	3067	2180	4480
LXLQ-125	1.5*4	19650*4	2.2	150	DN100*2	DN40	4800	2240	3119	2520	5080
LXLQ-150	2.2*4	26820*4	3.7	150	DN100*2	DN40	5400	2240	3499	3080	6980
LXLQ-175	2.2*4	26820*4	3.7	150	DN100*2	DN40	5600	2240	3499	3180	7180
LXLQ-200	3*4	40000*4	5.5	150	DN125*2	DN40	5800	2600	3780	4980	9080
LXLQ-225	3*4	40000*4	5.5	150	DN125*2	DN40	6000	2600	3780	5380	10050
LXLQ-250	4*4	46565*4	7.5	150	DN125*2	DN40	6600	2900	3580	6530	11200
LXLQ-275	4*4	46565*4	7.5	150	DN125*2	DN40	7000	2900	3580	6680	12100
LXLQ-300	4*5	50000*5	3.7*2	150	DN100*4	DN40	7400	3200	3750	7220	13200
LXLQ-325	5.5*5	54600*5	3.7*2	150	DN100*4	DN40	7600	3200	3750	9980	15890
LXLQ-350	5.5*5	63000*5	5.5*2	150	DN100*4	DN40	7800	3400	3750	10500	16560
LXLQ-375	5.5*5	63000*5	5.5*2	150	DN125*4	DN40	8000	3400	3750	11400	17530
LXLQ-400	7.5*5	70000*5	5.5*2	150	DN125*4	DN40	8400	3400	3900	12600	18540
LXLQ-425	5.5*6	63000*6	7.5*2	150	DN125*4	DN40	8800	3600	3750	15900	20590
LXLQ-450	5.5*6	63000*6	7.5*2	150	DN150*4	DN40	9000	3600	3750	16400	21680
LXLQ-475	7.5*6	70000*6	7.5*2	150	DN150*4	DN40	9200	3600	3750	17690	22860
LXLQ-500	7.5*6	70000*6	7.5*2	150	DN150*4	DN40	9400	3600	3750	18640	23780

1.For medium frequency, high frequency power supply cooling

2.For medium-frequency quenching workpiece, if quenching liquid cooling

3.For vacuum heating, vacuum sintering, vacuum welding, vacuum melting furnace

4.For cooling of air compressors

5.For central air conditioning

6.For cooling of water-cooled screw machine and plate exchanger

7.For screw machines and other equipment

Stainless steel pipe 304/316L

The stainless steel components of the cooling tower have excellent corrosion resistance and weldability, making them durable with a long lifespan. They are resistant to high temperatures, high pressure, and have high strength. Additionally, stainless steel is environmentally friendly as its smooth inner walls prevent fouling, algae growth, and bacterial contamination, ensuring healthier water quality.

Panel

The cooling tower panels are typically made of Korean Pohang magnesium aluminum zinc-plated sheets with a thickness of 2.0mm. These panels have high corrosion resistance and maintain their original appearance even in harsh environments due to their high strength and rigidity. They can withstand large external forces and pressures.

Moreover, the magnesium aluminum zinc-plated sheets have good plasticity and processability, allowing for cutting, bending, punching, and other processing as needed to meet various design requirements.

Fan

The cooling tower blades are made of engineering plastics or aluminum alloy, equipped with three-proof motors for low noise and high transmission efficiency, with non-slip properties in rainy conditions.
The number of fans varies according to the model to increase exhaust area, improve cooling efficiency, and reduce fan damage.
The motor is specifically designed for use in full closed type cooling towers. It can operate continuously in humid conditions, offering high efficiency, low noise, long lifespan, and high reliability.

Spray Pump

The close type cooling tower spray pump features a high-quality mechanical seal that is not restricted by direction, ensuring no leakage and a long service life.
The motor is specifically designed for outdoor use and has an impeller with excellent hydraulic model design for good dynamic and static balance.
SKF bearings and EKK mechanical seals, sourced from Sweden, ensure the pump's long-term reliable operation with features such as low power consumption, low head, high flow rate, and low noise.

Filler

The cooling tower fill is made of high flame-retardant 100% PVC virgin material.
The water collector and air guide structure are integrated, allowing the fill to be directly suspended without the need for adhesive. The excellent structural design ensures proper spacing, even water distribution, efficient heat exchange, prevention of clogging, and easy installation and maintenance.

Dehydrator

The Dehydrator System uses high flame-retardant 100% PVC virgin material and features a clip-type water collector for efficient dewatering, very low drift rate, and easy disassembly.

Sprinkler System

The cooling tower spray system utilizes patented centrifugal spray nozzles with anti-loosening design, large aperture, low pressure loss, uniform water distribution, and resistance to clogging.

Electric control cabinet

The electrical control cabinet is custom-made according to user requirements, featuring international brands, temperature control systems, alarm systems, overload protection, and support for both manual and automatic control modes.
Users can freely set temperatures, and the system will automatically start and stop the fan and spray pump based on detection data.

Coil

The coil is designed to work in even the most hostile conditions, whether at high temperatures, high pressures, or where the environment is highly corrosive.Our cooler tubes can be produced in materials such as stainless steel as well as copper and copper alloys, to best suit the environment.
