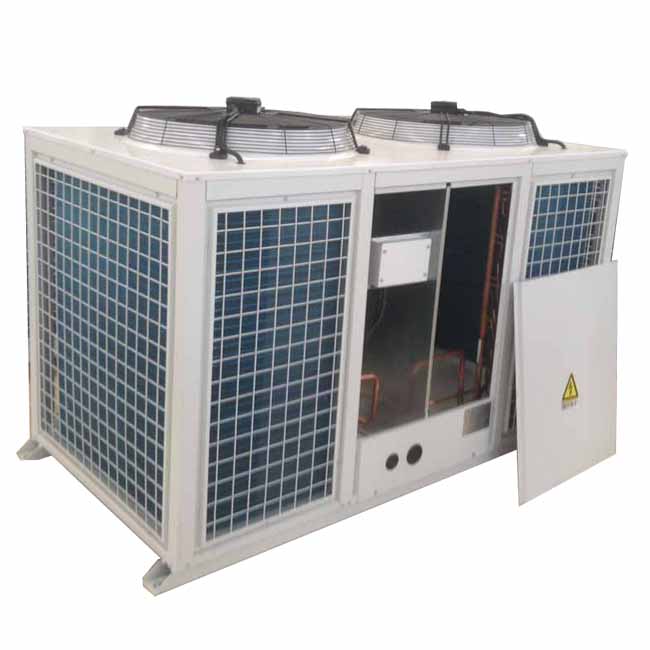

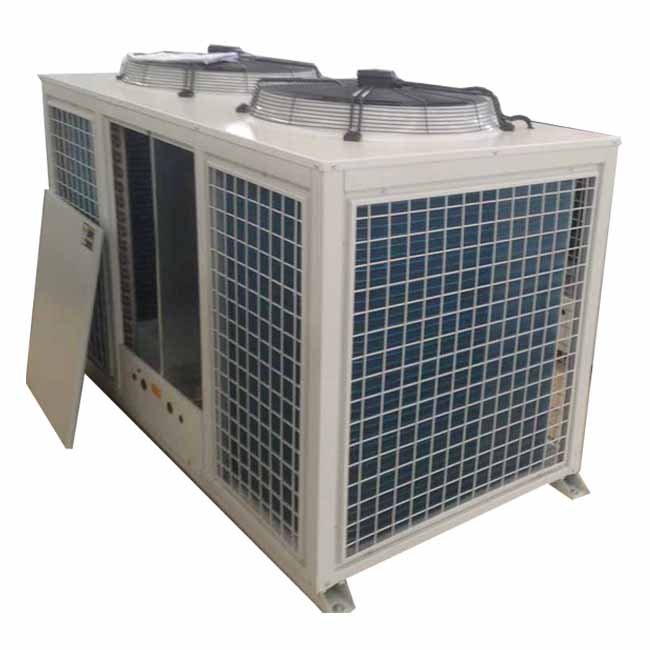

Split Type Fresh Air Conditioner Outdoor Unit

In case you do not find the type or model in the website We can customized according to your request.
Contact Now

TEL:0086-21-35324169
FAX:0086-21-35324166
Email:sales@shenglintec.com
WhatsApp:0086 13916147965
Mob:0086 13916147965

Features
Technical Data
Application
Certification
Part List
Reference

XW
XL
XZ

A
B

/GTWR-30

SL：Shenglin

XZ：Split type fresh air conditioning unit (combined) series

XL: Split type fresh air conditioning unit (Cabinet type) series

XW: Split type fresh air conditioning unit (ceiling type) series

30: Cooling capacity code

A: Big enthalpy difference

B: Small enthalpy difference

HR: Heat recovery type

GTWR-30: Outdoor unit code

Model：SL-XW-				15A	15B	20A	20B	25A	25B	30A	30B	40A	40B	45A	45B
Unit characteristics	Cooling capacity1*		KW	15.1		22.4		28.0		32.3		40.4		48.0
	Heating capacity1*		KW	10.0		14.1		17.8		21.0		24.4		31.6
	Supply air volume		m3/h	1080	1500	1680	2200	2100	3000	2400	3250	2900	4180	3600	4800
	External static pressure		Pa	100	100	100	150	200	150	200	200	200	250	250	250
	Power supply		—	3N-380V-50Hz
Indoor unit	Fan power		KW	0.32	0.32	0.32	0.32	0.32	0.55	0.32	0.55	0.55	0.8	0.32*2	0.55*2
	Air filtration		type	Primary filter G4/Medium efficiencyF8/Electrostatic Precipitator/Nanocrystalline Carbon Filtration
	Overall dimensions	Length(L)	mm	950		950		950		950		1050		1100
		Width(W)	mm	1140		1140		1340		1480		1650		1800
		Height(H)	mm	580		580		580		600		630		680
	Noise		dB(A)	42	42	42	42	43	43	45	46	46	47	49	49
	Weight		KG	105		120		130		145		150		180
Outdoor unit	Model：SL-XW-		—	15		20		25		30		40		45
	Compressor 2*		type	Efficient fully enclosed scroll
			Qty	1		1		1		1		1		2
	Condenser fan		type	Axial
			Qty	1		1		1		1		1		2
	Input power		KW	4.6		7.2		8.75		10.56		12.8		14.4
	Overall dimensions	Length(L)	mm	850		980		980		980		980		1880
		Width(W)	mm	850		980		980		980		980		980
		Height(H)	mm	1080		1080		1080		1234		1234		1080
	Noise 3*		dB(A)	60		62		62		63		63		64
	Weight		KG	150		170		205		220		255		360
	Refrigerant 4*	Type	R407C/R410A
	Connection pipe size 5*	Liquid pipe（mm）	12.7（12.7）			15.88（12.7）		15.88（15.88）		15.88（15.88）		19.05（15.88）		15.88（12.7）*2
		Gas pipe（mm）	19.05（15.88）			22.23（19.05）		28.6（22.23）		28.6（22.23）		34.9（28.6）		22.23（19.05）*2

Note:
Cooling condition: outdoor dry bulb/wet bulb temperature 35/28°C; heating condition: outdoor dry bulb/wet bulb temperature 0/-2.9°C;
Internal machine noise test conditions: The indoor unit is equipped with a 1m insulated air duct, 1 meter away from the air outlet side of the duct (JIS8616 standard);
R410A or R407C environmentally friendly refrigerant can be used, please indicate in the order;
The size in brackets is the R410A connecting pipe size;
The fresh air units are limited to handling fresh air loads, and indoor temperature control and main load commitments must be handled by standard air conditioning equipment.

model：SL-XW-				55A	55B	65A	65B	80A	80B	95A	95B	110A	110B	125A	125B
Unit characteristics	Cooling capacity1*		KW	56.0		64.5		82.0		95.0		110.0		126.0
	Heating capacity1*		KW	36.4		42.0		51.5		62.6		72.3		83.0
	Supply air volume		m3/h	4100	6000	4800	6500	6000	8000	7150	9500	8500	11000	9500	12800
	External static pressure		Pa	250	300	300	300	300	300	350	350	350	350	350	400
	Power supply		—	3N-380V-50Hz
Indoor unit	Fan power		KW	0.55*2	1.1*2	0.75*2	1.1*2	1.1*2	1.1*2	2.2	3	3	4	3	4
	Air filtration		type	Primary filter G4/Medium efficiencyF8/Electrostatic Precipitator/Nanocrystalline Carbon Filtration
	Overall dimensions	Length(L)	mm	1100		1100		1100		1200		1200		1200
		Width(W)	mm	2000		2080		2100		2250		2250		2250
		Height(H)	mm	680		780		780		980		1080		1280
	Noise		dB(A)	49	51	51	55	53	56	55	60	57	62	61	64
	Weight		KG	205		220		320		350		450		520
Outdoor unit	Model：SL-WR-		—	55		65		40*2		45*2		55*2		65*2
	Compressor 2*		type	Efficient fully enclosed scroll
			Qty	2		2		2*2		2*2		2*2		2*2
	Condenser fan		type	Axial
			Qty	2		2		2*2		2*2		2*2		2*2
	Input power		KW	17.5		21.12		14.4*2		16.9*2		17.5*2		21.12*2
	Overall dimensions	Length(L)	mm	1880		1880		1880*2		1880*2		1880*2		1880*2
		Width(W)	mm	980		980		980		980		980		980
		Height(H)	mm	1080		1234		1080		1080		1080		1234
	Noise 3*		dB(A)	64		65		67		69		70		74
	Weight		KG	450		485		360*2		450*2		450*2		485*2
	Refrigerant 4*	Type	R407C/R410A
	Connection pipe size 5*	Liquid pipe（mm）	15.88（15.88）*2			15.88（15.88）*2		15.88（12.7）*4		15.88（15.88）*4		15.88（15.88）*4		15.88（15.88）*4
		Gas pipe（mm）	28.6（22.23）*2			28.6（22.23）*2		22.23（19.05）*4		28.6（22.23）*4		28.6（22.23）*4		28.6（22.23）*4
