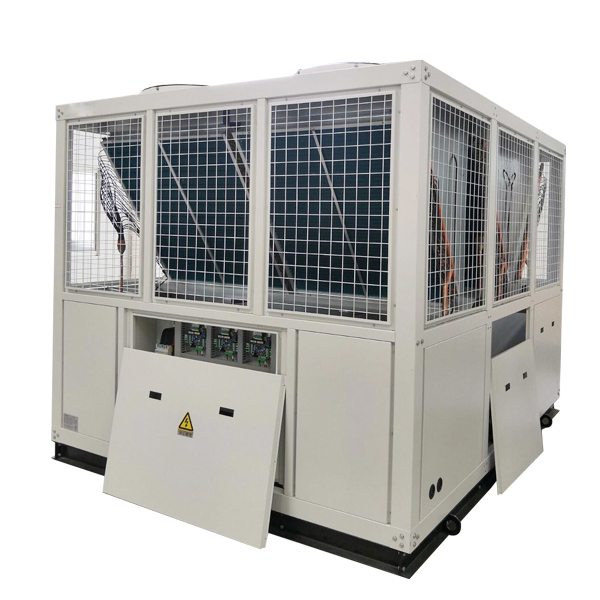

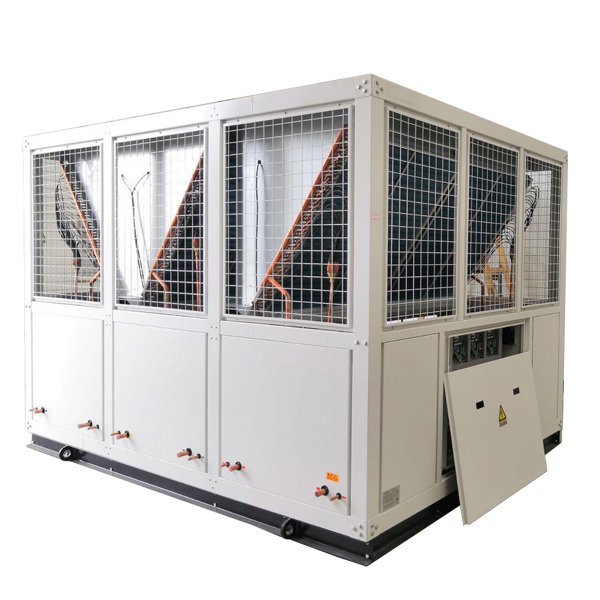

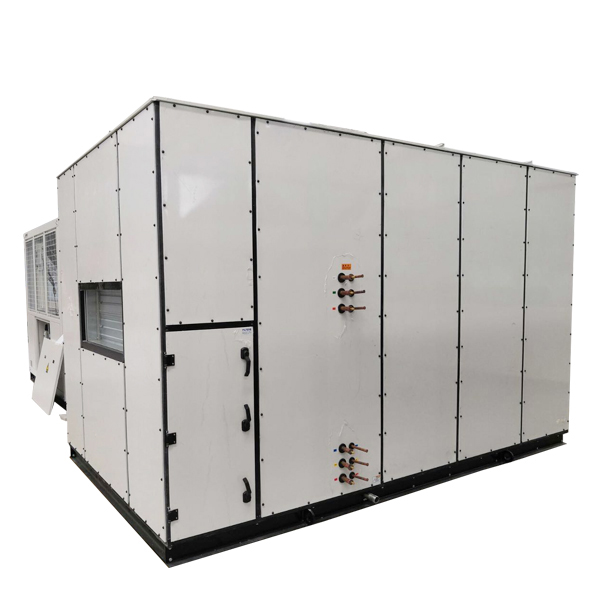

Split Type Rooftop Air Conditioner Outdoor Unit

In case you do not find the type or model in the website We can customized according to your request.
Contact Now

TEL:0086-21-35324169
FAX:0086-21-35324166
Email:sales@shenglintec.com
WhatsApp:0086 13916147965
Mob:0086 13916147965

Features
Technical Data
Application
Certification
Part List
Reference

Capacity: 120~300 Kw, 34~85 Tons, 400000~100000 BTUs
Efficiency: 2.7~3.3 cop.
Warranty: Compressor- 3 years limited. other parts-1 year limited.

Structure

Panels and frame are made from galvanized steel protected with polyester powder painting to ensure total resistance toatmospheric agents.

Direct expansion coils with condensate drain tray.

Hermetic compressor

High efficiency scroll compressor for the whole range, with built-in thermal overload cut-out and crankcase heater,mounted on rubber vibration dampers

Ripple type acoustic insulation for compressor section, and thermal insulation for coil and fan section, low noise

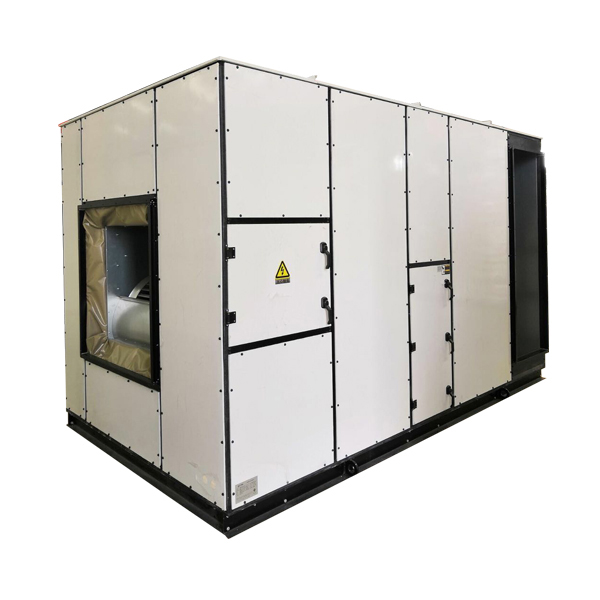

Centrifugal fan

Forward curve centrifugal fans for air treatment section and axial fans for condensation section. Front, side and underside air discharge of the treatment unit. High external pressure, long air supply distance

Electric panel

Electric panel consists of breakers and contactors for compressors and fan motors, phase sequence relay and other necessary protection devices for the main components.

Easy operation line controller

Cooling/Heating/Auto. Error indication. Timing on/off.

Optional

Economizer with fresh, return air dampers and fresh air hood.

Free cooling function for low ambient temperature.

Low ambient control device for operation of outdoor units at ambient temperatures from less than 20°C down to -10°C

BMS devices.

T3 (Tropical climate).

Condenser coil guard.

Roof curb.

Metal / aluminum filter.

Air pressure switch for indoor fan.

High static condenser fan option with sealed + drain.condensing section.

Optional water heating coil.

Metal or plastic mesh on condenser coil.

Optional supply / return air configurations.

Upgraded evaporator fan motor drives.

G4 filter, plate and bag filter.

Model				WRF120ZA	WRF140ZA	WRF150ZA	WRF180ZA	WRF210ZA	WRF300ZA
Model				WF120ZA	WF140ZA	WF150ZA	WF180ZA	WF210ZA	WF300ZA
Cooling capacity		kW/Ton/BTU		120/34/400000	140/40/480000	149/42.5/500000	180/51/620000	210/60/720000	298/85/1000000
Heating capacity		kW/Ton/BTU		128.3/36/430000	150/42/510000	159.2/45/540000	192.5/55/660000	226/64/770000	318/90/1100000
Energy regulation		%		0, 25, 50, 75, 100		0, 50, 100	0, 16.6, 33.3, 50, 66.4, 83, 100		0, 25, 50, 75,100
Power				380V / 3Ph / 50HZA
Cooling input capacity		kW		45.1	55.7	55.1	69.9	83	106.7
Heating input capacity		kW		41.7	51.8	51.5	64.8	77	100
Start current		A		218	252	323	232	301	415
Cooling running current		A		82.4	101.4	100.2	130.9	151	192.3
Heating running current		A		77.4	95.7	95.1	123.5	142.3	184.3
Throttling method				Thermal expansion valve
Cooling system				4	4	2	6	6	4
Refrigerant				R410A
Compressor	Compressor type			Hermetic scroll compressor 380V / 3Ph / 50HZA
Compressor	Qty			4	4	2	6	6	4
Condensation side
Condenser	Type			Copper pipe copper fin
Fan	Qty			2	2	2	4	4	4
	Drive type			Direct drive
	Motor power		kW	2X1.5	2x2.2	2x2.2	4X1.1	4X1.5	4x2.2
	Air volume		m3 /h	42000	54000	54000	66000	84000	108000
Evaporation side
Evaporator	Type			Copper pipe copper fin
	Qty			1	1	1	1	1	1
	Motor power		kW	7.5	11	11	15	15	18.5
	Air volume		m3 /h	21000	25000	26000	32000	38000	54000
	Drive type			Pulley
Static pressure（Pa）				400	400		500	500	500
Filter				Aluminum filter G3
Noise dB(A)				75	79	79	80	80	82
Refrigerant filling volume（kg）				4x7.5	4x8.5	2x17	6x7.5	6x8.5	4x14
External dimension	L		mm	3626	3626	3626	4690	4690	5660
	W		mm	2200	2200	2200	2330	2330	2330
	H		mm	2047	2047	2047	2055	2427	2055
Weight			kg	1710	1820	1850	2180	2430	2860

Note: 1. Nominal cooling capacity is under nominal air volume, indoor DB/WB temperature is 27℃/19℃ and outdoor DB/WB temperature is 35℃/24℃ condition;

2. Nominal heating capacity is under nominal air volume, indoor DB/WB temperature is 20℃/15℃ and outdoor DB/WB temperature is 7℃/6℃ condition;

Factory, hospital, marine, office building, shopping mall...
