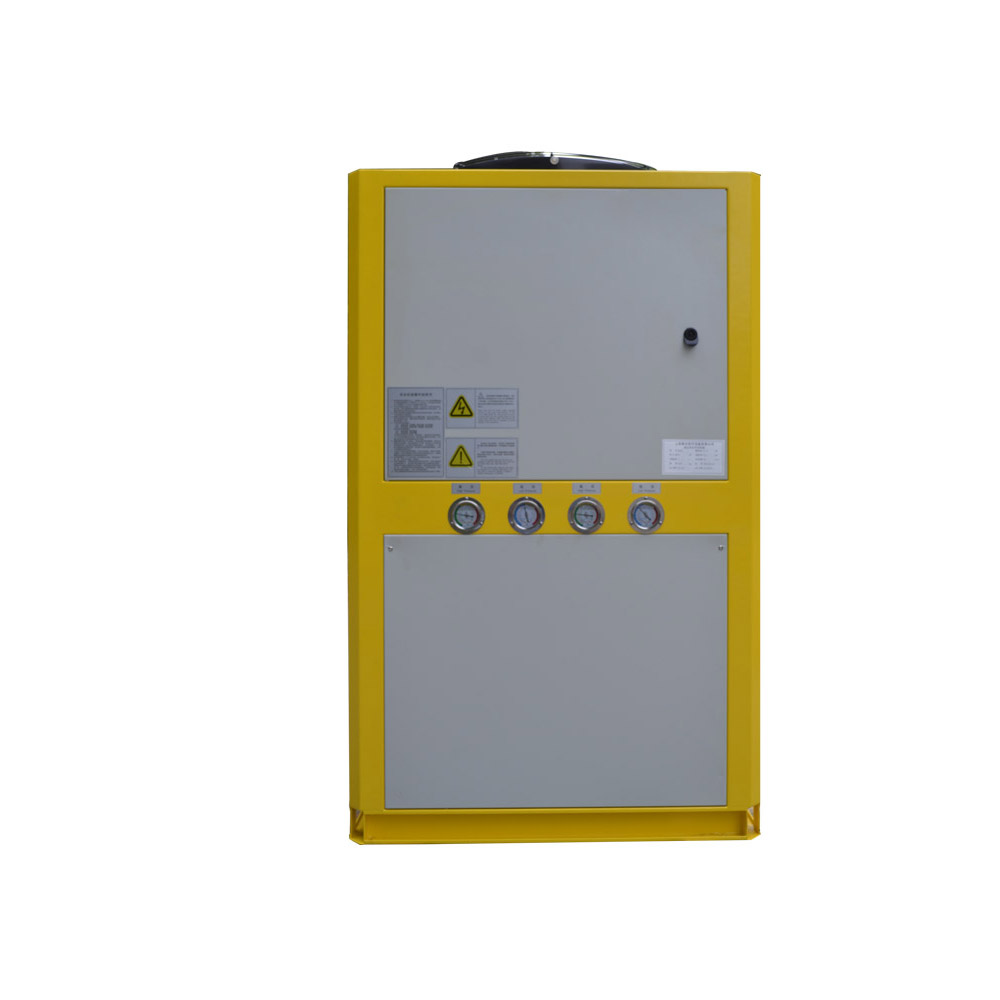

Chemical Industry Air Cool Scroll Low Temperature Chiller

In case you do not find the type or model in the website We can customized according to your request.
Contact Now

TEL:0086-21-35324169
FAX:0086-21-35324166
Email:sales@shenglintec.com
WhatsApp:0086 13916147965
Mob:0086 13916147965

Features
Technical Data
Application
Certification
Part List
Reference

Products Features

1. Scroll hermetic compressor: international brand with free maintenance.

2. Electrical elements and refrigeration components are used from world-renowned brand.

3. Industrial and durable design, with stainless steel water tank and high-lift pumps.

4. Perfect breakdown protection: high and low pressure protection, air discharge protection, oil level protection, water flow protection, reverse and lack phase protection, chilled water anti-freezing protection, cooling water overheat protection.

Friendly choose to use environmentally R407C, R134A or R404A refrigerant ect.

Product options

1. Salt water evaporator

2. Special power supply

3. Remote communication connector

Air cooled chiller box type (-15℃) technical parameter

SP-
Type			05ASZY	08ASZY	10ASZY	12ASZY	15ASZY	20ADZY	25ADZY	30ADZY	40AQZY
Nominal cooling capacity		kw	5.3	7.4	10.6	12.3	13.5	21.2	24.6	27.0	42.4
Nominal cooling capacity		104 kcal/h	0.5	0.6	0.9	1.1	1.2	1.8	2.1	2.3	3.6
Machine power kw			5.5	8.2	10.6	12.3	13.4	20.2	24.7	27.3	41.5
Machine operating current A			10.5	15.6	19.6	22.8	25.2	37.9	45.6	51.3	77.1
Compressor	Quantity		1	1	1	1	1	2	2	2	4
	Input power(kw)		4.7	7.2	9.1	10.7	11.8	18.2	21.4	23.6	36.4
	Rated current(A)		8.8	13.3	16.8	19.8	21.8	33.7	39.6	43.7	67.3
Evaporator	Type		High efficiency dry type shell and tube heat exchanger
	Flow(L/min)		19	27	38	44	48	76	88	97	152
	Interface size		DN32	DN32	DN40	DN40	DN50	DN50	DN50	DN65	DN65
Condenser	Type		High efficiency fin type heat exchanger
Condensation axial fan	Fan quantity		1	2	2	2	2	6	4	4	8
	Fan power(kw)		0.2	0.5	0.9	1.1	1.1	1.3	2.2	2.2	3.6
	Operating current(A)		0.6	1.2	1.7	1.9	2.3	2.8	3.8	4.6	6.8
Chilled water pump	Type		High efficiency, low noise centrifugal water pump
	Input power(kW)		0.55	0.55	0.55	0.55	0.55	0.75	1.10	1.50	1.50
	Head(mH2O)		23	21	20	21	19	23	24	23	22
Overall dimensions	Length(mm)		1150	1500	1550	1550	1670	2000	2100	2300	3000
	Width(mm)		800	1000	1100	1100	1150	1300	1350	1450	1600
	Height(mm)		1090	1290	1410	1410	1610	1550	1550	1820	2000
Weight	Machine weight(kg)		260	290	370	470	620	850	1080	1280	1380
Weight	Operating weight(kG)		340	405	500	600	830	1080	1330	1590	1710

Cooling condition: Chilled water inlet/outlet temperature -10/-15 ℃, ambient dry bulb temperature 35℃
Chilled water side should be added by 40% glycol water or 25% calcium chloride as anti-freeze.

Application: It is mainly used to cool down the chemical reaction kettle (chemical heat exchanger), and take away the huge heat produced by chemical reaction in time so as to achieve the purpose of cooling (cooling), so as to improve the product quality and production efficiency.

Country: Bolivia
Chiller type: water cooled
Cooling capacity: 130kW
Cooling medium: R407C
Supply power: 3P-380V-50Hz
Compressor brand: COPELAND
Compressor type: scroll
Water outlet tem.: 7℃

Country: Philippines
Chiller type: air cooled
Cooling capacity: 130kW
Cooling medium: R22
Supply power: 3P-380V-60Hz
Compressor brand: COPELAND
Compressor type: scroll
Water outlet tem.: 7℃

Country: Malaysia
Chiller type: water cooled
Cooling capacity: 175kW
Cooling medium: R22
Supply power: 3P-380V-50Hz
Compressor brand: HANBELL
Compressor type: screw
Water outlet tem.: 7℃

Country: UAE
Chiller type: air cooled
Cooling capacity: 41kW
Cooling medium: R22
Supply power: 3P-380V-50Hz
Compressor brand: COPELAND
Compressor type: scroll
Water outlet tem.: 7℃
