Low Temperature Screw Chillers

In case you do not find the type or model in the website We can customized according to your request.
Contact Now

TEL:0086-21-35324169
FAX:0086-21-35324166
Email:sales@shenglintec.com
WhatsApp:0086 13916147965
Mob:0086 13916147965

Features
Technical Data
Application
Certification
Part List
Reference

Products features
1. Twin screw compressor brand is employed, with high efficiency, low noise level, less wearing and long operation time.

Four stage volume control or 0%-100% automatic regulation.
Use PLC microcomputer control from Germany SIEMENS. LCD touch screen, both English and Chinese human-machine interface.
Perfect breakdown protection: high and low pressure protection, air discharge protection, oil level protection, water flow protection, reverse and lack phase protection, chilled water anti-freezing protection, cooling water overheat protection.

Product options

Salt water evaporator
Stepless energy regulation
Whole heat recovery/partial heat recovery
Pump control
Special power supply
Remote communication connector
Frequency conversion

Product specification
Refrigerant: R22/R407C/R134A/R410A
Evaporator max water pressure drop: 1.0Mpa
Evaporator: fouling factor 0.018m2.℃/KW
Power supply: 380V/3P/50Hz
Allowable voltage fluctuate: ±5%
Allowable frequency fluctuate: ±2%
The unit uses high efficiency heat exchanger with advanced, unique shape design and systems. Units can be installed directly on the roof, or other well-ventilated place outdoors, without a separate room, space saving construction. Compact shape, appearance, unit uses “W” type coil design, space utilization, small unit size, in order to adapt to the outdoor weather conditions to ensure that the unit has a good operating results during the life cycle.

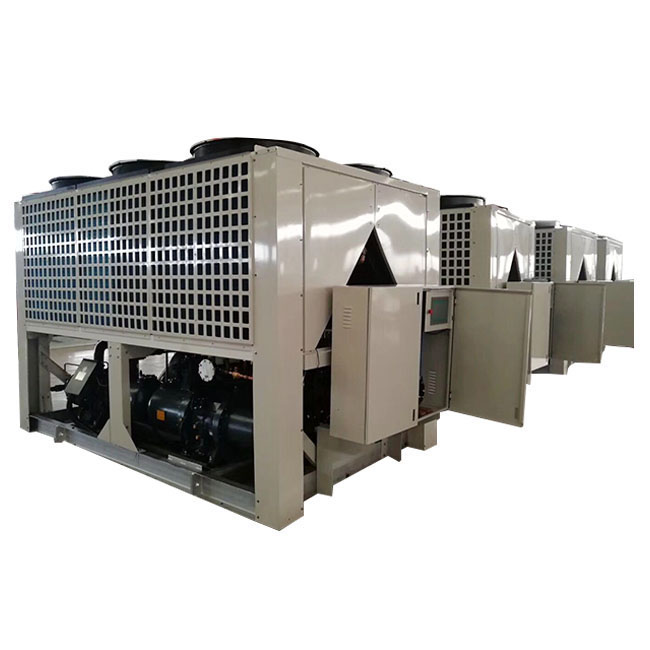

Low temperature air cooled screw chiller(single compressor) -5℃

SA-
Type		50SX	65SX	90SX	95SX	115SX	130SX	150SX	160SX	175SX	190SX
Nominal cooling capacity	kw	48.9	66.9	88.1	95.9	116.9	128.4	151.7	160.3	175.4	189.8
Nominal cooling capacity	104 kcal/h	4.2	5.8	7.6	8.3	10.1	11.1	13.1	13.8	15.1	16.3
Operating control method	Use PLC microcomputer control
Power Supply	380V/3N/50HZ
Startup type	Y-△
Machine power	kw	28.3	37.3	46.1	50.1	64.7	66.6	76.6	80.1	91.4	98.1
Machine operating current	A	47.5	61.9	76.8	85.7	105.8	114.1	131.6	137.5	157.9	167.5
Compressor	Type	Semi-closed 5:6 asymmetric twin-screw compressor
	Input power(kw)	25.0	32.9	41.3	45.3	55.1	60.0	67.6	71.1	78.2	85.3
	Rated current(A)	42.0	55.3	69.4	76.1	92.6	100.9	113.6	119.5	131.5	143.5
	Energy regulation	0-33%-66%-100%			0-25%-50%-75%-100%
Evaporator	Type	High efficiency dry type shell and tube heat exchanger
	Flow(L/min)	9.1	12.4	16.3	17.7	21.6	23.8	28.1	29.7	32.4	35.1
	Water pressure drop(kPa)	45.3	41.5	54.2	48.3	48.4	43.6	41.1	47.0	47.9	47.6
	Interface size	DN65		DN80		DN100
Condenser	Type	High efficiency fin type heat exchanger
	Fan quantity	6	8	8	8	6	6	6	6	6	8
	Stand-alone power	0.6	0.6	0.6	0.6	1.6	1.1	1.5	1.5	2.2	1.6
Refrigerant	Type	R22
Refrigerant	Refrigerant volume(kg)	10.9	14.8	19.5	21.3	25.9	28.5	33.6	35.6	38.9	42.1
Overall dimensions	Length(mm)	2500	2950	3000	3000	3500	3500	3700	3700	3700	4000
	Width(mm)	1400	1400	1400	1400	2150	2200	2200	2200	2200	2200
	Height(mm)	1925	2050	2170	2170	2050	2120	2210	2210	2120	2120
Weight	Machine weight(kg)	1900	2000	2200	2600	2850	3000	3200	3500	3800	3950
Weight	Operating weight(kG)	2200	2300	2500	2900	3150	3300	3500	3800	4100	4250

SA-
Type		210SX	245SX	260SX	290SX	310SX	325SX	380SX	415SX	440SX	500SX
Nominal cooling capacity	kw	208.8	248.8	262.7	287.8	311.8	323.9	377.4	414.2	442.4	498.7
Nominal cooling capacity	104 kcal/h	18.0	21.4	22.6	24.8	26.8	27.9	32.5	35.7	38.1	42.9
Operating control method	Use PLC microcomputer control
Power Supply	380V/3N/50HZ
Startup type	Y-△
Machine power	kw	109.3	124.6	130.8	148.1	157.3	161.7	183.0	200.6	218.9	242.6
Machine operating current	A	183.6	209.3	230.9	242.0	271.4	278.7	314.5	344.2	377.2	417.0
Compressor	Type	Semi-closed 5:6 asymmetric twin-screw compressor
	Input power(kw)	94.9	110.2	116.4	126.1	135.7	140.1	161.4	179.0	190.1	213.8
	Rated current(A)	159.6	185.3	195.7	212.0	228.2	235.5	271.3	301.0	319.6	359.4
	Energy regulation	0-25%-50%-75%-100%
Evaporator	Type	High efficiency dry type shell and tube heat exchanger
	Flow(L/min)	38.6	46.0	48.6	53.2	57.7	59.9	69.8	76.6	81.8	92.3
	Water pressure drop(kPa)	46.0	48.5	40.8	45.0	41.0	45.9	50.3	44.8	46.1	49.0
	Interface size	DN125				DN150				DN150
Condenser	Type	High efficiency fin type heat exchanger
	Fan quantity	8	8	8	10	12	12	12	12	16	16
	Stand-alone power	1.8	1.8	1.8	2.2	1.8	1.8	1.8	1.8	1.8	1.8
Refrigerant	Type	R22
Refrigerant	Refrigerant volume(kg)	46.3	55.2	58.3	63.8	69.1	71.8	83.7	91.9	98.1	110.6
Overall dimensions	Length(mm)	4200	4500	5000	5800	5800	6500	6500	6500	8000	8000
	Width(mm)	2200	2200	2200	2250	2200	2200	2200	2200	2200	2200
	Height(mm)	2250	2350	2350	2370	2350	2350	2450	2450	2450	2450
Weight	Machine weight(kg)	4350	4550	4850	5300	5500	5800	6250	6550	7350	7500
Weight	Operating weight(kG)	4650	4850	5150	5600	5800	6100	6550	6850	7650	7800

Cooling condition: Chilled water inlet/outlet temperature 0/-5 ℃, ambient dry bulb temperature 35℃
Temperature term: Chilled water outlet temperature -7℃~-5℃;
Chilled water side should be added by 25% glycol water or 20% calcium chloride as anti-freeze.

Application: It is mainly used to cool down the chemical reaction kettle (chemical heat exchanger), and take away the huge heat produced by chemical reaction in time so as to achieve the purpose of cooling (cooling), so as to improve the product quality and production efficiency.

Country: Bolivia
Chiller type: water cooled
Cooling capacity: 130kW
Cooling medium: R407C
Supply power: 3P-380V-50Hz
Compressor brand: COPELAND
Compressor type: scroll
Water outlet tem.: 7℃

Country: Philippines
Chiller type: air cooled
Cooling capacity: 130kW
Cooling medium: R22
Supply power: 3P-380V-60Hz
Compressor brand: COPELAND
Compressor type: scroll
Water outlet tem.: 7℃

Country: Malaysia
Chiller type: water cooled
Cooling capacity: 175kW
Cooling medium: R22
Supply power: 3P-380V-50Hz
Compressor brand: HANBELL
Compressor type: screw
Water outlet tem.: 7℃

Country: UAE
Chiller type: air cooled
Cooling capacity: 41kW
Cooling medium: R22
Supply power: 3P-380V-50Hz
Compressor brand: COPELAND
Compressor type: scroll
Water outlet tem.: 7℃
