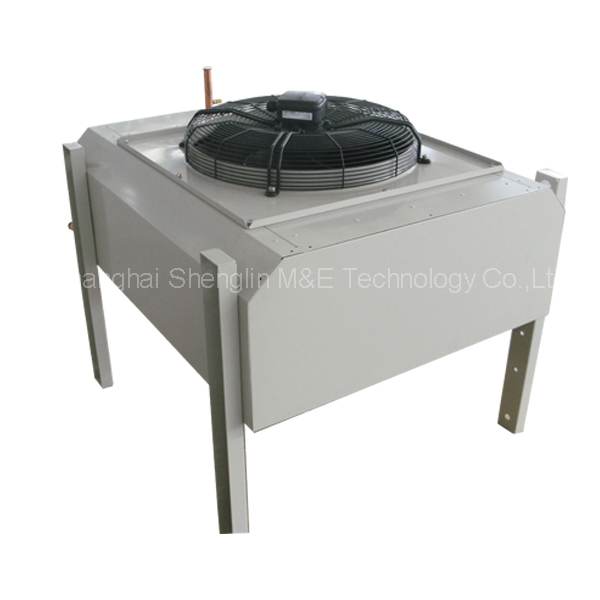

Air Cooled Condenser SHSL-C1 Series

In case you do not find the type or model in the website We can customized according to your request.
Contact Now

TEL:0086-21-35324169
FAX:0086-21-35324166
Email:sales@shenglintec.com
WhatsApp:0086 13916147965
Mob:0086 13916147965

Features
Technical Data
Application
Certification
Part List
Reference

Air discharge direction
Performance ranges	Cooling capacity: from 10 to 285 kw Air volume: from 2819 to 64356 m3/h Sound pressure level: from 31 to 64 dB A(10m) Air cooled condensers:customized on demand
High efficiency heat exchanger	Capacity designs for maximizing the heat transfer relative to the energy consumption of the fan. Tube and tube coupling design for low pressure drop in the coil on the media sides(maximum 100KPa at water designing condition). Our thermodynamic and aerodynamic designing software is long year tested and proved in Germany
Fan	Only choose low specific energy consumption fans. Fan nozzle designs for maximum air flow and air throw. Our fans from the world`s leading manufacturer are practically proved to be reliable in operation and long lasting. Motor: protection class IP 54 and insulation class F. Voltage：400V/3N/50Hz Air separator for each fan.
Testing	Heat exchangers are supplied clean and tested at a pressure of 30 bars
Options	Coil design refrigerant: R414A, R407C. Multiple circuits. Sub-cooling circuits. Stainless steel or aluminum casing. Coated aluminum or copper fins and anti-corrosion expoxy fin. Explosion ploof motor. Customized fin spacing.

Technical parameter
Air cooled condenser SHSL-C1 series parameter(fin space 2.1mm)

Type				SHSL-C1-010-1X350	SHSL-C1-012-1X350	SHSL-C1-013-1X350	SHSL-C1-018-1X450	SHSL-C1-021-1X450	SHSL-C1-024-1X450	SHSL-C1-027-1X500	SHSL-C1-032-1X500	SHSL-C1-038-1X500
Capacity	R404A	△	KW	10.02	11.58	13.10	17.79	20.99	24.32	27.07	31.55	37.60
		Y
	R22	△		9.76	11.19	12.47	17.55	20.46	23.44	26.57	30.84	36.11
		Y
Air flow		△	M3/h	2819	2682	2456	5945	5560	5053	8415	8111	7556
		Y
Fan motor		Phase		1	1	1	3	3	3	3	3	3
		△	W	140	140	140	540	540	540	830	830	830
		Y
		△	A	0.60	0.60	0.60	1.10	1.10	1.10	1.45	1.45	1.45
		Y
Fan		No. X φ		1x1x350	1x1x350	1x1x350	1x1x450	1x1x450	1x1x450	1x1x500	1x1x500	1x1x500
Sound pressure level		△	dB(A)	31	31	31	43	43	43	49	49	49
		Y	10m
Dimension		L	mm	870	870	870	1020	1020	1020	1220	1220	1220
		W	mm	525	525	525	625	625	625	825	825	825
		H	mm	797	797	797	820	820	820	870	870	870
		A	mm	690	797	797	840	820	820	1040	870	870
		B	mm	--	--	--	--	--	--	--	--	--
		C	mm	--	--	--	--	--	--	--	--	--
		D	mm	490	490	490	490	490	490	490	490	490
Inlet φ			mm	15.88	15.88	15.88	19.05	19.05	19.05	22.2	22.2	22.2
Inlet φ			mm	12.7	12.7	12.7	15.88	15.88	15.88	19.05	19.05	19.05
Product weight(empty)			kg	38	39	43	53	56	61	80	84	92

Type				SHSL-C1-050-1X630	SHSL-C1-060-1X630	SHSL-C1-073-1X630	SHSL-C1-097-2X630	SHSL-C1-117-2X630	SHSL-C1-142-2X630	SHSL-C1-142-2X630	SHSL-C1-178-3X630	SHSL-C1-235-4X630	SHSL-C1-285-4X630
Capacity	R404A	△	KW	50.37	60.48	72.75	97.45	117.41	142.44	177.81	215.08	234.82	284.89
	R404A	Y		37.77	45.36	54.56	73.08	88.06	106.83	133.35	161.31	176.12	213.67
	R22	△		49.90	59.49	70.14	97.05	116.05	137.95	169.21	204.51	232.09	275.89
	R22	Y		37.43	44.62	52.61	72.79	87.03	103.46	126.91	153.38	174.07	206.92
Air flow		△	M3/h	18206	17477	16087	36414	34958	32178	52435	48266	69916	64356
Air flow		Y	M3/h	14565	13982	12870	29131	27966	25742	41948	38613	55933	51485
Fan motor		Phase		3	3	3	3	3	3	3	3	3	3
		△	W	2750	2750	2750	8250	8250	8250	8250	8250	8250	8250
		△		2750	2750	2750	8250	8250	8250	8250	8250	8250
		Y		1750	1750	1750	5250	5250	5250	5250	5250	5250	5250
		△	A	5.10	15.30	15.30	15.30	15.30	15.30	15.30	15.30	15.30	15.30
		Y	A	3.00	9.00	9.00	9.00	9.00	9.00	9.00	9.00	9.00	9.00
Fan		No. X φ		1x1x630	1x1x630	1x1x630	2x1x630	2x1x630	2x1x630	3x1x630	3x1x630	2x2x630	2x2x630
Sound pressure level		△	dB(A)	59	59	59	61	61	61	63	63	64	64
Sound pressure level		Y	10m	52	52	52	54	54	54	56	56	57	57
Dimension		L	mm	1530	1530	1530	2830	2830	2830	4130	4130	2880	2880
		W	mm	1085	1085	1085	1085	1085	1085	1085	1085	2100	2100
		H	mm	920	920	920	920	920	920	920	920	1070	1070
		A	mm	1340	1340	1340	--	--	--	--	--	--	--
		B	mm	--	--	--	1340	1340	1340	1340	1340	1340	1340
		C	mm	--	--	--	1300	1300	1300	1300	1300	1300	1300
		D	mm	640	640	640	640	640	640	640	640	640	640
Inlet φ			mm	28.58	28.58	34.93	34.93	41.28	41.28	53.98	53.98	53.98	66.67
Inlet φ			mm	22.22	22.22	28.58	22.22	34.93	34.93	41.28	41.28	41.28	41.28
Product weight(empty)			kg	171	178	193	296	311	337	442	482	498	554

Process engineering, heat / power plant, power generation, chemical industry, air conditioning chiller, heat transformer, smelting, etc.. It is suitable for all equipment which needs heat dissipation and is installed in the open air.

Country: Algeria Application: Cooling water from injection molding machine Cooling capacity: 694kW Cooling medium: water Supply power: 400V/3P/50Hz Fan brand: Ziehl-Abegg	Country: Armenia Application: for plastic caps of beverages factory Cooling capacity:70kW Cooling medium: 34% ethylene glycol Supply power: 380V/3P/50Hz Fan brand: Chinese brand	Country: Mongolia Application: match with precision air conditioner Cooling capacity: 17.6kW Cooling medium: 34% ethylene glycol Supply power: 400V/3P/50Hz Fan brand: Ziehl-Abegg	Country: Singapore Application: match with fruit and vegerable freezer Cooling capacity: 14.6kw, 17kw and 29.37kw Cooling medium: 20% ethylene glycol Supply power: 230V/1P/50Hz Fan brand: Ziehl-Abegg

Country: Russia Application: for equipment Cooling capacity: 180kW Cooling medium: water Supply power: 380V/3P/50Hz Fan brand: Chinese brand	Country: Russia Application: ore yard Cooling capacity: 493kW Cooling medium: 20% ethylene glycol Supply power: 400V/3P/50Hz Fan brand: Ziehl-Abegg	Country: Hongkong Application: power plant Cooling capacity: 363kW Cooling medium: water Supply power: 415V/3P/50Hz Fan brand: Chinese brand	Country: China Application: plant Cooling capacity: 52kW Cooling medium: 30% ethylene glycol Supply power: 380V/3P/50Hz Fan brand: Chinese brand
