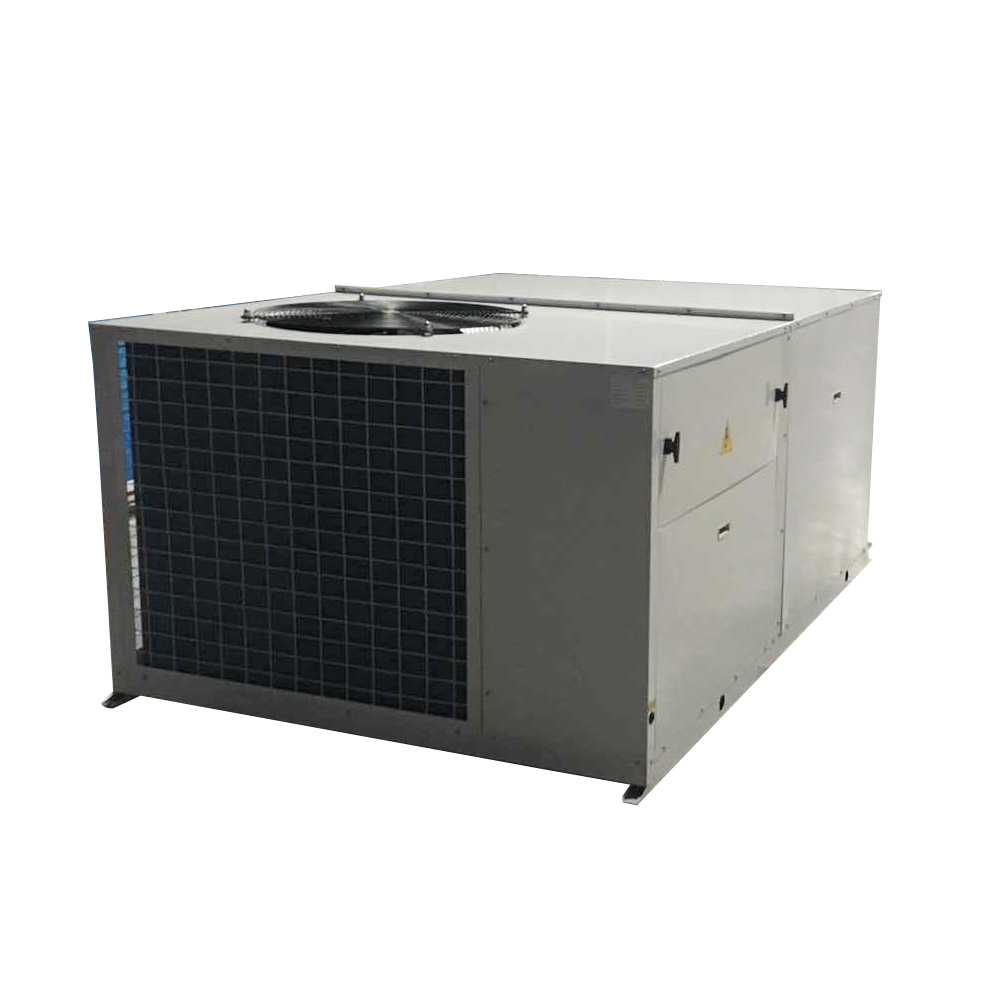

Rooftop Air Conditioner/Central Type Air Conditioner

Spare parts of Rooftop pacakged unit

No

Name

Brand

1

Comperssor

SANYO

2

Heat exchanger(evaporator is hydrophilic aluminum foil type. Condenser is plate heat exchanger，shell and tube heat exchanger or coaxial heat exchanger)

Shenglin

3

4-way valve

Hualu

4

Axial fan

Ruibo

5

Centrifugal fan

Qineng

6

Gas-liquid separator

Tongli

7

Reservoir

Tongli

8

Expansion valve

EMERSON

9

Filter

Taohua

10

one-way valve

Taohua

11

HP/LP switch

Taohua

12

Breaker

SCHNEIDER

13

AC contactor

SCHNEIDER

14

Relay

SCHNEIDER

15

Phase sequence protector

SCHNEIDER

   GT-WKR Series-Roof Top AC Specifiaction 1

Model   GT-WKR-

40

50

60

70

90

110

120

Specification

Cooling capacity 1*

kW

42.0

52.8

61.2

70.2

87.5

105.1

122.5

Heating capacity  2*

kW

44.1

55.4

62.5

73.8

92.8

112.0

130.0

Supply air 3*

m3/h

7000

8600

10000

12000

14500

17000

20000

Static pressure 3*

Pa

300

300

300

350

350

400

400

Noise 4*

dB(A)

68

69

69

70

71

72

72

Power

3N-380V-60Hz

Total capacity

17.24

20.72

23.0

29.76

39.1

44.66

51.58

Color

White

cooling system

Compressor

Type

Efficient scroll closed

Quantity

2

2

2

2

2

4

4

Supply air fan

Type

Low noise centrifugal type

Capacity

kW

2.2

3

4

4

5.5

7.5

7.5

Evaporator

Type

Inner grooved copper tube and aluminum fin

Fin type 5*

Slotted fin hydrophilic aluminum fin

Condenser

Type

Inner grooved copper tube and aluminum fin

Fin type 5*

Rippled hydrophilic aluminum fin

Condenser fan

Type

Low noise axial type

Quantity

2

2

2

4

4

4

4

Refrigerant

Refrigerant

R22/R407C

Refrigerant control

External balance type thermal expansion valve

Air filter

Initially effect plate filter

Dimensions

L

mm

2200

2600

2600

3200

3200

6000

6000

W

mm

1800

2200

2200

2200

2200

2300

2300

H

mm

1520

1700

1700

1900

1900

2300

2300

Weight

kg

850

1100

1250

1400

1650

1850

2200
