Introduction

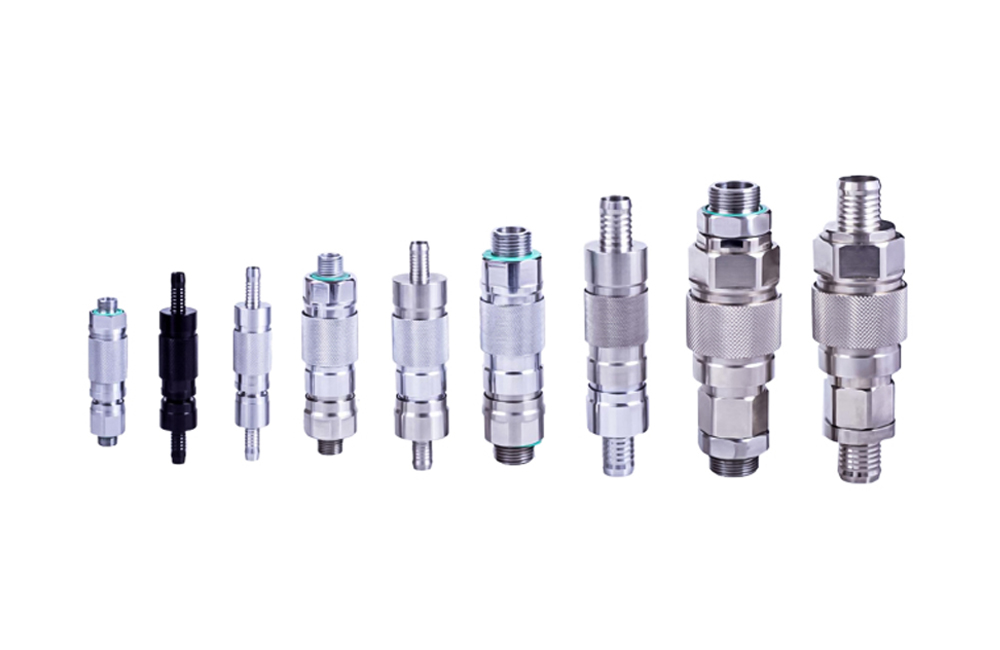

Quick connect fittings are connectors used in data center cooling systems that are designed to enable fast and reliable connections and disconnections. They typically consist of two parts: a female head and a male head. The female head is fixed onto the equipment, while the male head connects to the cooling pipeline.

The primary function of quick connect fittings is to simplify the maintenance and operation of the cooling system. By using quick connect fittings, personnel can quickly connect and disconnect cooling pipelines without the need for tools or cumbersome procedures. This is particularly useful for daily maintenance, equipment replacement, or emergency repairs.

Additionally, quick connect fittings can provide reliable sealing performance to ensure the proper functioning of the cooling system. They often utilize sealing rings or gaskets to prevent fluid leaks and maintain the efficiency of the cooling system.

Key Features

· Excellent Design for Leak-free and Great Flow : Ensures the safety of both the equipment and the users, preventing any fluid leakage that may occur when the circuit is disconnected.Guarantees the maximum flow/pressure drop ratio, ensuring exceptional flow performance.

· Compact and lightweight structure : Plug-and-play structure allows for easy one-handed operation during installation, as the female connector locks automatically when the male connector is inserted, without unlocking action.

· Effective sealing solutions : Highly compatible with various fluids,Versatile seal ring material options,Wide temperature range coverage.The fixed structure of the radial seal O-ring in the male/female cavity is reliable even under high fluid pressure, as it is not easily dislodged or contaminated by external contact.|

Common Features:

· Seal material: Fluoro-silicone rubber

· Insertion and withdrawal lifespan: 1000 cycles

· Flow direction: Bi-Directional

· Working media: Antifreeze, deionized water, fluoride solution, etc.

· Operating ambient temperature: -55°C to 150°C

· Operating media temperature: -40°C to 85°C

G1/2(DN12) Diameter: Ø12mm Maximum Operating Flow: 20L/Min Maximum Pressure Rating for Mate and Unmate: 1.0Mpa Maximum Working Pressure: 2.5Mpa Insertion and Withdrawal Force: F<70N Body Material: Stainless steel, with electroplating surface treatment Maximum Outer Diameter: Ø32mm	G3/4(DN16) Diameter: Ø16mm Maximum Operating Flow: 40L/Min Maximum Pressure Rating for Mate and Unmate: 1.0Mpa Maximum Working Pressure: 2.5Mpa Insertion and Withdrawal Force: F<85N Body Material: Stainless steel, with electroplating surface treatment Maximum Outer Diameter: Ø47.3mm	DN2 Diameter: Ø2mm Maximum Operating Flow: 0.6L/Min Maximum Pressure Rating for Mate and Unmate: 1.0Mpa Maximum Working Pressure: 2.5Mpa Insertion and Withdrawal Force: F<35N Body Material: Stainless steel, with electroplating surface treatment Maximum Outer Diameter: Ø12mm

DN5 blind plug Diameter: Ø5.5mm Maximum Operating Flow: 4.5L/Min Maximum Pressure Rating for Mate and Unmate: 1.0Mpa Maximum Working Pressure: 2.5Mpa Insertion and Withdrawal Force: F<45N	G1/8(DN5) Diameter: Ø5.5mm Maximum Operating Flow: 4.5L/Min Maximum Pressure Rating for Mate and Unmate: 1.0Mpa Maximum Working Pressure: 2.5Mpa Insertion and Withdrawal Force: F<45N Body Material: Aluminum, with hard anodized black surface or stainless steel, with electroplating surface treatment Maximum Outer Diameter: Ø18mm	G1/4(DN9) Diameter: Ø9mm Maximum Operating Flow: 14L/Min Maximum Pressure Rating for Mate and Unmate: 1.0Mpa Maximum Working Pressure: 2.5Mpa Insertion and Withdrawal Force: F<60N Flow Direction: Bi-Directional Body Material: Stainless steel, with electroplating surface treatment Maximum Outer Diameter: Ø27mm
