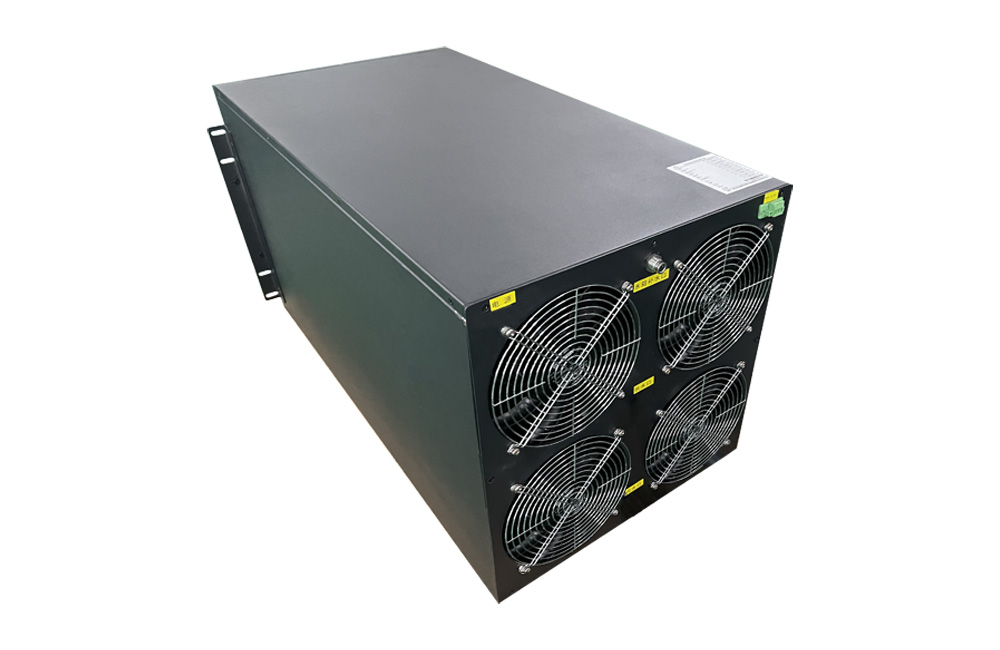

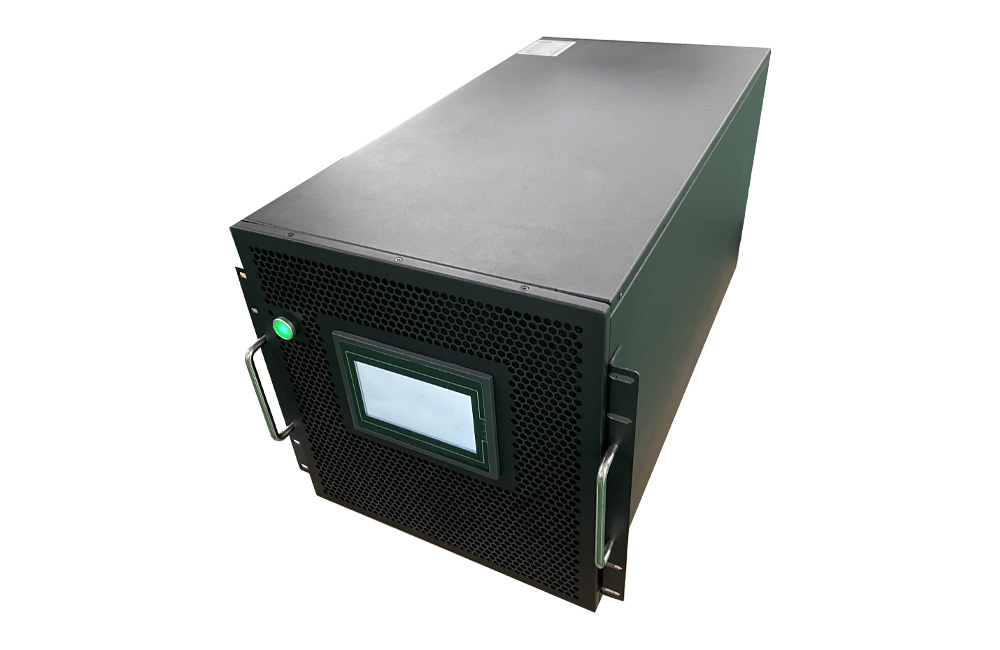

Rackmount Air-Liquid CDU

    The air-liquid heat exchanger in the liquid-cooled CDU uses air to cool the circulating medium directly. It consists of a high-efficiency copper tube and aluminum fin heat exchanger on the air side, along with an EC fan. The secondary side includes a variable frequency circulating pump, temperature sensors, pressure sensors, filters, and flow meters (optional). This product is pre-installed and commissioned at the factory for easy rack mounting and use. It also features an external interface with quick-release chuck (standard), quick plug connector (optional), and terminal structure for simplicity and convenience.

Performance range

· Heat transfer quantity：8~16kW


Features

· 7-inch touch screen, multi-level authority control;

· (Optional) Double back-up high-efficiency variable-frequency pumps, automatic flow rate adjustment；

· Corrosion-resistant 304 stainless steel and above material piping components;

· Shenglin liquid-cooled intelligent control system, temperature monitoring, pressure monitoring, anti-condensation control, safe and reliable;

· Standard RS485 communication interface, rich detection, alarm and protection functions in the system, automatic protection of set parameters, power-down will not lose the operating parameters and alarm records;

· Provide standard communication protocols, can be customized according to customer demand for special format monitoring protocols.

Our Advantages

    With Shenglin's cutting-edge design, the CDU enhances the efficiency and dependability of the water cooling system. It boasts six channels that link the main pipeline to the secondary water separator of the water-cooled cabinet, eliminating installation and production errors with the use of clamps and rubber hoses.

    Shenglin's CDU features a multi-stage centrifugal pump for circulating industrial water, ensuring a smooth and reliable flow of coolant. An expansion tank is integrated into the CDU to compensate for temperature fluctuations, maintaining consistent pressure levels and ensuring the system's reliable operation.

    To prevent issues like oxidation corrosion, inadequate circulation, and cavitation of the circulation pump, Shenglin's CDU includes an automatic air vent valve on the top of the makeup water tank/main pipeline. This valve promptly eliminates non-condensable gases from the system.

    Furthermore, Shenglin’s CDU is equipped with a 150μm filter in its main path to preserve the quality of the coolant, guaranteeing the steady and secure operation of the entire system.
