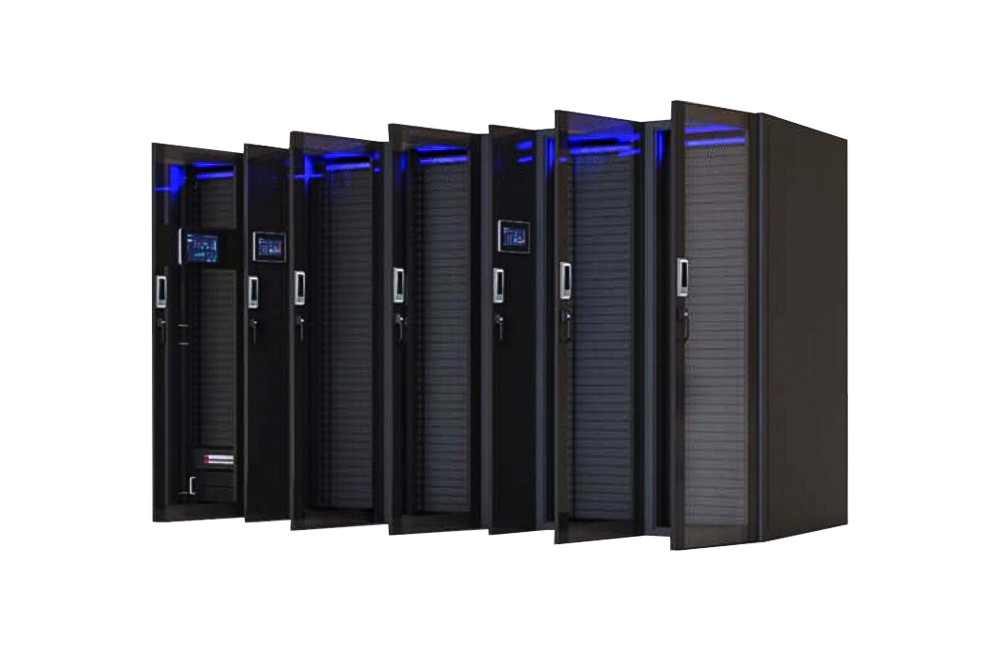

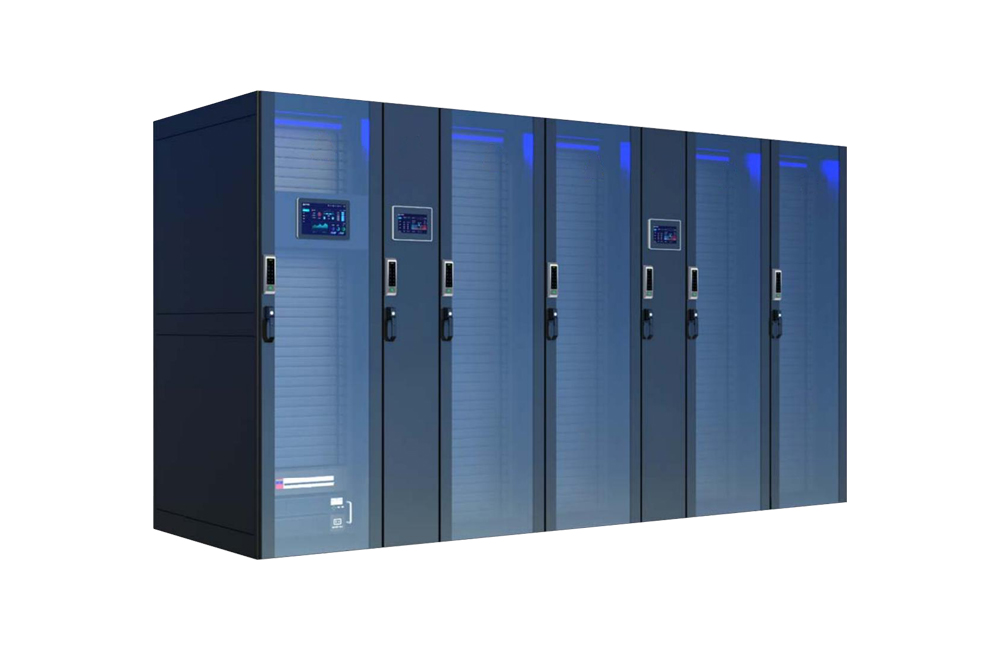

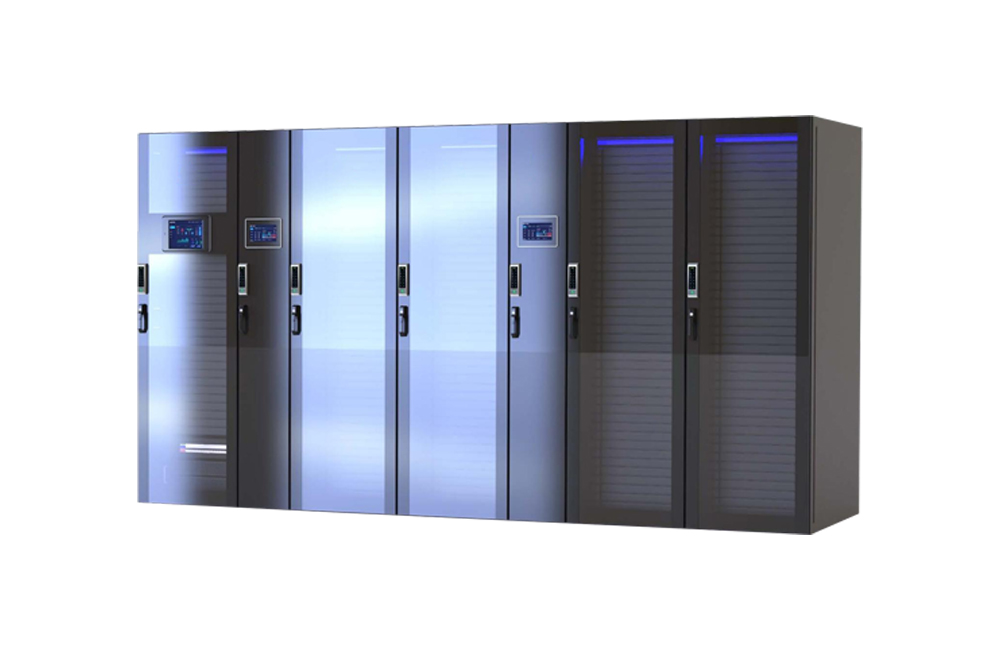

Single Row Modular Data Center

Introduction

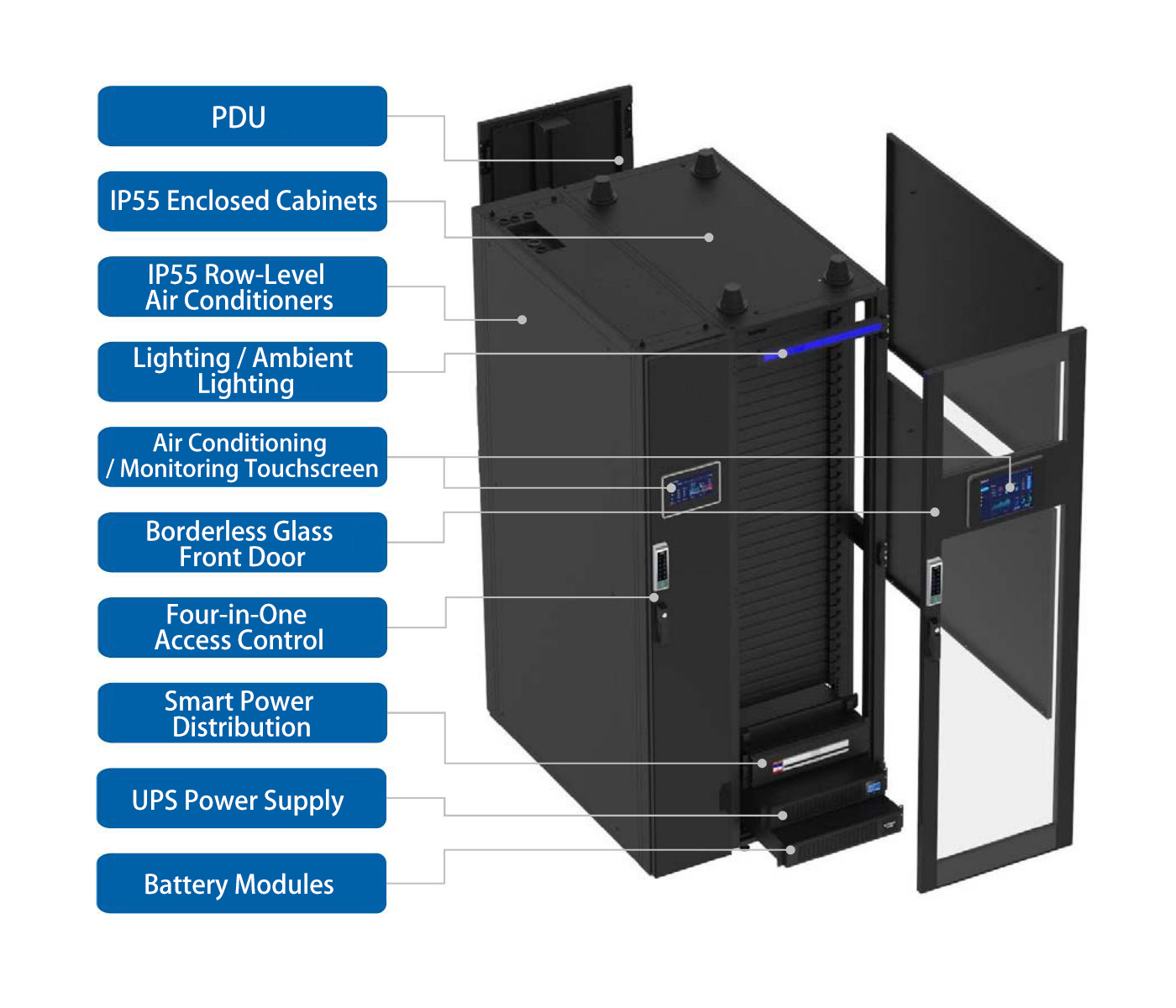

    This system is a micro-module data center, integrating server rack systems, enclosed aisle systems, precision air conditioning, UPS power distribution systems, environmental monitoring systems, security systems, and more. With a fully modular architecture, it can be flexibly configured according to customer requirements (such as power density, number of IT devices, reliability level, PUE metrics, etc.), providing excellent infrastructure support for IT equipment.

Technical Specifications Table
Model	6T	10T	20T	20S	30S	Customization
Cabinets	1	3	5	5	7	≤20
Power Density -kw/unit	3	3	3	4	4	≤20kw/unit
Redundancy Type	N	N	N	N	N+1	N/N+1/2N
Depth-mm	1200	1200	1200	1200	1200	Customizable to 1400
Width-mm	600	600	600	600	600	Optional 800
Height-mm	2000	2000	2000	2000	2000	Customizable to 2200 -47U
Power System
UPS -kVA	6	10	20	20	30+30	3~200
Total Input Power Specification	63A/1P 220V~50Hz	63A/3P 380V~50Hz	63A/3P 380V~50Hz	100A/3P 380V~50Hz	100A/3P 380V~50Hz	Customizable
Cooling System
Cooling Type	Air Cooling	Air Cooling	Air Cooling	Air Cooling	Air Cooling	Air Cooling/Liquid Cooling
Cooling Capacity-kW	3.5	7.5	7.5+7.5	21.2	25+25	3.5~65
Cooling Type	Rack-mounted	Rack-mounted	Rack-mounted	Row-level	Row-level	Rack-mounted /Row-level
Management System
Environmental Monitoring System	UPS, Power Distribution, Precision Air Conditioning, 10-inch Touchscreen, Temperature & Humidity, Smoke Detection, Water Leakage, Door Contact					Optional: Audio-Visual/ SMS Alerts, App, Centralized Monitoring, etc.
Security System	Four-in-One Access Control System					Optional: Video Surveillance, Fire Protection

（1）Air Conditioning System
    · Rack-mounted Split Unit: 3.5kW, 7.5kW, 12.5kW
    · Rack-mounted Integrated Unit: 3.5kW, 5kW
    · Row-Level Units: 12.8kW, 21.2kW, 25.1kW, 31.1kW, 40.9kW, 51.2kW, 65.7kW

（2）Cabinet System
    · Cabinet Dimensions: Width: 600/800mm; Depth: 1200mm; Height: 2000mm
    · Cabinet Access Control: Four-in-One Smart Access Control (Fingerprint + Password + ID Card + Mechanical Lock)
    · Other Accessories: Ambient Lighting, Lighting, 1U Blank Panel, Shelf, L-shaped Rails, Cable Management Rack, Cable Ties, Top Cable Tray, IP55 Adaptation Components, etc.

（3）UPS Power Supply System
    · UPS: Rack-mounted: 3~60kVA
    · Modular UPS: 15~200kVA
    · Batteries: Lead-acid Batteries, Lithium Batteries
    · Power Distribution Module: Rack-mounted design, supports custom configurations, includes surge protection, monitoring

（4）Monitoring and Security
    · Monitoring Sensors: Temperature & Humidity, Smoke Detection, Water Leakage, Door Contact, Audio-Visual Alarms, SMS Alerts, Mobile App, Centralized Monitoring System
    · Video Surveillance: Cameras, NVRs, and Hard Drives
    · Fire Protection: Rack-mounted Gas Fire Extinguishing System
