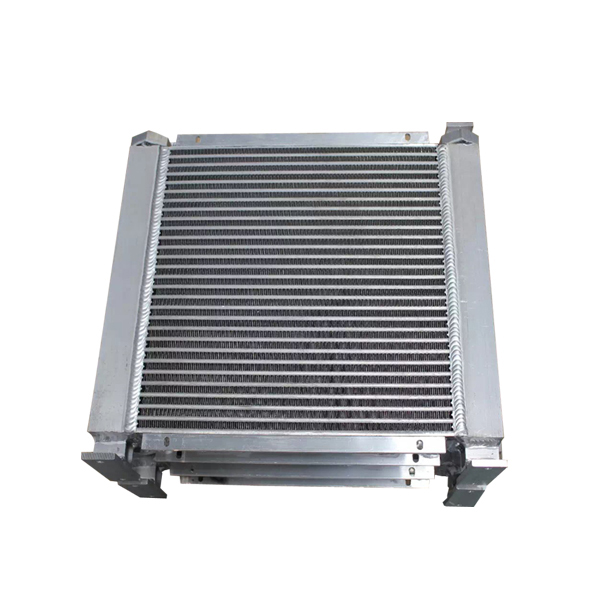

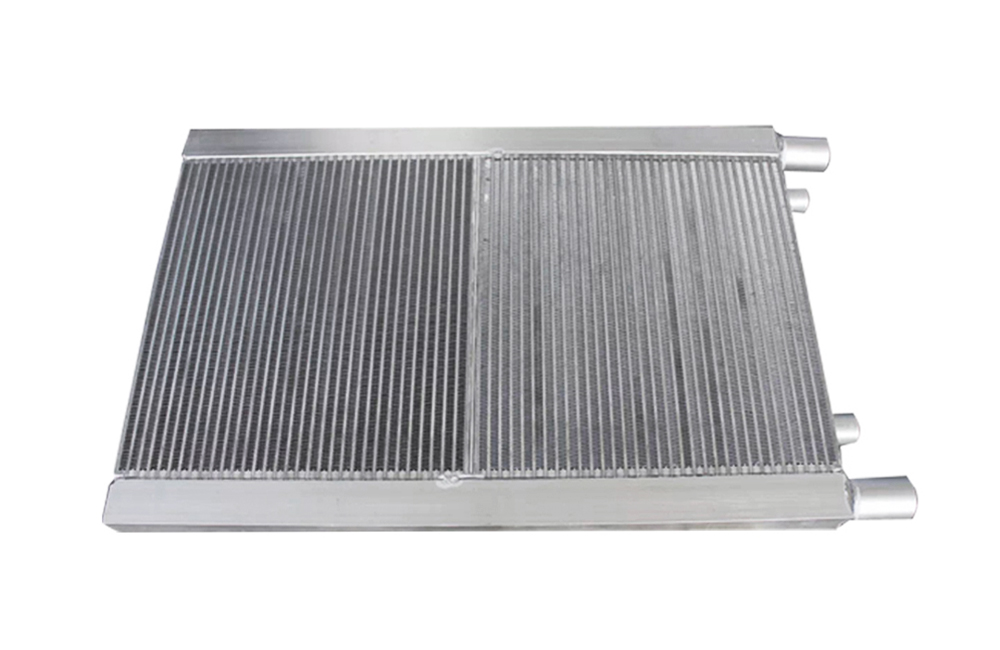

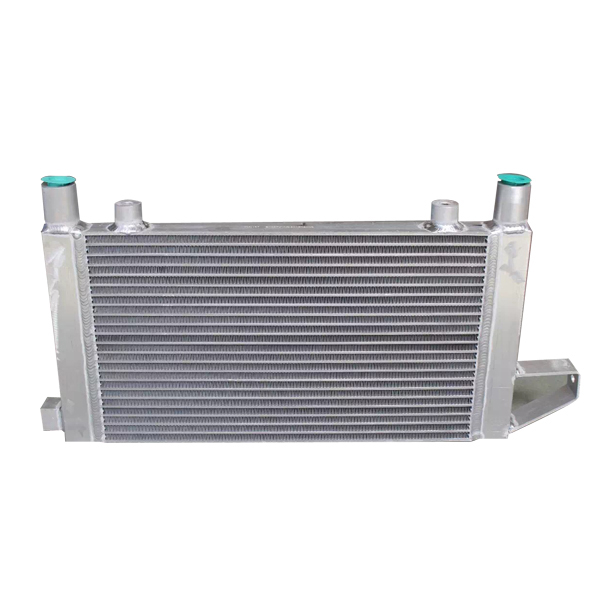

Bar and Plate Heat Exchanger
Contact Now
- TEL:0086-21-35324169
- FAX:0086-21-35324166
- Email:sales@shenglintec.com
- WhatsApp:0086 13916147965
- Mob:0086 13916147965
Saving investment costs
Less space occupation
Plates can be increased or decreased flexibly as required
Convenient maintenance
Light weight
Fin type
|
Type |
Fin Type |
Height mm |
Pitch mm |
Thickness mm |
|
Lover |
Out fin |
8 |
2.0/2.5/3.0 |
0.1/0.15/0.2 |
|
9 |
||||
|
9.5 |
||||
|
10.3 |
||||
|
11.3 |
||||
|
12 |
||||
|
Sawtooth |
Inner fin |
2.5 |
1.4/1.7/2.0/2.5/3.0 |
0.15/0.2/0.25/0.3 |
|
Name of product |
Model |
Core size（mm） |
radiating area（㎡） |
Outline size（mm） |
Installation Size（mm） |
Complement |
||||
|
Height |
Width |
Thick |
Height |
Width |
Thick |
|||||
|
Water radiator assembly |
07-18 |
800 |
830 |
90 |
50 |
1055 |
950 |
395 |
866×160 |
Grade |
|
07-21A |
820 |
866 |
90 |
50 |
1305 |
950 |
453 |
866×160 |
Grade |
|
|
07-28 |
820 |
866 |
90 |
50 |
1312 |
950 |
533 |
890×160 |
Grade |
|
|
07-37 |
588 |
742 |
90 |
25 |
846 |
930 |
313 |
880×160 |
Grade |
|
|
931 |
680 |
691 |
90 |
30 |
941 |
930 |
341 |
850×182 |
Loader |
|
|
951/3 |
880 |
789 |
90 |
55.8 |
1175 |
900 |
522 |
824×182 |
Loader |
|
|
ZL50 |
900 |
830 |
144 |
72 |
1126 |
980 |
430 |
950×220 |
Loader |
|
|
ZL60 |
900 |
850 |
115 |
53 |
1192 |
1150 |
380 |
1100×182 |
Loader |
|
|
206 |
715 |
720 |
115 |
38.6 |
910 |
910 |
346 |
870×100 |
Road roller |
|
|
146 |
640 |
700 |
90 |
26.6 |
895 |
910 |
296 |
870×100 |
Road roller |
|
|
04-48 |
460 |
610 |
130 |
34 |
1089 |
812 |
375 |
778×160 |
Road roller |
|
|
04-52 |
360 |
610 |
140 |
28.5 |
1089 |
812 |
360 |
778×160 |
Road roller |
|
|
50 |
590 |
692 |
90 |
25 |
795 |
818 |
325 |
760×180 |
Milling planer |
|
|
100 |
670 |
832 |
90 |
35 |
850 |
954 |
340 |
860×240 |
Milling planer |
|
|
130B-01 |
1000 |
873 |
115 |
72 |
1340 |
1100 |
495 |
1024×170 |
Milling planer |
|
|
400 |
960 |
893 |
115 |
65 |
1270 |
1060 |
260 |
1010×84 |
Mixers |
|
|
25K |
960 |
893 |
144 |
82 |
1327 |
1080 |
415 |
1010×84 |
Mixers |
|
|
XTSRQ |
742 |
602 |
90 |
28 |
927 |
720 |
386 |
615×150 |
Slurry packing machine |
|
|
404 |
1180 |
1043 |
144 |
116.5 |
1535 |
1130 |
428 |
1080×102 |
Horizontal directional driller |
|
|
680 |
960 |
866 |
115 |
68 |
1235 |
930 |
471 |
1850×220 |
Horizontal directional driller |
|
|
11-01 |
477 |
700 |
140 |
45 |
915 |
930 |
386 |
780×213 |
Rotating driller |
|
|
13-01 |
573 |
800 |
140 |
55 |
980 |
1100 |
493 |
1020×230 |
Rotating driller |
|
|
210 |
1040 |
984 |
144 |
112 |
1395 |
1110 |
590 |
1010×240 |
Cold-regenerating machine |
|
|
250KIII |
1056 |
880 |
144 |
88 |
1355 |
1080 |
626 |
1010×84 |
Cold-regenerating machine |
|
|
4YZ3 |
758 |
619 |
90 |
36 |
925 |
740 |
265 |
680×170 |
Corn reaper |
|
|
4YZ4 |
830 |
734 |
90 |
39 |
1025 |
840 |
250 |
780×170 |
Corn reaper |
|
|
Y4-45A |
1000 |
854 |
90 |
43 |
1248 |
1088 |
393 |
1008×260 |
Corn reaper |
|
|
400 |
409 |
428 |
78 |
15 |
600 |
488 |
180 |
350（M10） |
Tractor |
|
|
550 |
476 |
428 |
78 |
17 |
681 |
506 |
200 |
350（M10） |
Tractor |
|
|
950 |
576 |
498 |
78 |
25 |
836 |
620 |
206 |
370（M10） |
Tractor |
|
|
800 |
601 |
518 |
78 |
25 |
804 |
620 |
324 |
370（M12） |
Tractor |
|
|
1804 |
745 |
691 |
115 |
40 |
970 |
795 |
332 |
668×182 |
Tractor |
|
|
2204 |
800 |
830 |
115 |
53 |
1025 |
940 |
428 |
770×182 |
Tractor |
|
|
4354 |
960 |
973 |
144 |
88.5 |
1235 |
1060 |
475 |
980×240 |
Tractor |
|
|
388 |
520 |
592 |
88 |
26 |
712 |
730 |
312 |
690×58 |
One end for loader and other end for digger |
|
|
30-25 |
650 |
641 |
88 |
35 |
904 |
731 |
213 |
624×48 |
One end for loader and other end for digger |
|
We could design and produce cooling system for excavator, loader, bump, mixer, crane, drilling rig, road roller, paver, earthmoverWe could design and produce cooling system for excavator, loader, bump, mixer, crane, drilling rig, road roller, paver, earthmover...
Agricultural machines, tractors and forestry equipment
Construction machines
Automotive industry
Railway equipment (trains)
Air Compressors
Hydraulic installations
Power generator sets (gen-sets)
