Crossflow Open Type Cooling Tower

In case you do not find the type or model in the website We can customized according to your request.
Contact Now

TEL:0086-21-35324169
FAX:0086-21-35324166
Email:sales@shenglintec.com
WhatsApp:0086 13916147965
Mob:0086 13916147965

Features
Technical Data
Application
Certification

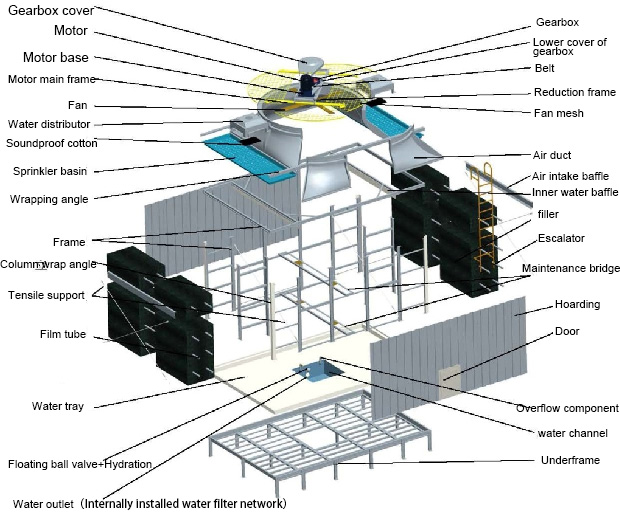

Part List
Reference

This series cooling tower adopts dual side air intake and high-performance fans at the top, allowing air to exchange with hot water through the fillers on both sides of the tower, and humid hot air to be discharged outside the tower. The filler adopts point wave plates with coated dots on both sides, which are bonded together as a whole through the installation head to improve rigidity. The convex points on both sides can also avoid direct dripping. This tower has the characteristics of durability, low noise, environmental protection, and minimal maintenance

MODEL	OVERAII DIMENSION					FIOW RATE （m3/h）	FAN （mm）	MOTOR(hp)	WEIGHT (kg)		NOISE（dB）
MODEL	L	W	H	H1	H2	FIOW RATE （m3/h）	FAN （mm）	MOTOR(hp)	NET	RUNNING	NOISE（dB）
LYR-100L/S	1790	3300	3700	2300	700	100	1470	2	995	1610	58.5
LYR-125L/S	2360	3600	3700	2300	700	125	1800	5	1100	2620	59.5
LYR-150L/S	2650	3900	3700	2300	700	150	2100	5	1230	2830	60.5
LYR-175L/S	2650	3900	3700	2300	700	175	2100	7.5	1350	3150	60.5
LYR-200L/S	3090	4300	3700	2300	700	200	2400	7.5	1490	3580	61.5
LYR-225L/S	2900	4990	4080	2680	700	225	2400	7.5	1650	3470	61.5
LYR-250L/S	3150	4990	4080	2680	700	250	2400	10	2320	4520	62.0
LYR-300L/S	3500	5590	4080	2680	700	300	3000	15	2520	5580	62.5
LYR-350L/S	3600	5590	4080	2680	700	350	3000	15	2790	5920	63.0
LYR-400L/S	3840	5930	4230	2680	850	400	3330	15	3190	6630	63.5
LYR-450L/S	4090	5930	4230	2680	850	450	3330	20	3600	7290	63.8
LYR-500L/S	4350	6080	4850	3300	850	500	3330	20	4200	8150	64.2
LYR-600L/S	4650	6400	4850	3300	850	600	3700	25	4620	8960	65.0
LYR-700L/S	4950	6400	5450	3900	850	700	3700	30	5040	9610	66.5
LYR-800L/S	5250	6900	5500	3900	900	800	4200	30	5620	10710	67.0

1.For medium frequency, high frequency power supply cooling

2.For medium-frequency quenching workpiece, if quenching liquid cooling

3.For vacuum heating, vacuum sintering, vacuum welding, vacuum melting furnace

4.For cooling of air compressors

5.For central air conditioning

6.For cooling of water-cooled screw machine and plate exchanger

7.For screw machines and other equipment

Stainless steel pipe 304/316L

The stainless steel components of the cooling tower have excellent corrosion resistance and weldability, making them durable with a long lifespan. They are resistant to high temperatures, high pressure, and have high strength. Additionally, stainless steel is environmentally friendly as its smooth inner walls prevent fouling, algae growth, and bacterial contamination, ensuring healthier water quality.

Panel

The cooling tower panels are typically made of Korean Pohang magnesium aluminum zinc-plated sheets with a thickness of 2.0mm. These panels have high corrosion resistance and maintain their original appearance even in harsh environments due to their high strength and rigidity. They can withstand large external forces and pressures.

Moreover, the magnesium aluminum zinc-plated sheets have good plasticity and processability, allowing for cutting, bending, punching, and other processing as needed to meet various design requirements.

Fan

The cooling tower blades are made of engineering plastics or aluminum alloy, equipped with three-proof motors for low noise and high transmission efficiency, with non-slip properties in rainy conditions.
The number of fans varies according to the model to increase exhaust area, improve cooling efficiency, and reduce fan damage.
The motor is specifically designed for use in full closed type cooling towers. It can operate continuously in humid conditions, offering high efficiency, low noise, long lifespan, and high reliability.

Spray Pump

The close type cooling tower spray pump features a high-quality mechanical seal that is not restricted by direction, ensuring no leakage and a long service life.
The motor is specifically designed for outdoor use and has an impeller with excellent hydraulic model design for good dynamic and static balance.
SKF bearings and EKK mechanical seals, sourced from Sweden, ensure the pump's long-term reliable operation with features such as low power consumption, low head, high flow rate, and low noise.

Filler

The cooling tower fill is made of high flame-retardant 100% PVC virgin material.
The water collector and air guide structure are integrated, allowing the fill to be directly suspended without the need for adhesive. The excellent structural design ensures proper spacing, even water distribution, efficient heat exchange, prevention of clogging, and easy installation and maintenance.

Dehydrator

The Dehydrator System uses high flame-retardant 100% PVC virgin material and features a clip-type water collector for efficient dewatering, very low drift rate, and easy disassembly.

Sprinkler System

The cooling tower spray system utilizes patented centrifugal spray nozzles with anti-loosening design, large aperture, low pressure loss, uniform water distribution, and resistance to clogging.

Electric control cabinet

The electrical control cabinet is custom-made according to user requirements, featuring international brands, temperature control systems, alarm systems, overload protection, and support for both manual and automatic control modes.
Users can freely set temperatures, and the system will automatically start and stop the fan and spray pump based on detection data.
