Fin Evaporator

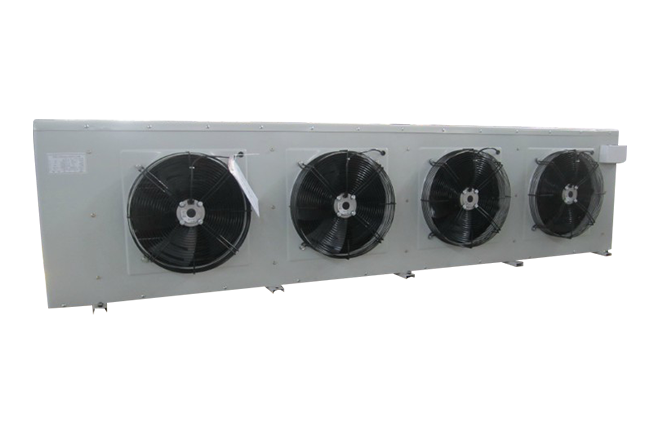

Cold room Evaporator
In case you do not find the type or model in the website
We can customized according to your request.
Contact Now
Contact Now
- TEL:0086-21-35324169
- FAX:0086-21-35324166
- Email:sales@shenglintec.com
- WhatsApp:0086 13916147965
- Mob:0086 13916147965
About Shenglin:
Shenglin is a leading design and manufacturing company specialized in Tube Fin Heat Exchangers.
Our skilled engineers utilize Italy's state-of-the-art Mcoil thermal calculation software to create high-quality heat exchangers. Their expertise enables us to produce accurate drawings and performance calculation documents.
In terms of production, our advanced facilities house multiple dedicated production lines for finned tube heat exchangers.
Our sheet metal production lines are equipped with cutting-edge laser cutting machines, CNC punch presses, CNC bending machines, and stretching hydraulic devices for guide rings. Furthermore, our tube-expanding equipment includes both mechanical and hydraulic tube expanders. Shenglin utilizes gas welding and argon arc welding methods, as well as offering spray coating and electrophoretic processes to meet the unique requirements of our customers.
Quality is paramount at Shenglin. Our Tube Fin Heat Exchangers adhere to the highest standards and carry international certifications such as Rohs, CE, and UL, which are widely recognized worldwide.
Quality is paramount at Shenglin. Our Tube Fin Heat Exchangers adhere to the highest standards and carry international certifications such as Rohs, CE, and UL, which are widely recognized worldwide.
Main Technical Parameters of DD-type Low Noise High Efficiency Air Coolers
Main Technical Parameters of DJ-type Low Noise High Efficiency Air Coolers
Type |
Refrigerating Capacity |
Cooling Area (mm) |
Pitch of Fins (mm) |
Air cooler | Electric pipe | ||||||||
Qty. | Dia | Wind Rate |
Wind Pressure |
Power |
Voltage Water Flow |
KW×pcs |
Water drain (kw) |
Voltage Water Flow |
|||||
DD-1.4/7 | 1400(1200) | 8.4 | 6 | 1 | φ300 | 1700 | 140 | 80 | 380 | 0.5×2 | 0.5 | 380 | |
DD-2.35/12 | 2350(2000) | 11.5 | 6 | 2 | φ300 | 2×1700 | 140 | 2×80 | 380 | 0.9×2 | 0.9 | 380 | |
DD-3.0/15 | 3000(2600) | 15.2 | 6 | 2 | φ300 | 2×1700 | 140 | 2×80 | 380 | 0.9×2 | 0.9 | 380 | |
DD-4.0/22 | 4000(3450) | 22.8 | 6 | 2 | φ350 | 2×3200 | 90 | 2×120 | 380 | 1.2×2 | 1.2 | 380 | |
DD-6.0/30 | 6000(5150) | 31.7 | 6 | 2 | φ350 | 2×3200 | 90 | 2×200 | 380 | 1.5×2 | 1.5 | 380 | |
DD-8.0/40 | 8000(6900) | 43.4 | 6 | 2 | φ400 | 2×4800 | 120 | 2×250 | 380 | 1.6×2 | 1.6 | 380 | |
DD-12.0/60 | 12000(10300) | 59.0 | 6 | 2 | φ400 | 2×4800 | 120 | 2×250 | 380 | 1.8×2 | 1.8 | 380 | |
DD-16.0/80 | 16000(13750) | 87.8 | 6 | 2 | φ450 | 2×6600 | 160 | 2×550 | 380 | 1.6×5 | 1.6 | 380 | |
DD-20.0/100 | 20000(17200) | 106.7 | 6 | 3 | φ450 | 3×6600 | 160 | 3×550 | 380 | 1.8×5 | 1.8 | 380 | |
DD-24.0/120 | 24000(20650) | 131.5 | 6 | 3 | φ450 | 3×6600 | 160 | 3×550 | 380 | 2.4×5 | 2.4 | 380 | |
DD-28.0/140 | 28000(24100) | 153.5 | 6 | 4 | φ450 | 4×6600 | 160 | 4×550 | 380 | 3×5 | 3.0 | 380 | |
DD-32.1/160 | 32100(27600) | 175 | 6 | 4 | φ500 | 4×9900 | 170 | 4×740 | 380 | 3.2×5 | 3.2 | 380 | |
DD-37.4/200 | 37400(32200) | 208 | 6 | 2 | φ600 | 2×10000 | 200 | 2×1100 | 380 | 2.7×8 | 2.7 | 380 | |
DD-46.8/250 | 46800(40300) | 259 | 6 | 3 | φ600 | 3×10000 | 200 | 3×1100 | 380 | 3.3×8 | 3.3 | 380 | |
DD-56.2/310 | 56200(48300) | 310.5 | 6 | 3 | φ600 | 3×12000 | 200 | 3×2200 | 380 | 3.5×8 | 3.5 | 380 |
Main Technical Parameters of DJ-type Low Noise High Efficiency Air Coolers
Type |
Refrigerating Capacity |
Cooling Area (mm) |
Pitch of Fins (mm) |
Air cooler | Electric pipe | ||||||||
Qty. | Dia | Wind Rate |
Wind Pressure |
Power |
Voltage Water Flow |
KW×pcs |
Water drain (kw) |
Voltage Water Flow |
|||||
DJ-13.2/8 | 1320(1150) | 7.95 | 9 | 2 | φ300 | 2×1700 | 140 | 2×80 | 380 | 0.9×2 | 0.9 | 380 | |
DJ-2.3/15 | 2300(2000) | 15.9 | 9 | 2 | φ350 | 2×3200 | 90 | 2×120 | 380 | 1.2×2 | 1.2 | 380 | |
DJ-4.0/20 | 4000(3450) | 21.8 | 9 | 2 | φ350 | 2×3200 | 90 | 2×200 | 380 | 1.5×2 | 1.5 | 380 | |
DJ-5.1/30 | 5100(4400) | 30 | 9 | 2 | φ400 | 2×4800 | 120 | 2×250 | 380 | 1.6×2 | 1.6 | 380 | |
DJ-7.8/40 | 7800(6700) | 40.2 | 9 | 2 | φ400 | 2×4800 | 120 | 2×250 | 380 | 1.8×2 | 1.8 | 380 | |
DJ-9.8/55 | 9800(8400) | 60.3 | 9 | 2 | φ450 | 2×6600 | 160 | 2×550 | 380 | 1.6×5 | 1.6 | 380 | |
DJ-12.8/70 | 12800(11000) | 73.3 | 9 | 3 | φ450 | 3×6600 | 160 | 3×550 | 380 | 1.8×5 | 1.8 | 380 | |
DJ-15.7/85 | 15700(13500) | 90.4 | 9 | 3 | φ450 | 3×6600 | 160 | 3×550 | 380 | 2.4×5 | 2.4 | 380 | |
DJ-18.8/100 | 18800(16160) | 105.3 | 9 | 4 | φ450 | 4×6600 | 160 | 4×550 | 380 | 3×5 | 3.0 | 380 | |
DJ-21.6/115 | 21600(18600) | 120.6 | 9 | 4 | φ500 | 4×9900 | 170 | 4×740 | 380 | 3.2×5 | 3.2 | 380 | |
DJ-29.3/140 | 23900(26600) | 142.7 | 9 | 2 | φ600 | 2×10000 | 420 | 2×1100 | 380 | 2.7×8 | 2.7 | 380 | |
DJ-29.0/170 | 29000(24900) | 178 | 9 | 3 | φ600 | 3×10000 | 420 | 3×1100 | 380 | 3.3×8 | 3.3 | 380 | |
DJ-35.9/210 | 35900(30900) | 209 | 9 | 3 | φ600 | 3×12000 | 420 | 3×2200 | 380 | 3.5×8 | 3.5 |
380 |
