Fin Evaporator

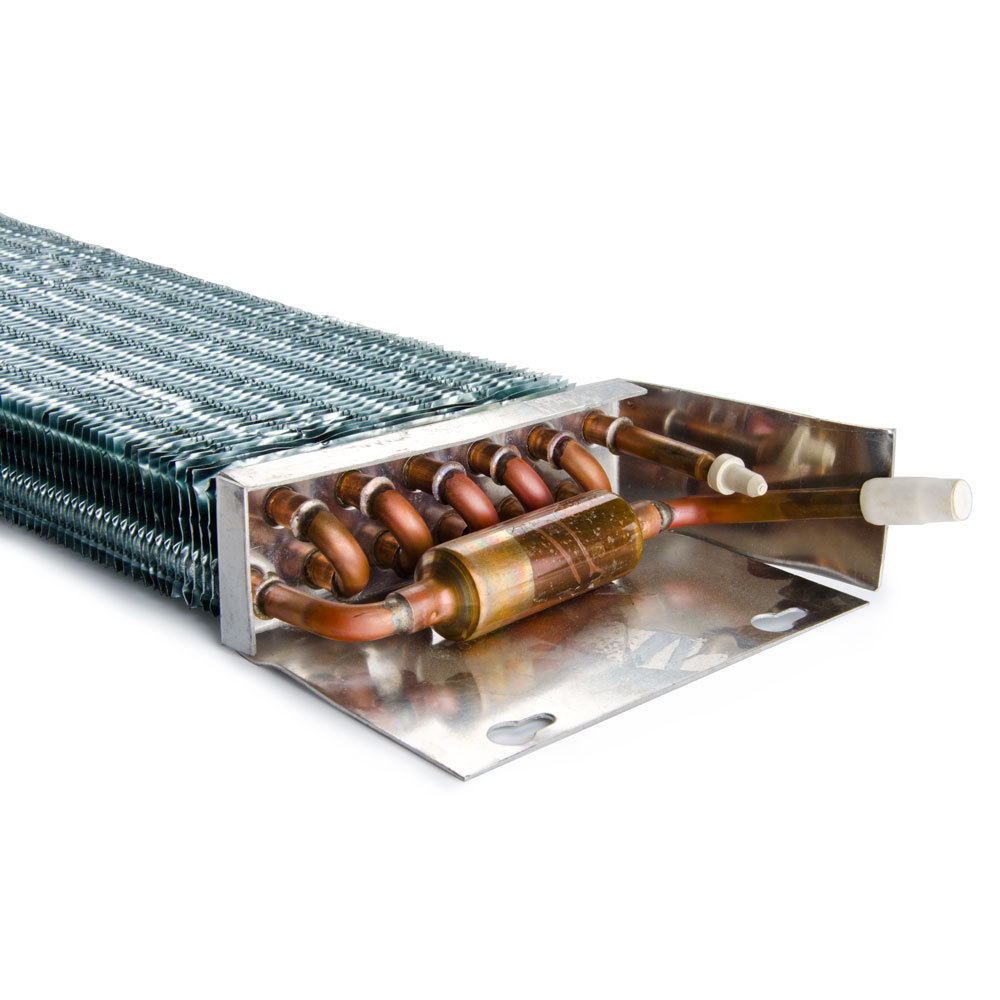

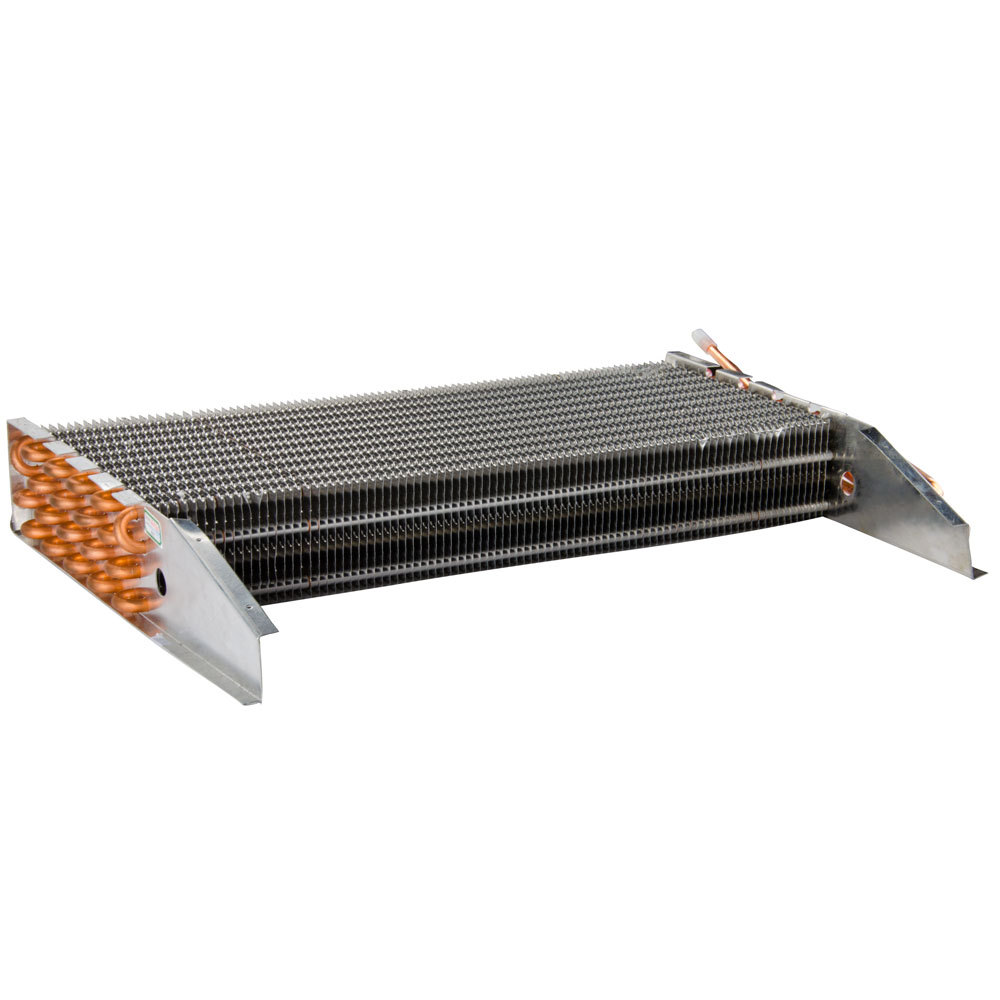

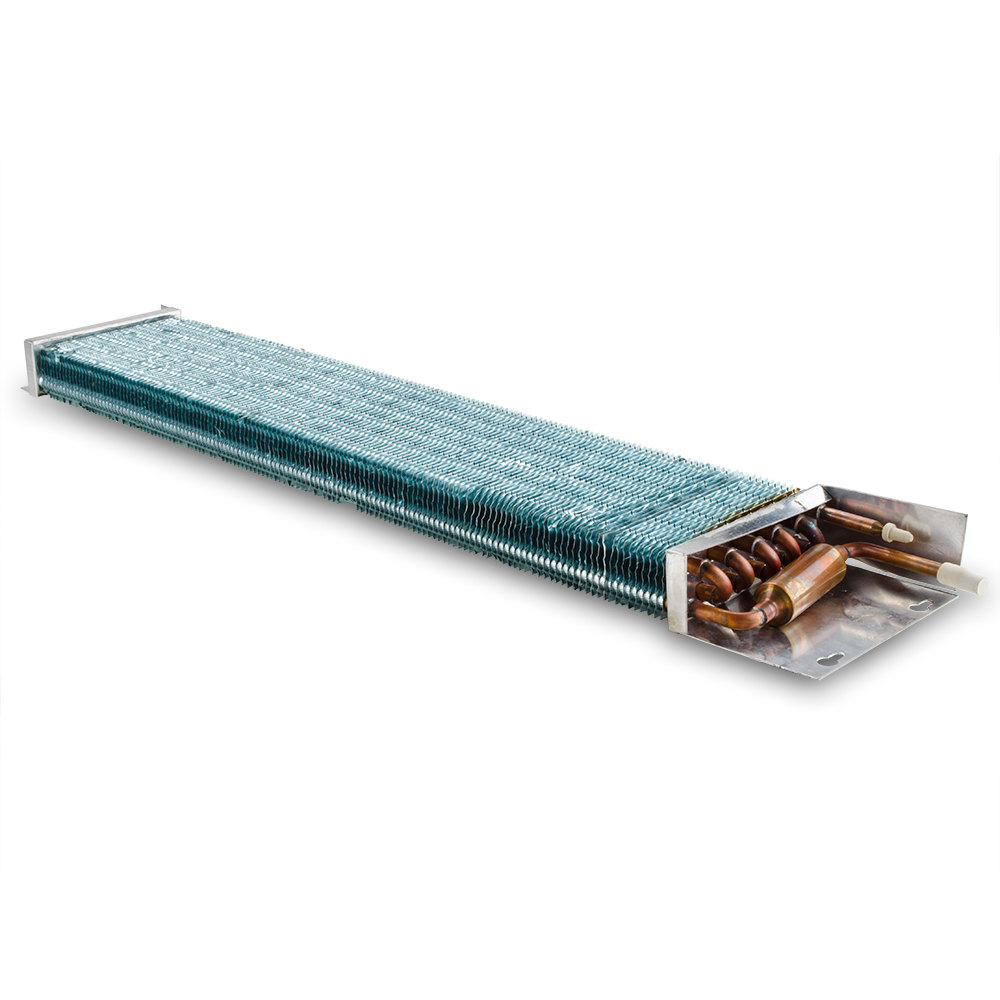

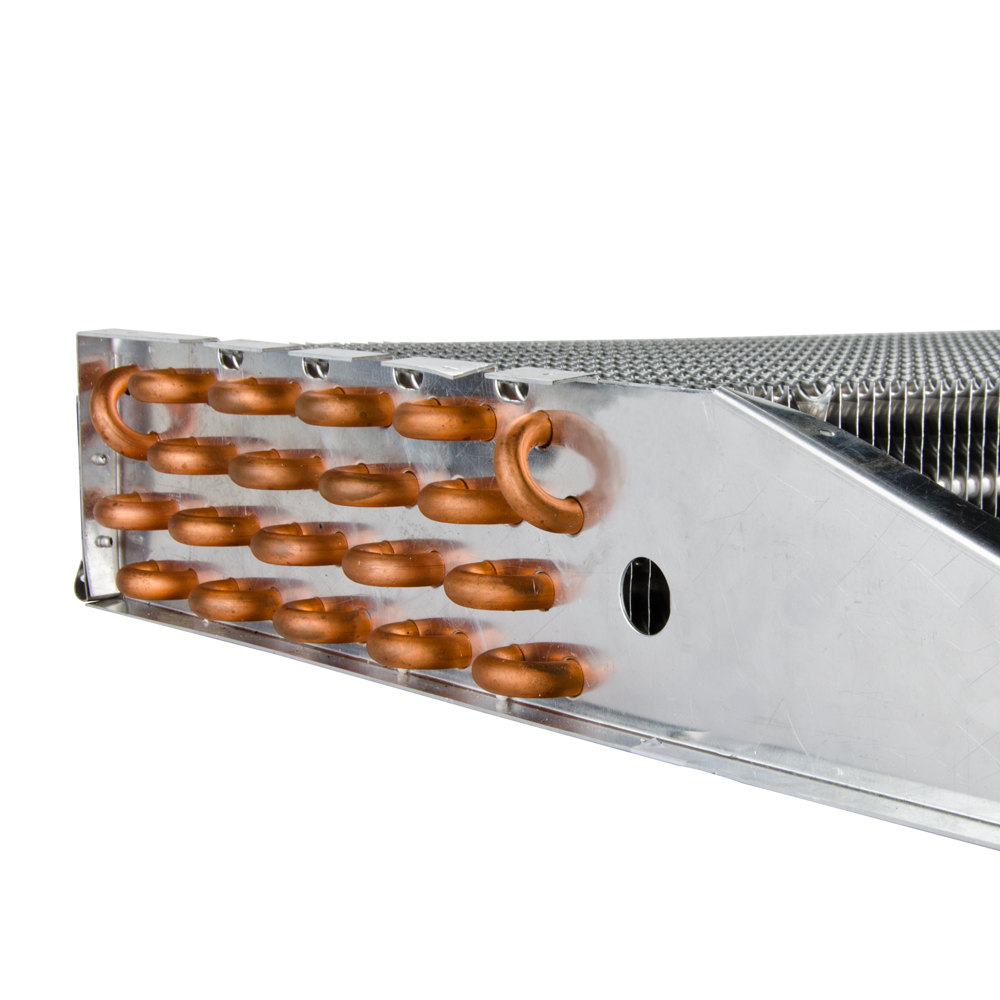

Water Dispenser Evaporator
  • Water Dispenser Evaporator
  • Water Dispenser Evaporator
  • Water Dispenser Evaporator
  • Water Dispenser Evaporator

Water Dispenser Evaporator

In case you do not find the type or model in the website We can customized according to your request.
Contact Now
  • Features
  • Technical Data
  • Application
  • Certification
  • Part List
  • Reference
In an air conditioning system, evaporator coils absorb warm air from inside the room (or any closed space) and freshen the air up via blower and refrigerant.

The fin-type evaporator uses φ7mm, φ9.52mm, φ12.7mm or φ15.88mm copper tubes, and adopts advanced corrugated fins or window fins and inner grooved or plain tubes. It has high heat exchange efficiency and is better than ordinary heat exchangers. The effect is increased by 1. 3 - 1. 4 times. The fins are mostly hydrophilic aluminum foil or copper foil. No matter what specification the copper tube is, it adopts mechanical expansion process to ensure the heat exchange performance. It is specially designed for various air conditioners. High-quality, high-efficiency condensers, evaporators and cooling coils are tailor-made for air conditioning units, heat pump and fan coils, to achieve efficient heat exchange between hot and cold water and air, and efficient heat exchange between refrigerant and air. The complete range of specifications and varieties can meet the needs of different working conditions and various combinations, and there are a variety of copper tubes and fin space for customers to choose from.

About Shenglin:

    Shenglin is a leading design and manufacturing company specialized in Tube Fin Heat Exchangers.
    Our skilled engineers utilize Italy's state-of-the-art Mcoil thermal calculation software to create high-quality heat exchangers. Their expertise enables us to produce accurate drawings and performance calculation documents.
    In terms of production, our advanced facilities house multiple dedicated production lines for finned tube heat exchangers.
    Our sheet metal production lines are equipped with cutting-edge laser cutting machines, CNC punch presses, CNC bending machines, and stretching hydraulic devices for guide rings. Furthermore, our tube-expanding equipment includes both mechanical and hydraulic tube expanders. Shenglin utilizes gas welding and argon arc welding methods, as well as offering spray coating and electrophoretic processes to meet the unique requirements of our customers.
   Quality is paramount at Shenglin. Our Tube Fin Heat Exchangers adhere to the highest standards and carry international certifications such as Rohs, CE, and UL, which are widely recognized worldwide.


Material:


Copper Tube

Aluminum Tube

Bare Fin

Copper Fin

Hydrophilic aluminum fin

Anti-corrosion aluminum foil

Bare tube, inner grooved tube

Bare tube, inner grooved tube

For normal use like freezing and refrigeration

For industrial equipment,subway and train air conditioning

For indoor and transport air conditioning evaporators

For medical, chemical and marine climate.

Fin Pattern:


Tube Diamater

Hole Space(mm)

Row Space(mm)

Fin Space(mm)

Tube Material

Fin Material

ɸ5

19.05

11.6

1.1~2

Cu

Cu, AL

ɸ5

21

18.2

1.25~3

Cu

Cu, AL

ɸ6

13.5

10

1.3~2

AL

AL

ɸ7

25

21.65

1.4~3.0

AL

Cu, AL

ɸ7

21

18.2

1.2~3.0

Cu, AL

Cu, AL

ɸ7

21

12.7

1.3~2

Cu, SS, AL

Cu, AL

ɸ7

20.5

12.7

1.5~2

Cu

Cu, AL

ɸ7

19.05

12.7

1.3~3

Cu

AL

ɸ7

19.05

16.5

1.4~1.8

Cu

Cu, AL

ɸ7

17.6

13.2

1.3~2.5

Cu

Cu, AL

ɸ7.94

25.4

15.88

1.6~4

Cu, AL

Cu, AL

ɸ7.94

25.4

22

1.4~2.5

Cu

Cu, AL

ɸ7.94

25.4

19.05

1.2~3.3

Cu

Cu, AL

ɸ7.94

25

21.65

1.8~2.2

Cu

Cu, AL

ɸ7.94

22

19.05

1.6~2.3

Cu

Cu, AL

ɸ7.94

20.5

17.5

1.3~2

Cu

Cu, AL

ɸ9.52

31.75

27.5

2~7

Cu

Cu, AL

ɸ9.52

30

30

3~5

Cu

Cu, AL

ɸ9.52

25.4

22

1.7~5.0

Cu, SS

Cu, AL

ɸ9.52

25.4

19.05

1.2~2.5

Cu

Cu, AL

ɸ9.52

25.4

12.7

1.3~2

Cu, AL

Cu, AL

ɸ9.52

25.4

15.88

1.3~3

AL

AL

ɸ9.52

25

21.65

1.6~5.5

Cu, SS, AL

Cu, AL

ɸ9.52

25

25

2.5~4.2

Cu

Cu, AL

ɸ9.52

25

12.5

1.3~3

AL

AL

ɸ9.52

19.05

16.5

1.3~4

Cu, AL

Cu, AL

ɸ12

70

20

6~9

Cu

Cu, AL

ɸ12

50

25

1.8~7

Cu, SS

Cu, AL

ɸ12.7

75

25

8~10

Cu

Cu, AL

ɸ12.7

60

30

8~10

Cu

Cu, AL

ɸ12.7

50

50

2.8~6.0

Cu

Cu, AL

ɸ12.7

48

48

4.5~9

Cu

Cu, AL

ɸ12.7

40.5

35

4.5~12

Cu

Cu, AL

ɸ12.7

38.1

33

1.6~4.0

Cu

Cu, AL

ɸ12.7

35

30.3

1.8~3.1

Cu

Cu, AL

ɸ12.7

31.75

27.5

1.6~5

Cu, SS, AL

Cu, AL

ɸ14.5

52

45

4.5~7

Cu

Cu, AL

ɸ15.88

75

25

8~10

Cu

Cu, AL

ɸ15.88

60

30

8~10

Cu

Cu, AL

ɸ15.88

60

52

7~9

Cu

Cu, AL

ɸ15.88

50

50

2.5~12

Cu, SS, Ti, Cu-Ni

Cu, AL

ɸ15.88

38.1

33

1.6~5.0

Cu, SS, AL, Ti, Cu-Ni

Cu, AL

ɸ18

65

65

6~30

Cu, SS, AL, CS

CS, AL

ɸ25

75

65

6~30

Cu, SS, AL, CS

CS, AL


●Air Conditioning
●Heat Pump
●Refrigeration
