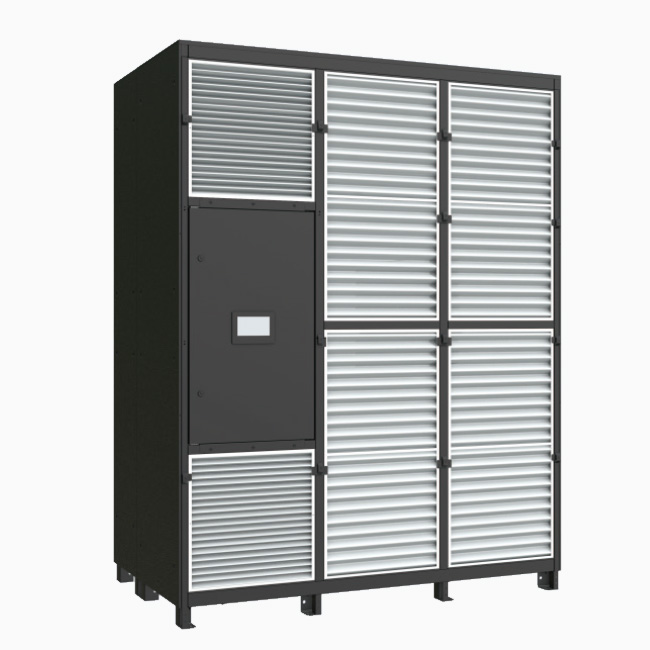

Chilled Water Fan Wall

Technical Specification

Total Cooling Capacity (kW)

210

Sensible Cooling Capacity (kW)

210

Air Supply

Horizontal

Air Flow (m³/h)

60000

ESP (Pa)

0-300Pa

Refrigerant Type

Chilled Water

EER

≥10

Reheating Capacity (kW)

24

Humidification (kg/h)

10

Air Filter Class

G4

Dimension: H×W×D (mm)

2200 ×2000 ×1200

* Cooling capacity condition: Inlet/outlet water temperature=20 ºC/28 ºC, Return air dry bulb temperature=36 ºC/24% RH, Air supply=24 ºC (± 1ºC) , ESP=100Pa.

Country: Indonesia
Application:data center
Cooling capacity: 36.7kW
EER: 3.96
Air volume: 12750m3/h
Refrigerant: R410A
Power supply: 380V/3P/50Hz

Country: Philippines
Application: MRI room in hospital
Cooling capacity: 29.8kW
Electric heating: 11kW
Air volume: 7500m3/h
Refrigerant: R407C
Power supply: 400V/3P/60Hz
Downflow air supply

Country: USA
Application: Data center cooling
Cooling capacity: 18kW
Air volume: 4100m3/h
Refrigerant: R410A
Power supply: 400V/3P/60Hz
Remote control

Country: Tajikistan
Application: data base station
Cooling capacity: 13.1kW
Air volume: 2400m3/h
Refrigerant: R407C
Power supply: 380V/3P/50Hz

Country:China
Application: wind farm
Cooling capacity: 50kW
Air volume: 12000m3/h
Refrigerant: R22
Power supply: 380V/3P/50Hz
