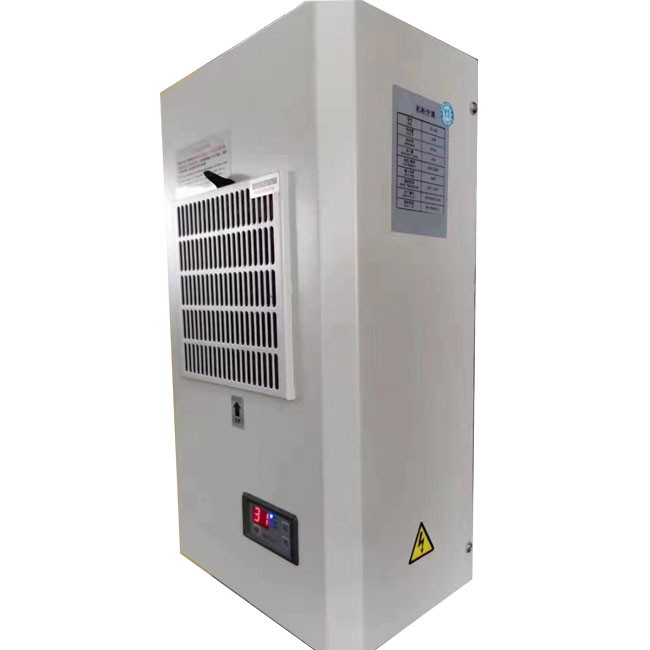

High Temperature Electric Cabinet Air Conditioner

In case you do not find the type or model in the website We can customized according to your request.
Contact Now

TEL:0086-21-35324169
FAX:0086-21-35324166
Email:sales@shenglintec.com
WhatsApp:0086 13916147965
Mob:0086 13916147965

Features
Technical Data
Application
Certification
Part List
Reference

Product features

With adopting the state to the superior components of the world, like Hitachi's compressor and Germany EBM's fan

With functions of temperature controlling and moisturizing, guarantee the ideal temperature and humidity in electrical cabinet

Product Advantage

Using double filter to guarantee double protection, completely conquer the high thickness of big dust and high temperature.

With the protection function, greatly improve the stability of air conditioning

Offering customized service to improve anti-corrosion ability.

Using environmental refrigerant: R134a

Maximum allowable temperature: 65℃

Model		HEA-600	HEA-1000	HEA-1500	HEA-2000	HEA-2500	HEA-3200
Power Supply	V, Hz	220,1P, 50
Dimension	W(mm)	350	360	370	390	436	436
	H(mm)	630	745	875	1058	1113	1113
	D(mm)	200	200	240	240	270	270
Cooling capacity	W	600	1000	1500	2000	2500	3200
Running current	A	2.1	2.85	3.3	1.48	5.9	6.55
Starting current	A	8.5	10.5	14.6	16	18
Input power	W	420	610	705	923	1110	1441
Refrigerant		R134a
Noise	dB	60	65	65	65	68	68
IP grade	Indoor	IP34	IP34	IP34	IP34	IP34	IP34
IP grade	Outdoor	IP33	IP33	IP33	IP33	IP33	IP33
Temperature setting range in the cabinet	℃	25~38(factory setting is 30)
Operating ambient temperature range	℃	-5~55
Power supply connection		Triangle power plug
Weight	Kg	26	36	37	49.5	63	65
Exterior color		RAL 7035(light gray)
Internal circulation air volume	m3/h	230	250	270	320	610	610
External circulation air volume	m3/h	290	540	780	810	1150	1300
Temperature control method		Digital display

The finished product is mainly used for cooling and dehumidifying the air in various electrical cabinets to ensure the safe and reliable operation of the electrical components and extend the service life of the electrical components. Applicable to all kinds of control boxes, electrical cabinets and other similar electrical devices with high temperature and humidity requirements in machinery, automobile, power, light industry, instrumentation, textile, casting, surface treatment and other industries, such as machine tool electrical cabinets, comprehensive processing Center, communication equipment, etc.
