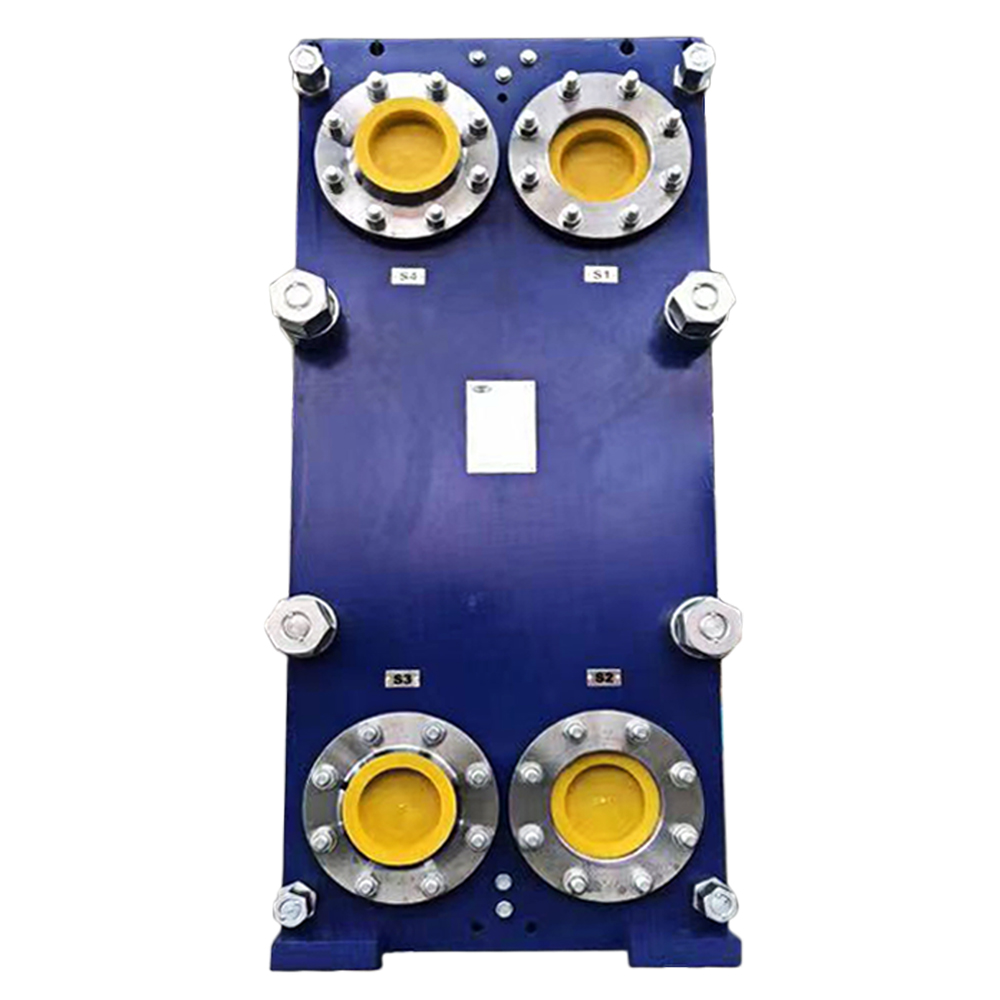

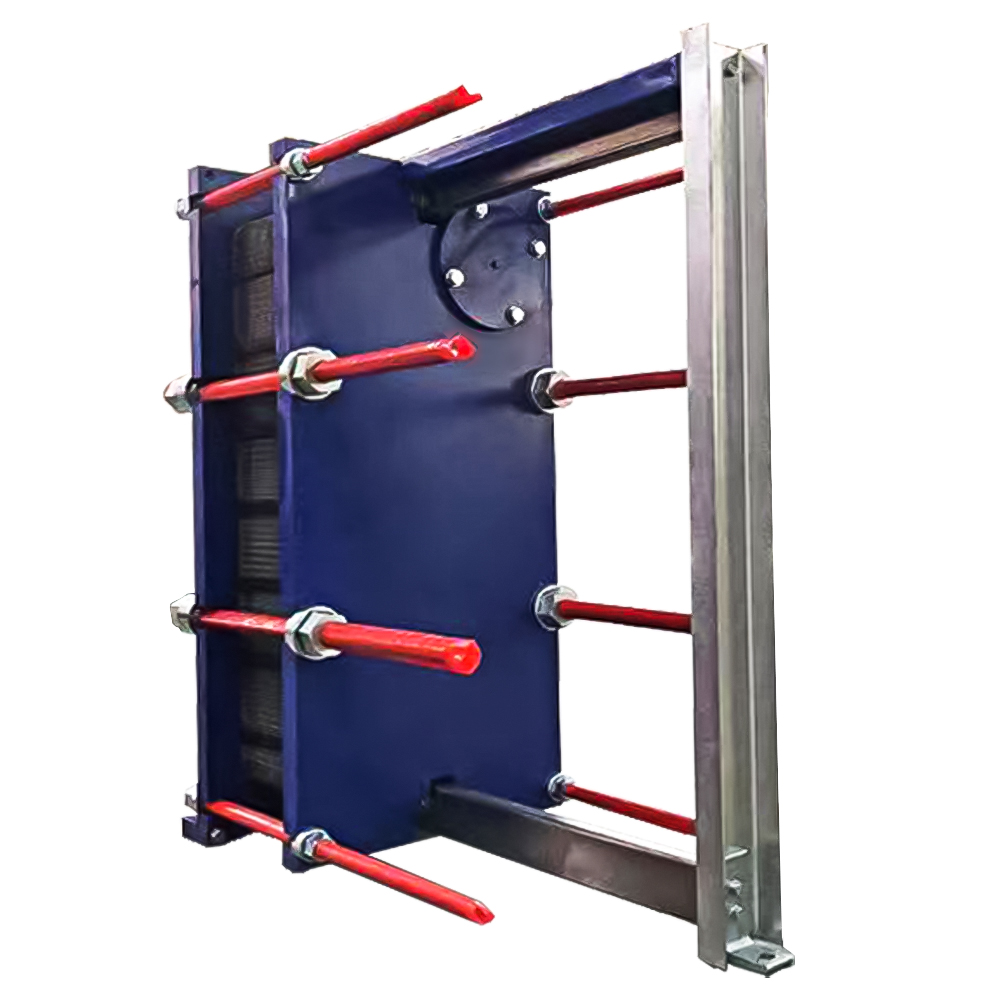

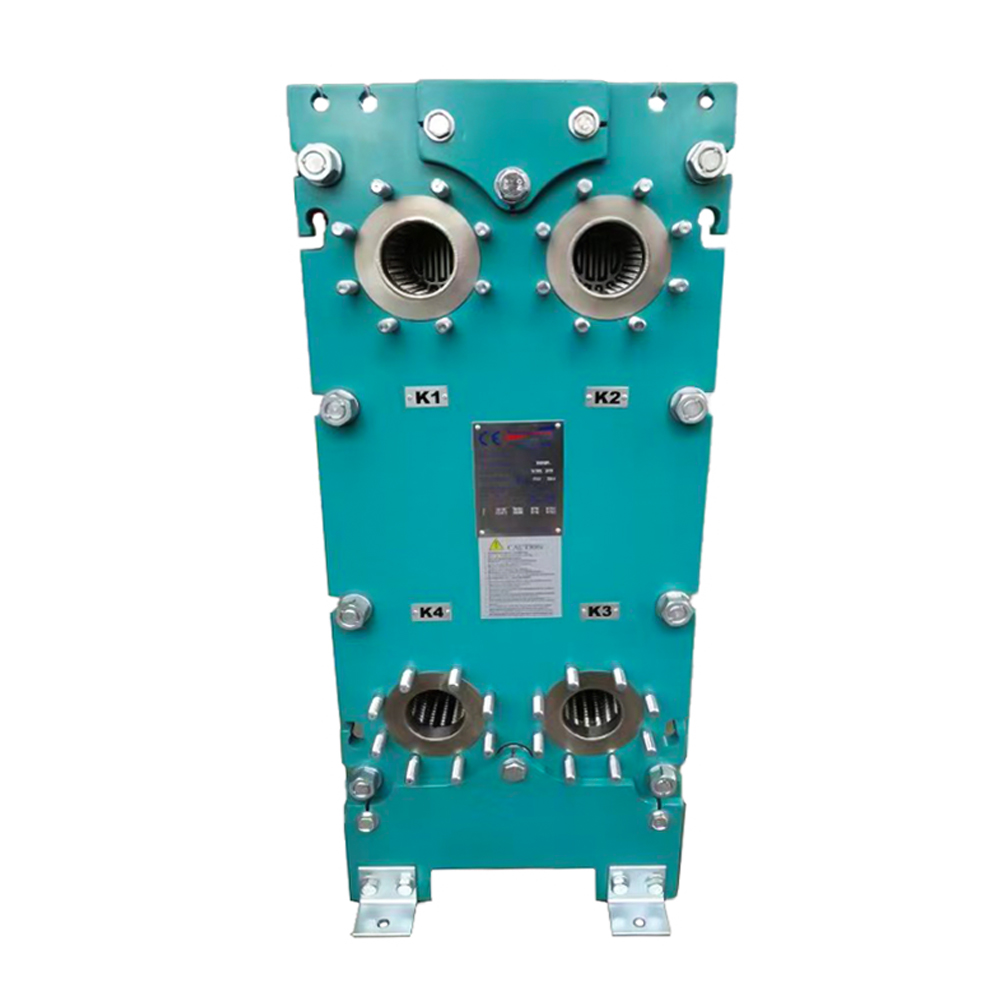

Semi-Welded Plate Heat Exchanger

Introduction
A Semi Welded Plate Heat Exchanger is a heat transfer device that uses plates and gaskets to transfer heat betweentwo fluids. The semi-welded design is where the plate pack is partially welded to the frame, which strengthens the plate pack and helps prevent leakage. The semi-welded plate design is particularly valuable when dealing with fluidsthat are corrosive or when dealing with fluids that require a high-pressure drop.

Parameter Table of Laser Semi Welded Plate Heat Exchanger
Model	Overall Dimension(mm)			Maximum Assembly area (m2)	Maximum Nozzle Diameter of the Hot side	Maximum Nozzle Diameter of the Cold Side	Standard Pressure Range
	Max Length	Width	Height
HU-06D	960	262	910	9	DN150	DN80	≤3.0MPa
HU-18D	1050	367	1425	35	DN200	DN80
HU-30D	2750	427	1664	90	DN250	DN125
HU-40D	2800	450	1974	120	DN250	DN100
HU-60D	2900	511	2186	180	DN350	DN200
HU-90D	3100	718	2560	450	DN500	DN300
HU-110D	3300	718	2860	550	DN500	DN300	≤2.8MPa
HU-130D	3500	718	3160	650	DN500	DN300
Standard temperature range:-20℃ to 250℃

We supply Gasket  Plate Heat Exchangers for many applications, including:Boiler / Heating separation
1. Domestic Hot Water (DHW) Heating
2. Steam to Water Heating
3. Heat pumps
4. Industrial process liquid heating and cooling
5. Swimming Pool Heating
6. Chemical heating and cooling, either in-line or on a batch process
7. Heating, Ventilating & Air Conditioning (HVAC)
8. Marine - (Titanium Plates) for uses such as main engine cooling, oil cooling, intercoolers and deck wash water heating
9. Dairy - milk pasteurising, raw milk cooling
10. Food products
11. CIP wash water heating
12. Brewing - Wort cooling, beer/lager/cider conditioning
13. Pharmaceutical - Hygienic water heating / cooling
Many, many more...
