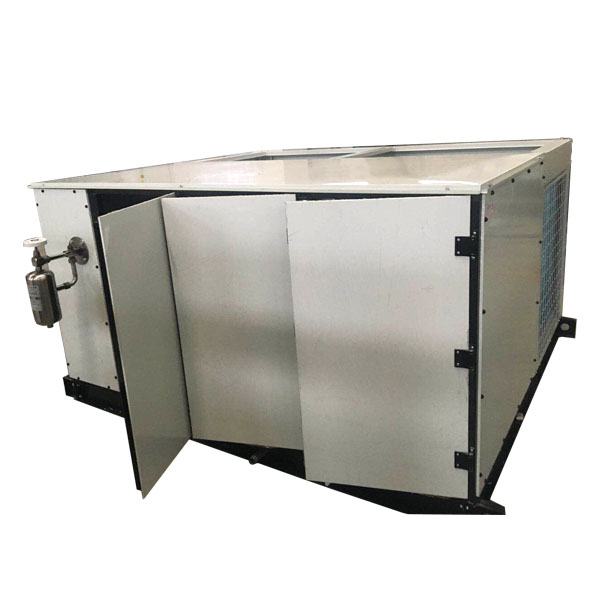

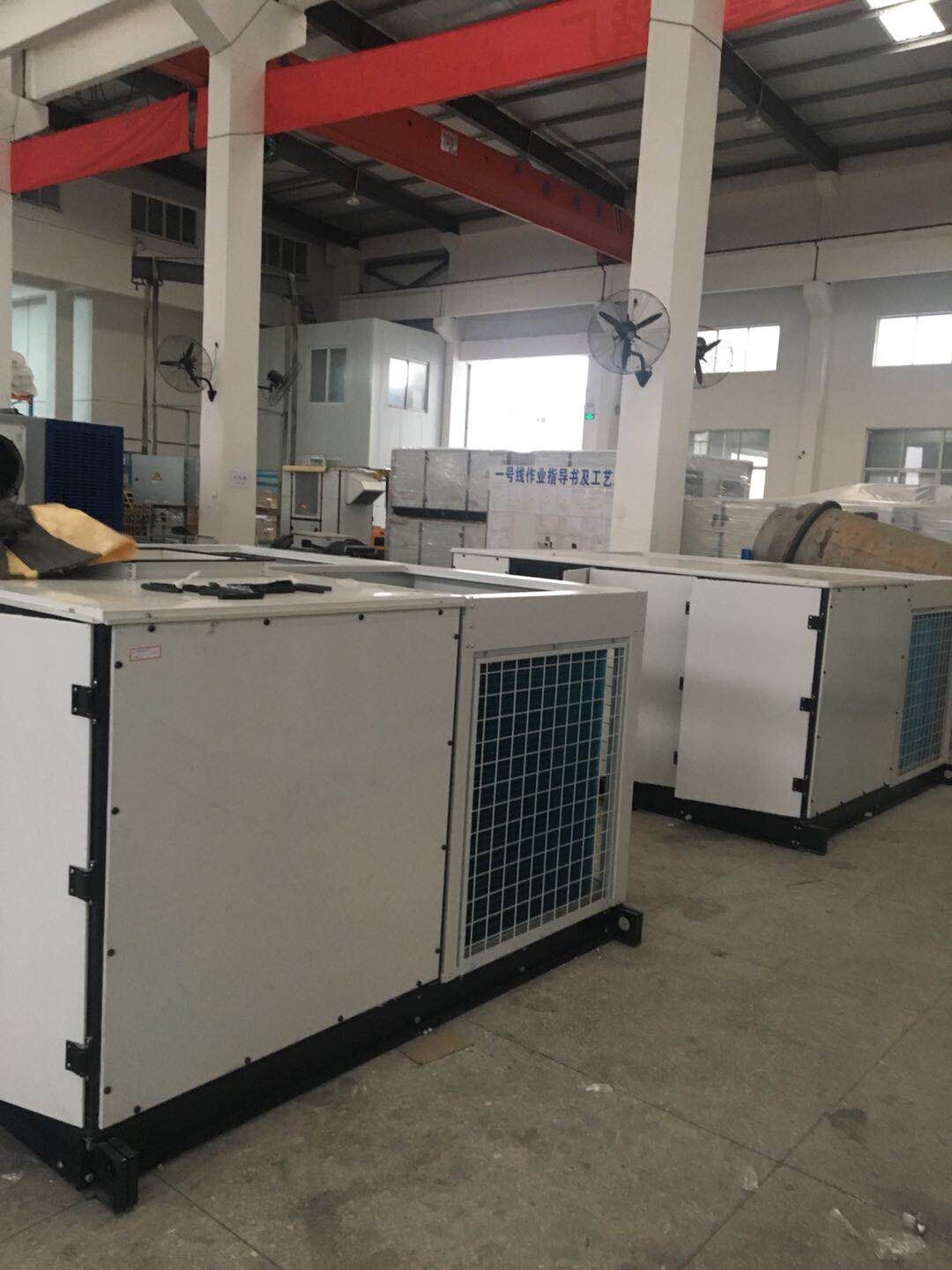

Cool Storehouse Rooftop Package Unit/Hvac Package Unit

In case you do not find the type or model in the website We can customized according to your request.
Contact Now

TEL:0086-21-35324169
FAX:0086-21-35324166
Email:sales@shenglintec.com
WhatsApp:0086 13916147965
Mob:0086 13916147965

Features
Technical Data
Application
Certification
Part List
Reference

Capacity: 35~85Tons, 122~300kW, 416000~1024000 BTUs
Efficiency: 2.7~3.3 cop.
Warranty: Compressor- 3 years limited. other parts-1 year limited.

Structure

Panels and frame are made from galvanized steel protected with polyester powder painting to ensure total resistance toatmospheric agents.

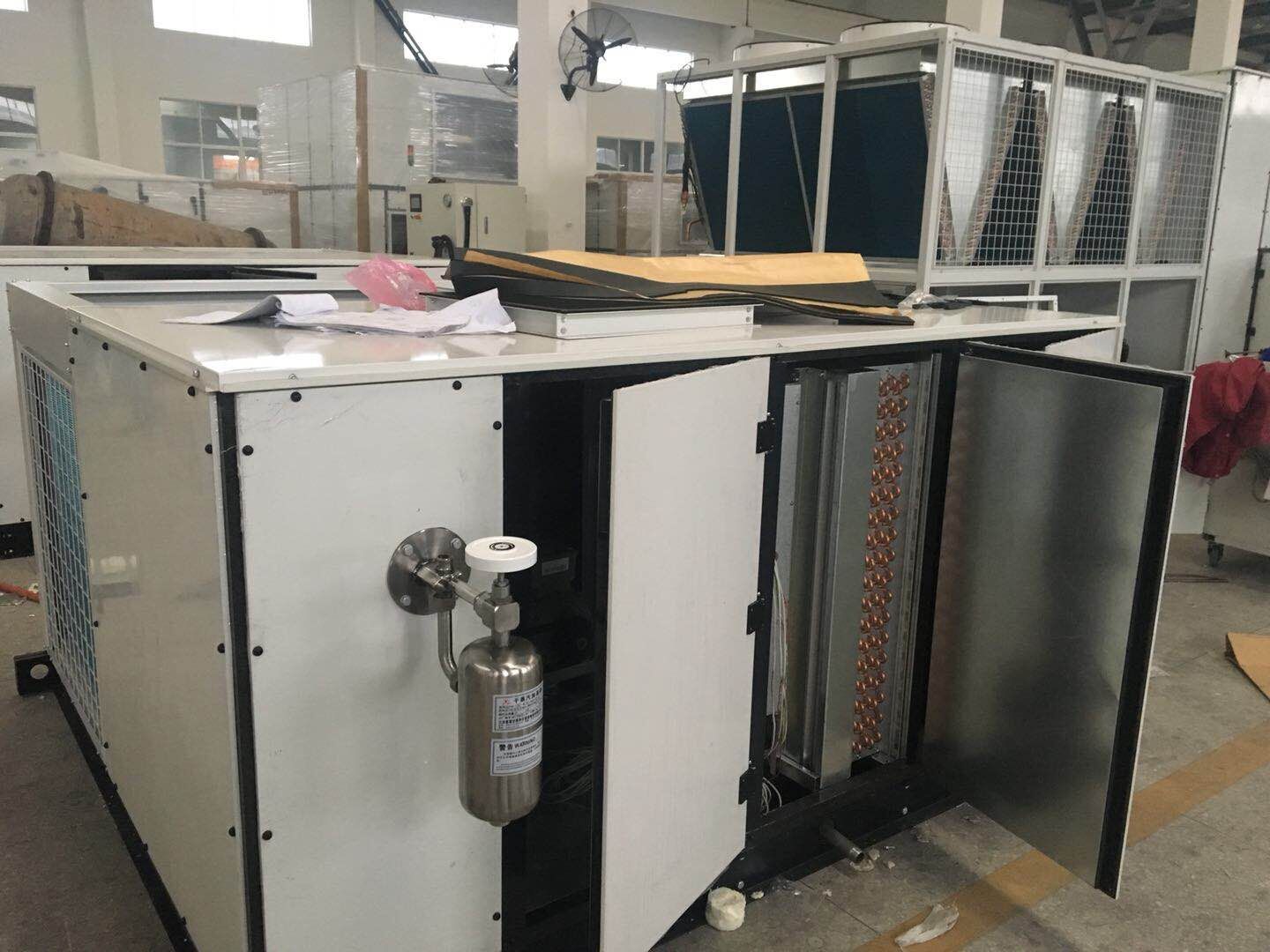

Direct expansion coils with condensate drain tray.

Hermetic compressor

High efficiency scroll compressor for the whole range, with built-in thermal overload cut-out and crankcase heater,mounted on rubber vibration dampers

Ripple type acoustic insulation for compressor section, and thermal insulation for coil and fan section, low noise

Centrifugal fan

Forward curve centrifugal fans for air treatment section and axial fans for condensation section. Front, side and underside air discharge of the treatment unit. High external pressure, long air supply distance

Electric panel

Electric panel consists of breakers and contactors for compressors and fan motors, phase sequence relay and other necessary protection devices for the main components.

Easy operation line controller

Cooling/Heating/Auto. Error indication. Timing on/off.

Optional

Economizer with fresh, return air dampers and fresh air hood.

Free cooling function for low ambient temperature.

Low ambient control device for operation of outdoor units at ambient temperatures from less than 20°C down to -10°C

BMS devices.

T3 (Tropical climate).

Condenser coil guard.

Roof curb.

Metal / aluminum filter.

Air pressure switch for indoor fan.

High static condenser fan option with sealed + drain.condensing section.

Optional water heating coil.

Metal or plastic mesh on condenser coil.

Optional supply / return air configurations.

Upgraded evaporator fan motor drives.

G4 filter, plate and bag filter.
Electric heater.
Constant temperature and constant humidity.

Nominal Ton			(Ton)	35	45	50	64	85
Model				SLRC-350HWA	SLRC-400HWA	SLRC-500HWA	SLRC-640HWA	SLRC-850HWA
Power Supply			V,Ph,Hz	380~415V,3Ph,50Hz	380~415V,3Ph,50Hz	380~415V,3Ph,50Hz	380~415V,3Ph,50Hz	380~415V,3Ph,50Hz
Cooling 1		Cooling Capacity	Btu/h	416000	532000	614000	768000	1024000
		Cooling Capacity	kW	122	156	180	225	300
		Power Input	kW	40.2	52.7	63.5	80.3	110.5
Cooling 2		Cooling Capacity	Btu/h	359000	475000	536000	670000	887000
		Cooling Capacity	kW	105	139	157	196	260
		Power Input	kW	44.3	58.5	68.5	84.8	112.6
Heating		Heating Capacity	Btu/h	430000	553000	631000	785000	1044000
		Heating Capacity	kW	126	162	185	230	306
		Power Input	kW	37.7	52	61.6	77.8	107.2
Max. Input Consumption			kW	55.1	73.8	87.6	105.6	145.1
Max. Current			A	107.5	142.6	170.6	203.8	282.5
Performance	Evaporator Fan Air Flow		CFM	13000	16600	18000	23800	31700
	ESP		Pa	370	430	450	450	500
	EER 1		Btu/h/W	10.3	10.1	9.7	9.6	9.3
	EER 2		Btu/h/W	8.1	8.1	7.8	7.9	7.9
	COP		Btu/h/W	11.4	10.6	10.2	10.1	9.7
Evaporator	Number of Rows			3	4	4	4	4
	Fin Spacing		mm	1.5	1.5	1.5	1.5	1.5
	Fin Spacing		FPI	17	17	17	17	17
	Tube Diameter		mm	8	8	8	8	8
	Tube Diameter		inch	9/32	9/32	9/32	9/32	9/32
Evaporator Fan	Type			FC Centrifugal	FC Centrifugal	FC Centrifugal	FC Centrifugal	FC Centrifugal
	Quantity			1	1	1	1	1
	Drive Type			Belt	Belt	Belt	Belt	Belt
	Motors Quantity			1	1	1	1	1
	Motor Model			Y160M-4-11W	Y160M-4-11W	Y180L-6-15W	Y180L-6-15W	Y200L2-6-22W
Compressor	Type			Scroll	Scroll	Scroll	Scroll	Scroll
	Quantity			2	2	3	3	4
	Model			VP232KSE-TFP	VP292KFE-TFP	VP232KSE-TFP	VP292KFE-TFP	VP292KFE-TFP
	Brand			Copeland	Copeland	Copeland	Copeland	Copeland
	Capacity		Btu/h	193460×2	244300×2	193460×3	244300×3	244300×4
	Refrigerant Oil Charge		ml	4200x2	4200x2	4200x3	4200x3	4200x4
Condenser	Number of Rows			3+3	3+3	3+3+3+3	4+4+4+4	4+4+4+4
	Fin Spacing		mm	1.5	1.5	1.5	1.5	1.5
	Fin Spacing		FPI	16	16	16	16	16
			mm	7	7	7	7	7
	Tube Diameter		Inch	9/32	9/32	9/32	9/32	9/32
Condenser Fan	Type			Propeller	Propeller	Propeller	Propeller	Propeller
	Quantity			2	2	4	4	4
	Drive Type			Direct	Direct	Direct	Direct	Direct
	Motors Quantity			2	2	4	4	4
	Motor Model			YS1800-6-2	YS2200-6-2	YS1500-6-4	YS1500-6-4	YS2200-6-4
Refrigerant	Type			R410A	R410A	R410A	R410A	R410A
	Refrigerant Volume		kg	10.6+10.6	12.5+12.5	3*10.6	3*12.5	4*12.5
	Refrigerant Control			Thermostatic Expansion Valve	Thermostatic Expansion Valve	Thermostatic Expansion Valve	Thermostatic Expansion Valve	Thermostatic Expansion Valve
Sound pressure level			dB(A)	79.6	81.2	82.4	82.4	82.4
Ambient temperature	Cooling			16° C-52° C	16° C-52° C	16° C-52° C	16° C-52° C	16° C-52° C
Ambient temperature	Heating			-10° C-24° C	-10° C-24° C	-10° C-24° C	-10° C-24° C	-10° C-24° C
Net Weight			kg	1290	1360	1950	2370	2850
Gross Weight			kg	1320	1390	1990	2420	2910
Net Dimension	WxHxD		mm	2260x1262x3890	2260x1262x3890	2260x2240x4809	2260x2240x5209	2260x2500x5709
Packing	WxHxD		mm	2280x1275x3910	2280x1275x3910	2290x2240x4840	2290x2240x5240	2290x2500x5740
Shipping	Qty'Per 20'/40'/40'HQ			1/3/6	1/3/6

Notes:

1. Cooling capacity test condition (1): Outdoor ambient temperature: 35℃, indoor temperature 26.7℃DB/19.4℃WB;

Cooling capacity test condition (2): Outdoor ambient temperature: 46℃, indoor temperature: 26.7℃DB, 19.4℃WB;

Heating capacity test condition : Outdoor ambient temperature: 7℃DB/6℃ WB, indoor temperature 20℃ DB/ 15℃WB;

2. Units are suitable for operation to ± 20% of nominal CFM;

3. Sound values are measured in a semi-anechoic room, at a position 1 meter in front of the unit and (1 meter+Height of unit)/2 above the floor.

4. Specifications are subject to change without prior notice for product improvement.

5. * Nominal ton only for reference.

6.Cooling or heating capacity as per specifications.

Factory, hospital, marine, office building, shopping mall...

No.	Name	Brand	Country	Feature	Remark
1	Compressor	Copeland	Suzhou,China	Fully enclosed vortex type, efficient and reliable
		Panasonic	Dalian,China
		Yinghuate	Suzhou,China
2	Fin evaporator	Shenglin	Hebei,China	Inner grooved copper tube, hydrophilic aluminum foil, high efficiency, not easy to scale
3	Fin evaporator	Shenglin	Hebei,China	Inner grooved copper tube, hydrophilic aluminum foil, high efficiency, not easy to scale
4	Centrifugal fan	Yingdeli	Jiangsu,China	Efficient, low noise, and smooth operation
		Yilida	Zhejiang,China
5	Axial fan	Xingxin	Hebei,China	Compact structure, low noise, high efficiency
		Kemao	Zhejiang,China
4	Thermal expansion valve	Sanhua	Zhejiang,China	External balance type, long service life, high compressive strength
		Emerson	Jiangsu,China
5	Four-way valve	Sanhua	Zhejiang,China	Low leakage	Only for heat pump type
		Dun An	Zhejiang,China
6	One-way valve	Sanhua	Zhejiang,China	Low reverse leakage	Only for heat pump type
		Taohua	Jiangsu,China
7	High voltage switch	Match-Well	Jiangsu,China	Stable performance
8	Low voltage switch	Match-Well	Jiangsu,China	Stable performance
9	Dry filter	Sanhua	Zhejiang,China	High drying filtration
		Dun An	Zhejiang,China
10	Controller	Punp	Guangzhou,China	Stable performance, meeting the needs of different users
		Syslab	Shengzhen,China
11	Contactor	Schneider	Shanghai,China	Long lifecycle
		ABB	Shanghai,China
12	Circuit breaker	Schneider	Shanghai,China	Stable performance
		ABB	Shanghai,China

Country: China
Application: Cool Storehouse
Type: constant temperature and constant humidity unit
One model:
Cooling capacity: 22kW
Electric heating capacity: 82kW
Humidifying capacity: 6kg/h
Supply air: 4500 m3/h
Another model:
Cooling capacity: 180kW
Electric heating capacity: 90kW
Humidifying capacity: 30kg/h
Supply air: 35000 m3/h

Country: Nigeria
Application: Pharmaceutical Factory
Type: heat pump type
Cooling capacity: 36.2kW
Heating capacity: 38kW
Refrigerant: R407C
Compressor: Sanyo

Country: Jordan
Application: Textile Factory
Type: heat pump type
Cooling capacity: 368kW
Heating capacity: 359kW
Refrigerant: R410A
Compressor: Copeland
With heat recovery coil

Country: USA
Application: Residential
Type: heat pump type
Cooling capacity: 5 Ton
Heating capacity:
Refrigerant: R410A
Compressor:
COP: 3.0
Power supply: 230V/3PH/60Hz
