Shell and Tube Heat Exchanger

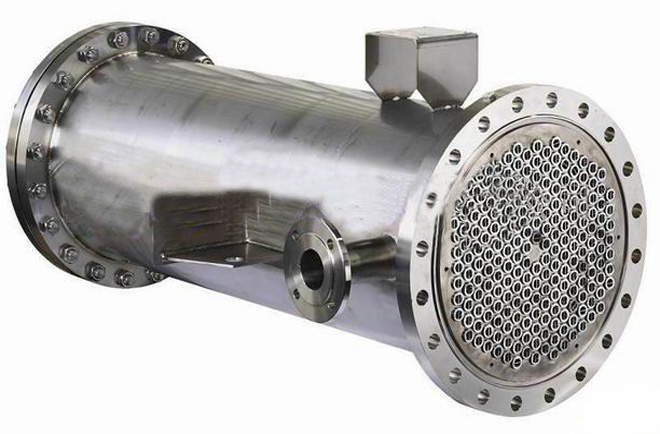

Stainless Steel Shell and Tube Heat Exchanger
In case you do not find the type or model in the website
We can customized according to your request.
Contact Now
Contact Now
- TEL:0086-21-35324169
- FAX:0086-21-35324166
- Email:sales@shenglintec.com
- WhatsApp:0086 13916147965
- Mob:0086 13916147965
Customizable in any stainless steel grade upon request
1. Complete Range of Heat Exchanger Types
Shell-and-tube heat exchangers are available in multiple configurations, including fixed tube-sheet, U-tube and floating-head designs, along with plate and spiral heat exchangers to meet different process needs.
1. Complete Range of Heat Exchanger Types
Shell-and-tube heat exchangers are available in multiple configurations, including fixed tube-sheet, U-tube and floating-head designs, along with plate and spiral heat exchangers to meet different process needs.
2. Flexible Materials & Operating Conditions
Products can be manufactured in carbon steel, low-alloy steel, stainless steel, various non-ferrous metals such as titanium, nickel and copper alloys, as well as corrosion-resistant plastics depending on the application requirements.
Products can be manufactured in carbon steel, low-alloy steel, stainless steel, various non-ferrous metals such as titanium, nickel and copper alloys, as well as corrosion-resistant plastics depending on the application requirements.
They support low, medium and high pressure; low to high temperature applications; and are suitable for a full range of media—from non-corrosive fluids to highly flammable, toxic or strongly corrosive chemicals.
3. Broad Product Scope
We supply coolers, condensers, heaters, preheaters, vaporizers, reboilers, evaporators, steam generators and other customized heat-exchange equipment, as well as various storage tanks and pressure vessels.
We supply coolers, condensers, heaters, preheaters, vaporizers, reboilers, evaporators, steam generators and other customized heat-exchange equipment, as well as various storage tanks and pressure vessels.
4. Quality Assurance & Customer Support
Our facility includes a dedicated NDT inspection laboratory and a physical-property testing laboratory to ensure reliable performance and compliance with standards.
Our facility includes a dedicated NDT inspection laboratory and a physical-property testing laboratory to ensure reliable performance and compliance with standards.
We welcome customers to visit our manufacturing facility for comprehensive inspections and in-depth technical discussions.
| Diameter(mm) | number of tube passes | Quantity of tube | Heat exchanging area(m2) | Pressure(Mpa) | ||||
| Length of tube(m) | 0.25 | |||||||
| 1500 | 2000 | 3000 | 4000 | 6000 | 0.6 | |||
| 159 | 1 | 14 | 1.5 | 2 | 3 | 1.0 | ||
| 219 | 1 | 26 | 3 | 4 | 6 | 8 | 1.6 | |
| 2 | 26 | 3 | 4 | 6 | 8 | 2.5 | ||
| 273 | 1 | 44 | 5 | 7 | 10 | 14 | 21 | 0.6 |
| 2 | 40 | 5 | 6 | 9 | 12 | 19 | 1.0 | |
| 325 | 1 | 60 | 7 | 9 | 14 | 19 | 28 | 1.6 |
| 2 | 56 | 6 | 9 | 13 | 17 | 36 | 2.5 | |
| 400 | 1 | 119 | 14 | 18 | 28 | 37 | 55 | |
| 2 | 110 | 13 | 17 | 26 | 34 | 50 | ||
| 500 | 1 | 185 | 45 | 55 | 85 | |||
| 2 | 180 | 40 | 55 | 85 | ||||
| 600 | 1 | 269 | 60 | 85 | 125 | |||
| 2 | 266 | 60 | 80 | 125 | ||||
| 700 | 1 | 379 | 90 | 120 | 175 | |||
| 2 | 358 | 85 | 110 | 165 | ||||
| 800 | 1 | 511 | 120 | 160 | 240 | |||
| 2 | 488 | 115 | 150 | 230 | ||||
| 900 | 1 | 649 | 150 | 200 | 305 | |||
| 2 | 630 | 145 | 195 | 295 | ||||
| 1000 | 1 | 805 | 185 | 250 | 375 | |||
| 2 | 792 | 185 | 245 | 370 | ||||
| 159 | 1 | 14 | 1.5 | 2 | 3 | 0.25 | ||
Shell and tube heat exchanger is high-efficiency and favorite, which is used in chemical, food, petroleum, pharmacy and etc.
