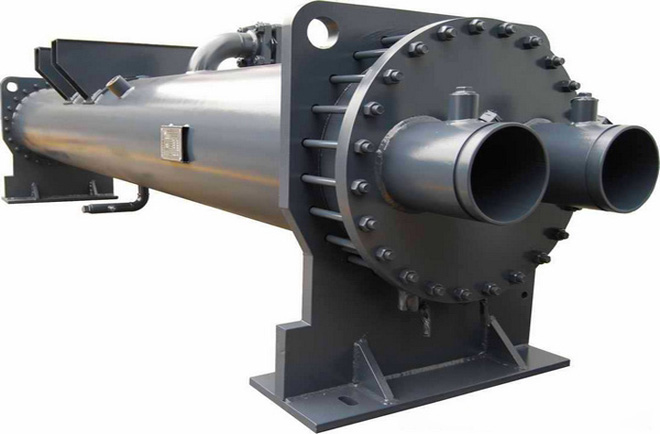

Shell and Tube Heat Exchanger
shell tube heat exchangers
In case you do not find the type or model in the website
We can customized according to your request.
Contact Now
Contact Now
- TEL:0086-21-35324169
- FAX:0086-21-35324166
- Email:sales@shenglintec.com
- WhatsApp:0086 13916147965
- Mob:0086 13916147965
1. According to the form of a fixed tube plate, floating head type, U-tube heat exchanger.
2. According to the structure is divided into one-way, two-pipe and multi-way tube.
3. Divided by the material of carbon steel, stainless steel and carbon steel and stainless steel mixing three condenser tubes.
4.Heat transfer area of 0.5-500 m2 can be customized.
| Diameter(mm) | number of tube passes | Quantity of tube | Heat exchanging area(m2) | Pressure(Mpa) | ||||
| Length of tube(m) | 0.25 | |||||||
| 1500 | 2000 | 3000 | 4000 | 6000 | 0.6 | |||
| 159 | 1 | 14 | 1.5 | 2 | 3 | 1.0 | ||
| 219 | 1 | 26 | 3 | 4 | 6 | 8 | 1.6 | |
| 2 | 26 | 3 | 4 | 6 | 8 | 2.5 | ||
| 273 | 1 | 44 | 5 | 7 | 10 | 14 | 21 | 0.6 |
| 2 | 40 | 5 | 6 | 9 | 12 | 19 | 1.0 | |
| 325 | 1 | 60 | 7 | 9 | 14 | 19 | 28 | 1.6 |
| 2 | 56 | 6 | 9 | 13 | 17 | 36 | 2.5 | |
| 400 | 1 | 119 | 14 | 18 | 28 | 37 | 55 | |
| 2 | 110 | 13 | 17 | 26 | 34 | 50 | ||
| 500 | 1 | 185 | 45 | 55 | 85 | |||
| 2 | 180 | 40 | 55 | 85 | ||||
| 600 | 1 | 269 | 60 | 85 | 125 | |||
| 2 | 266 | 60 | 80 | 125 | ||||
| 700 | 1 | 379 | 90 | 120 | 175 | |||
| 2 | 358 | 85 | 110 | 165 | ||||
| 800 | 1 | 511 | 120 | 160 | 240 | |||
| 2 | 488 | 115 | 150 | 230 | ||||
| 900 | 1 | 649 | 150 | 200 | 305 | |||
| 2 | 630 | 145 | 195 | 295 | ||||
| 1000 | 1 | 805 | 185 | 250 | 375 | |||
| 2 | 792 | 185 | 245 | 370 | ||||
| 159 | 1 | 14 | 1.5 | 2 | 3 | 0.25 | ||
Shell and tube heat exchanger is high-efficiency and favorite, which is used in chemical, food, petroleum, pharmacy and etc.
