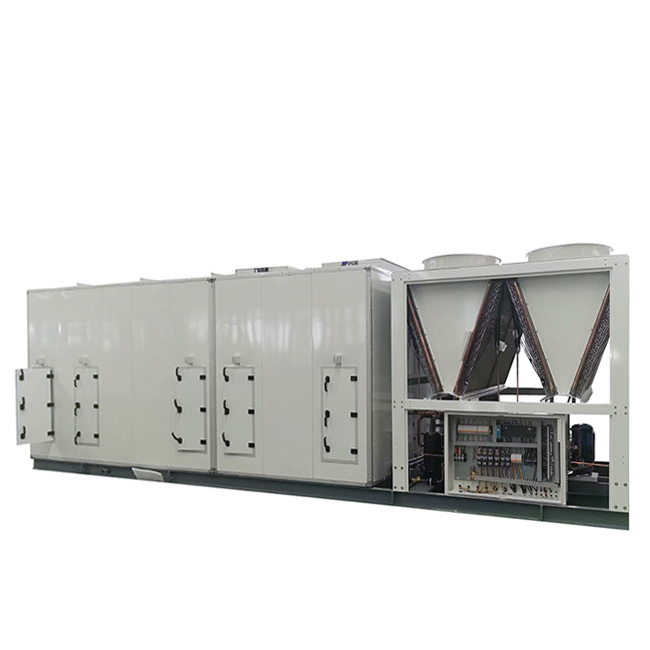

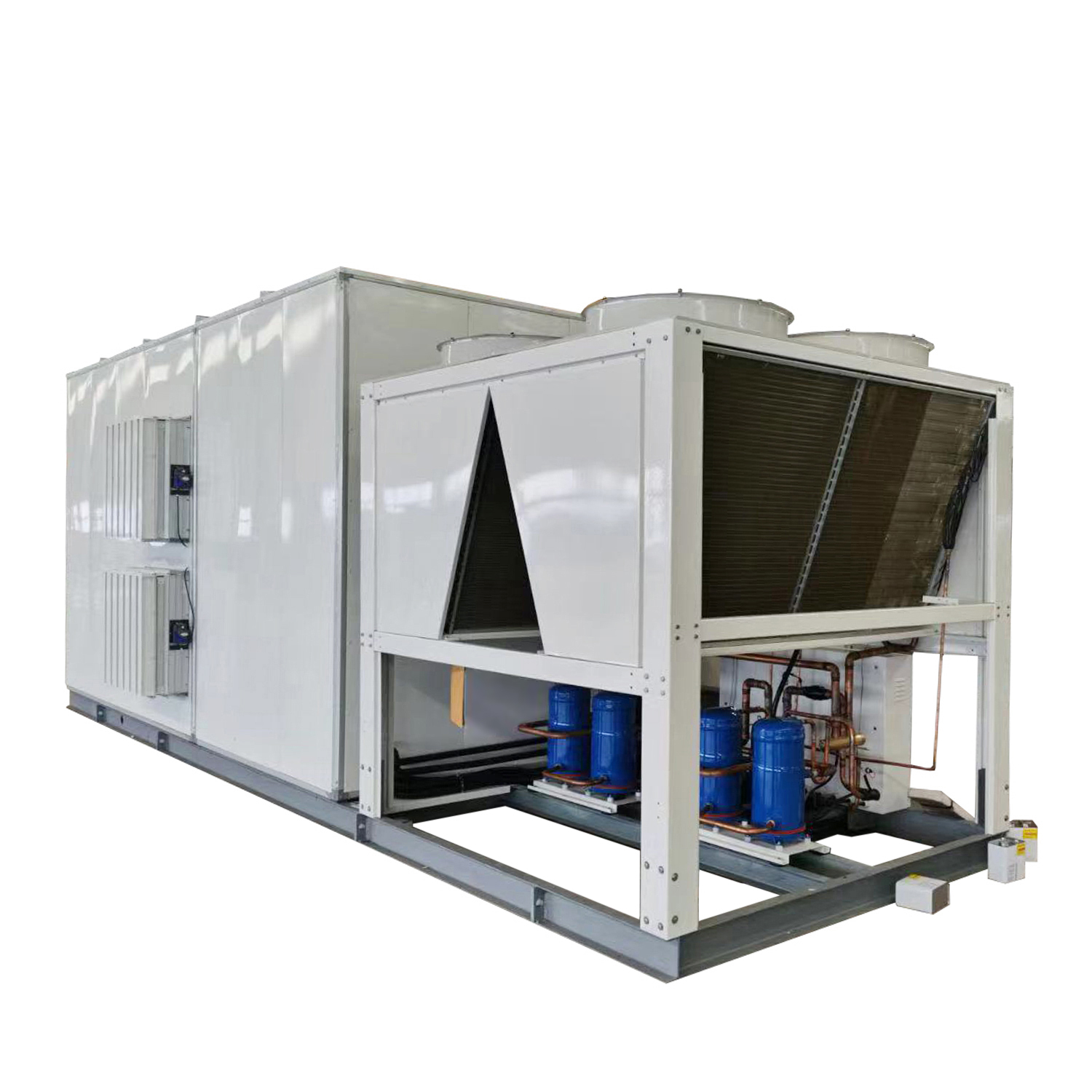

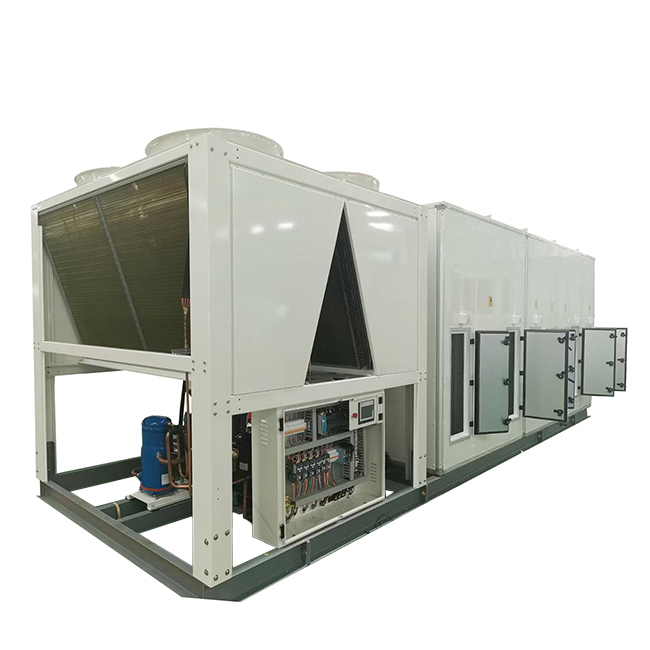

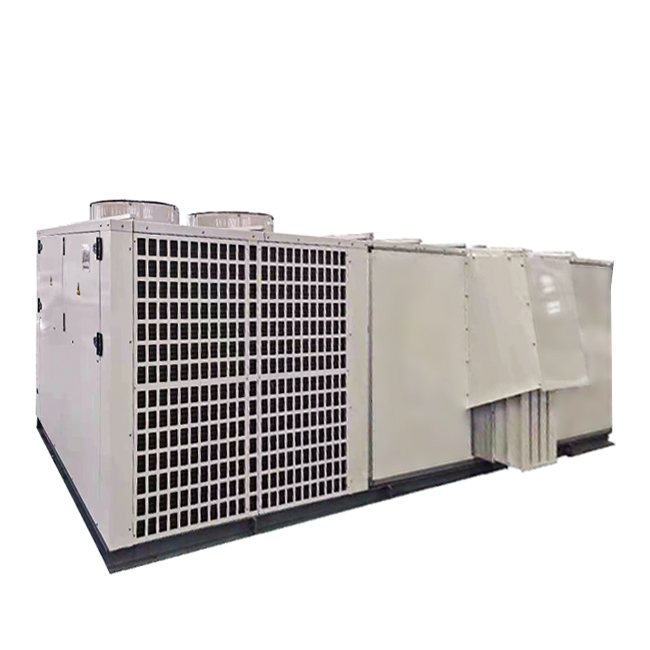

Rooftop Air Conditioner For Thermal Power Plant

In case you do not find the type or model in the website We can customized according to your request.
Contact Now

TEL:0086-21-35324169
FAX:0086-21-35324166
Email:sales@shenglintec.com
WhatsApp:0086 13916147965
Mob:0086 13916147965

Features
Technical Data
Application
Certification
Part List
Reference

1. C5M anti-corrosion grade, about 10 years.

2. Frame: channel steel sandblasting, then primer, then topcoat (sometimes primer and topcoat are also brushed with 2 coats), bolts SS304.

3. Epoxy resin heat exchanger.

4. Can be used in T3 working conditions, and can withstand the environment up to 55°c. (There are 2 reasons):

1) Parallel compressors (can be stopped when the ambient temperature is high, and one compressor can be stopped when the ambient temperature is the highest;

2) All fans are EC frequency conversion, stepless speed regulation (continuous speed regulation).

1、Fixed Speed Rooftop Unit

Nominal Ton		Ton	6.2	7.5	8.5	10	12.5	15	17.5	20	25	30
Mode-RH-			062BB	075BB	085BB	100BB	125BB	150BB	175BB	200BB	250BB	300BB
Power Supply		V,Ph,Hz	380,3Ph,50Hz
Cooling 1	Cooling Capacity	kBtu/h	75	89	103	120	150	180	208	240	300	360
	Cooling Capacity	kW	22	26	30	35	43	53	61	70	87	105
	Power Input	kW	6.6	7.9	9.3	10.7	13.3	16.7	19.1	22.6	28.85	35.29
	EER 1	Btu/h/W	11.4	11.3	11.1	11.2	11.3	10.8	10.9	10.6	10.4	10.2
Cooling 2	Cooling Capacity	kBtu/h	61.5	72.98	85	98.4	123	155	175	200	252	315
	Cooling Capacity	kW	18	21	25	29	36	45	51	59	74	92
	Power Input	kW	7.6	9.1	10.8	12.3	15.4	19.5	22.1	25.2	32	39
	EER 2	Btu/h/W	8.1	8.0	7.9	8.0	8.0	7.9	7.9	7.9	7.9	8.1
Heating	Heating Capacity	kBtu/h	89	103	120	137	154	191	218	260	330	380
	Heating Capacity	kW	26	30	35	40	45	56	64	75	97	111.5
	Power Input	kW	7.5	8.9	10.6	11.9	13.2	17.2	19.5	23.6	30.28	35.19
	COP	Btu/h/W	11.9	11.6	11.3	11.5	11.7	11.1	11.2	11.0	10.9	10.8
Max. Input Consumption		kW	8.6	12	13.6	15	19.7	25	27	32.5	38.5	42.7
Max. Current		A	18.3	24.8	26.5	28.8	38.2	46.1	55.4	63.2	74.3	81.7
Performance	Indoor Fan Air Flow	CFM	2800		3500		5500		7600		11200
Performance	ESP	Pa	80		110		130		200		320
Indoor	Type		FC Centrifugal
Compressor	Type		Scroll
Compressor	Quantity		1	1	1	1	1	1	2	2	2	2
Outdoor Fan	Type		Propeller
Outdoor Fan	Quantity		1	1	1	1	1	1	2	2	2	2
Refrigerant	Type		R410A
	Refrigerant Volume	kg	4.3	4.8	5.2	6.5	7.8	9	5.5+5.5	6.7+6.7	7.6+7.6	8.6+8.6
	Refrigerant Control		Electronic expansion valve
Sound Pressure Level		dB(A)	71.5	71.5	71.2	71.5	71.8	76.9	76	75.3	76.8	77.9
Ambient Temperature	Cooling		16° C-52° C
Ambient Temperature	Heating		-10° C-24° C
Net Weight		kg	229	244	340	343	451	492	615	690	940	955
Gross Weight		kg	234	249	350	354	471	512	645	720	970	985
Net Dimension	wxhxd	mm	1475x840 x1130		1475x1260 x1130		1965x1260 x1130		2200x1260 x1670		2200x1260 x2320
Packing	wxhxd	mm	1495x850 x1150		1195x1270 x1150		1985x1270 x1150		2220x1270 x1690		2220x1270 x2340
Shipping	Qty'Per 20'/40'/40'HQ		12/24/48		8/16/32		6/12/24		3/7/14		2/5/10

2、Inverter Rooftop Unit

Nominal Ton		Ton	6.2	7.5	8.5	10	12.5	15	17.5	20	25	30
Mode -RH -xxx -BBDC			62	75	85	100	125	150	175	200	250	300
Power Supply		V,Ph,Hz	380,3Ph,50Hz
Cooling 1	Cooling Capacity	kBtu/h	75	89	103	120	150	180	208	240	300	360
	Cooling Capacity	kW	22	26	30	35	43	53	61	70	87	105
	Power Input	kW	6.8	8	9.8	11.8	14.8	17.8	21	23.1	32.7	38.7
	EER 1	Btu/h/W	11.0	11.1	10.5	10.2	10.1	10.1	9.9	10.4	9.2	9.3
Cooling 2	Cooling Capacity	kBtu/h	61.5	71	84	98.4	125	155	170	200	252	305
	Cooling Capacity	kW	18	21	25	29	37	45	50	59	74	89
	Power Input	kW	7.6	8.8	10.5	12.5	15.7	19.2	21.5	25	33.8	40.2
	EER 2	Btu/h/W	8.1	8.1	8.0	7.9	8.0	8.1	7.9	8.0	7.5	7.6
Heating	Heating Capacity	kBtu/h	76.4	91.4	109.1	124.9	156	187	209.8	248.4	311.8	374
	Heating Capacity	kW	22.4	26.8	32	36.6	45.7	54.8	61.5	72.8	91.4	109.6
	Power Input	kW	6.6	7.6	9.7	11.1	14.3	17	19.5	22.3	31.7	37.6
	COP	Btu/h/W	11.6	12.0	11.2	11.3	10.9	11.0	10.8	11.1	9.8	9.9
Max. Input Consumption		kW	8.6	9.2	10.8	13.3	16	20	24.1	28.4	31.2	44.2
Max. Current		A	18.3	18.2	21.5	26.4	31.2	39	47	55.4	60.9	86.2
Performance	Indoor Fan Air Flow	CFM	2800		3500		5500		7600		11200
Performance	ESP	Pa	80		110		130		200		320
Indoor Fan	Type		FC Centrifugal
Compressor	Type		Scroll
Compressor	Quantity		1	1	1	1	1	1	2	2	2	2
Outdoor Fan	Type		Propeller
Outdoor Fan	Quantity		1	1	1	1	1	1	2	2	2	2
Refrigerant	Type		R410A
	Refrigerant Volume	kg	4.3	4.8	5.2	6.5	7.8	9	5.5+5.5	6.7+6.7	7.6+7.6	8.6+8.6
	Refrigerant Control		Electronic expansion valve
Sound Pressure Level		dB(A)	71.5	71.5	71.2	71.5	71.8	76.9	76	75.3	76.8	77.9
Ambient Temperature	Cooling		16° C-52° C
Ambient Temperature	Heating		-10° C-24° C
Net Weight		kg	233	248	346	349	459	500	625	700	955	970
Gross Weight		kg	238	253	356	360	479	520	655	730	985	1000
Net Dimension	wxhxd	mm	1475x840 x1130		1475x1260 x1130		1965x1260 x1130		2200x1260 x1670		2200x1260 x2320
Packing	wxhxd	mm	1495x850 x1150		1195x1270 x1150		1985x1270 x1150		2220x1270 x1690		2220x1270 x2340
Shipping	Qty'Per 20'/40'/40'HQ		12/24/48		8/16/32		6/12/24		3/7/14		2/5/10

Notes:

1. Cooling capacity test condition (1): Outdoor ambient temperature: 35°C, indoor temperature: 26.7°CDB/19.4°CWB;

Cooling capacity test condition (2): Outdoor ambient temperature: 46°C, indoor temperature: 26.7°CDB/19.4°CWB;

Heating capacity test condition: Outdoor ambient temperature: 7°CDB/6°CWB, indoor temperature 20°CDB/ 15°CWB;

2. Units are suitable for operation to ±20% of nominal CFM;

3. Sound values are measured in a semi-anechoic room, at a position 1 meter in front of the unit and (1 meter+Height of unit)/2 above the floor.

4. Specifications are subject to change without prior notice for product improvement.

5. * Nominal ton only for reference.

6. Cooling or heating capacity as per specifications.

Customized design for Middle east country power plant.

No.	Name	Brand	Country	Feature	Remark
1	Compressor	Copeland	Suzhou,China	Fully enclosed vortex type, efficient and reliable
		Panasonic	Dalian,China
		Yinghuate	Suzhou,China
2	Fin evaporator	Shenglin	Hebei,China	Inner grooved copper tube, hydrophilic aluminum foil, high efficiency, not easy to scale
3	Fin evaporator	Shenglin	Hebei,China	Inner grooved copper tube, hydrophilic aluminum foil, high efficiency, not easy to scale
4	Centrifugal fan	Yingdeli	Jiangsu,China	Efficient, low noise, and smooth operation
		Yilida	Zhejiang,China
5	Axial fan	Xingxin	Hebei,China	Compact structure, low noise, high efficiency
		Kemao	Zhejiang,China
4	Thermal expansion valve	Sanhua	Zhejiang,China	External balance type, long service life, high compressive strength
		Emerson	Jiangsu,China
5	Four-way valve	Sanhua	Zhejiang,China	Low leakage	Only for heat pump type
		Dun An	Zhejiang,China
6	One-way valve	Sanhua	Zhejiang,China	Low reverse leakage	Only for heat pump type
		Taohua	Jiangsu,China
7	High voltage switch	Match-Well	Jiangsu,China	Stable performance
8	Low voltage switch	Match-Well	Jiangsu,China	Stable performance
9	Dry filter	Sanhua	Zhejiang,China	High drying filtration
		Dun An	Zhejiang,China
10	Controller	Punp	Guangzhou,China	Stable performance, meeting the needs of different users
		Syslab	Shengzhen,China
11	Contactor	Schneider	Shanghai,China	Long lifecycle
		ABB	Shanghai,China
12	Circuit breaker	Schneider	Shanghai,China	Stable performance
		ABB	Shanghai,China

No.	Name	Brand	Country	Feature	Remark
1	Compressor	Copeland	Suzhou,China	Fully enclosed vortex type, efficient and reliable
		Panasonic	Dalian,China
		Yinghuate	Suzhou,China
2	Fin evaporator	Shenglin	Hebei,China	Inner grooved copper tube, hydrophilic aluminum foil, high efficiency, not easy to scale
3	Fin evaporator	Shenglin	Hebei,China	Inner grooved copper tube, hydrophilic aluminum foil, high efficiency, not easy to scale
4	Centrifugal fan	Yingdeli	Jiangsu,China	Efficient, low noise, and smooth operation
		Yilida	Zhejiang,China
5	Axial fan	Xingxin	Hebei,China	Compact structure, low noise, high efficiency
		Kemao	Zhejiang,China
4	Thermal expansion valve	Sanhua	Zhejiang,China	External balance type, long service life, high compressive strength
		Emerson	Jiangsu,China
5	Four-way valve	Sanhua	Zhejiang,China	Low leakage	Only for heat pump type
		Dun An	Zhejiang,China
6	One-way valve	Sanhua	Zhejiang,China	Low reverse leakage	Only for heat pump type
		Taohua	Jiangsu,China
7	High voltage switch	Match-Well	Jiangsu,China	Stable performance
8	Low voltage switch	Match-Well	Jiangsu,China	Stable performance
9	Dry filter	Sanhua	Zhejiang,China	High drying filtration
		Dun An	Zhejiang,China
10	Controller	Punp	Guangzhou,China	Stable performance, meeting the needs of different users
		Syslab	Shengzhen,China
11	Contactor	Schneider	Shanghai,China	Long lifecycle
		ABB	Shanghai,China
12	Circuit breaker	Schneider	Shanghai,China	Stable performance
		ABB	Shanghai,China

Country: China Application: Cool Storehouse Type: constant temperature and constant humidity unit One model: Cooling capacity: 22kW Electric heating capacity: 82kW Humidifying capacity: 6kg/h Supply air: 4500 m3/h Another model: Cooling capacity: 180kW Electric heating capacity: 90kW Humidifying capacity: 30kg/h Supply air: 35000 m3/h	Country: Nigeria Application: Pharmaceutical Factory Type: heat pump type Cooling capacity: 36.2kW Heating capacity: 38kW Refrigerant: R407C Compressor: Sanyo
