Rooftop air conditioner

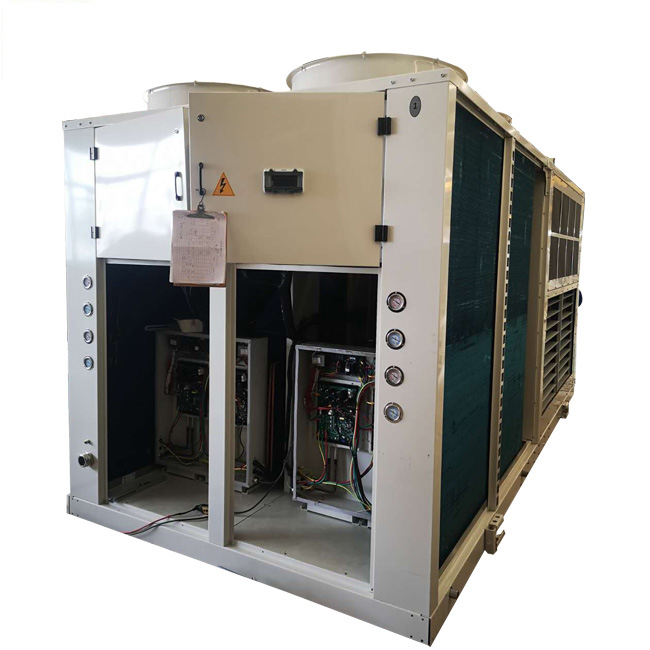

Air Conditioner Rooftop Aircon/Rooftop Unit(35~85Tons)

In case you do not find the type or model in the website We can customized according to your request.
Contact Now

TEL:0086-21-35324169
FAX:0086-21-35324166
Email:sales@shenglintec.com
WhatsApp:0086 13916147965
Mob:0086 13916147965

Features
Technical Data
Application
Certification
Part List
Reference

Capacity: 35~85Tons, 122~300kW, 416000~1024000 BTUs
Efficiency: 2.7~3.3 cop.
Warranty: Compressor- 3 years limited. other parts-1 year limited.

Structure

Panels and frame are made from galvanized steel protected with polyester powder painting to ensure total resistance to atmospheric agents.

Direct expansion coils with condensate drain tray.

Hermetic compressor

High efficiency scroll compressor for the whole range, with built-in thermal overload cut-out and crankcase heater,mounted on rubber vibration dampers.

Ripple type acoustic insulation for compressor section, and thermal insulation for coil and fan section, low noise.

Centrifugal fan

Forward curve centrifugal fans for air treatment section and axial fans for condensation section. Front, side and underside air discharge of the treatment unit. High external pressure, long air supply distance.

Electric panel

Electric panel consists of breakers and contactors for compressors and fan motors, phase sequence relay and other necessary protection devices for the main components.

Easy operation line controller

Cooling/Heating/Auto. Error indication. Timing on/off.

Optional

• Economizer with fresh, return air dampers and fresh air hood.

• Free cooling function for low ambient temperature.

• Low ambient control device for operation of outdoor units at ambient temperatures from less than 20°C down to -10°C

• BMS devices.

• T3 (Tropical climate).

• Condenser coil guard.

• Roof curb.

• Metal / aluminum filter.

• Air pressure switch for indoor fan.

• High static condenser fan option with sealed+ drain.condensing section.

• Optional water heating coil.

• Metal or plastic mesh on condenser coil.

• Optional supply / return air configurations.

• Upgraded evaporator fan motor drives.

• G4 filter, plate and bag filter.

1、Fixed Speed Rooftop Unit

Nominal ton			(Ton)	6.2	7.5	8.5	10	12.5	15	17.5	20	25	30
Model				RH-062BB	RH-075BB	RH-085BB	RH-100BB	RH-125BB	RH-150BB	RH-175BB	RH-200BB	RH-250BB	RH-300BB
Power Supply			V,Ph,Hz	380,3Ph,50Hz	380,3Ph,50Hz	380,3Ph,50Hz	380,3Ph,50Hz	380,3Ph,50Hz	380,3Ph,50Hz	380,3Ph,50Hz	380,3Ph,50Hz	380,3Ph,50Hz	380,3Ph,50Hz
Cooling 1		Cooling Capacity	Btu/h	75000	89000	103000	120000	150000	180000	208000	240000	300000	360000
		Cooling Capacity	kW	22	26	30	35	43	53	61	70	87	105
		Power Input	kW	6.6	7.9	9.3	10.7	13.3	16.7	19.1	22.6	28.85	35.29
		EER 1	Btu/h/W	11.4	11.3	11.1	11.2	11.3	10.8	10.9	10.6	10.4	10.2
Cooling 2		Cooling Capacity	Btu/h	61500	72980	85000	98400	123000	155000	175000	200000	252000	315000
		Cooling Capacity	kW	18	21	25	29	36	45	51	59	74	92
		Power Input	kW	7.6	9.1	10.8	12.3	15.4	19.5	22.1	25.2	32	39
		EER 2	Btu/h/W	8.1	8.0	7.9	8.0	8.0	7.9	7.9	7.9	7.9	8.1
Heating		Heating Capacity	Btu/h	89000	103000	120000	137000	154000	191000	218000	260000	330000	380000
		Heating Capacity	kW	26	30	35	40	45	56	64	75	97	111.5
		Power Input	kW	7.5	8.9	10.6	11.9	13.2	17.2	19.5	23.6	30.28	35.19
		COP	Btu/h/W	11.9	11.6	11.3	11.5	11.7	11.1	11.2	11.0	10.9	10.8
Max. input consumption			kW	8.6	12	13.6	15	19.7	25	27	32.5	38.5	42.7
Max. current			A	18.3	24.8	26.5	28.8	38.2	46.1	55.4	63.2	74.3	81.7
Performance	Indoor fan air flow		CFM	2800	2800	3500	3500	5500	5500	7600	7600	11200	11200
Performance	ESP		Pa	80	80	110	110	130	130	200	200	320	320
Indoor fan	Type			FC Centrifugal	FC Centrifugal	FC Centrifugal	FC Centrifugal	FC Centrifugal	FC Centrifugal	FC Centrifugal	FC Centrifugal	FC Centrifugal	FC Centrifugal
Compressor	Type			Scroll	Scroll	Scroll	Scroll	Scroll	Scroll	Scroll	Scroll	Scroll	Scroll
Compressor	Quantity			1	1	1	1	1	1	2	2	2	2
Outdoor Fan	Type			Propeller	Propeller	Propeller	Propeller	Propeller	Propeller	Propeller	Propeller	Propeller	Propeller
Outdoor Fan	Quantity			1	1	1	1	1	1	2	2	2	2
Refrigerant	Type			R410A	R410A	R410A	R410A	R410A	R410A	R410A	R410A	R410A	R410A
	Refrigerant volume		kg	4.3	4.8	5.2	6.5	7.8	9	5.5+5.5	6.7+6.7	7.6+7.6	8.6+8.6
	Refrigerant Control			Electronic expansion valve	Electronic expansion valve	Electronic expansion valve	Electronic expansion valve	Electronic expansion valve	Electronic expansion valve	Electronic expansion valve	Electronic expansion valve	Electronic expansion valve	Electronic expansion valve
Sound pressure level			dB(A)	71.5	71.5	71.2	71.5	71.8	76.9	76	75.3	76.8	77.9
Ambient temperature	Cooling			16° C-52° C	16° C-52° C	16° C-52° C	16° C-52° C	16° C-52° C	16° C-52° C	16° C-52° C	16° C-52° C	16° C-52° C	16° C-52° C
Ambient temperature	Heating			-10° C-24° C	-10° C-24° C	-10° C-24° C	-10° C-24° C	-10° C-24° C	-10° C-24° C	-10° C-24° C	-10° C-24° C	-10° C-24° C	-10° C-24° C
Net Weight			kg	229	244	340	343	451	492	615	690	940	955
Gross Weight			kg	234	249	350	354	471	512	645	720	970	985
Net Dimension	WxHxD		mm	1475x840x1130	1475x840x1130	1475x1260x1130	1475x1260x1130	1965x1260x1130	1965x1260x1130	2200x1260x1670	2200x1260x1670	2200x1260x2320	2200x1260x2320
Packing	WxHxD		mm	1495x850x1150	1495x850x1150	1195x1270x1150	1495x1270x1150	1985x1270x1150	1985x1260x1150	2220x1270x1690	2220x1270x1690	2220x1270x2340	2220x1270x2340
Shipping	Qty'Per 20'/40'/40'HQ			12/24/48	12/24/48	8/16/32	8/16/32	6/12/24	6/12/24	3/7/14	3/7/14	2/5/10	2/5/10

2、Inverter Rooftop Unit

Nominal ton			(Ton)	6.2	7.5	8.5	10	12.5	15	17.5	20	25	30
Model				RH-062BBDC	RH-075BBDC	RH-085BBDC	RH-100BBDC	RH-125BBDC	RH-150BBDC	RH-175BBDC	RH-200BBDC	RH-250BBDC	RH-300BBDC
Power Supply			V,Ph,Hz	380,3Ph,50Hz	380,3Ph,50Hz	380,3Ph,50Hz	380,3Ph,50Hz	380,3Ph,50Hz	380,3Ph,50Hz	380,3Ph,50Hz	380,3Ph,50Hz	380,3Ph,50Hz	380,3Ph,50Hz
Cooling 1		Cooling Capacity	Btu/h	75000	89000	103000	120000	150000	180000	208000	240000	300000	360000
		Cooling Capacity	kW	22	26	30	35	43	53	61	70	87	105
		Power Input	kW	6.8	8	9.8	11.8	14.8	17.8	21	23.1	32.7	38.7
		EER 1	Btu/h/W	11.0	11.1	10.5	10.2	10.1	10.1	9.9	10.4	9.2	9.3
Cooling 2		Cooling Capacity	Btu/h	61500	71000	84000	98400	125000	155000	170000	200000	252000	305000
		Cooling Capacity	kW	18	21	25	29	37	45	50	59	74	89
		Power Input	kW	7.6	8.8	10.5	12.5	15.7	19.2	21.5	25	33.8	40.2
		EER 2	Btu/h/W	8.1	8.1	8.0	7.9	8.0	8.1	7.9	8.0	7.5	7.6
Heating		Heating Capacity	Btu/h	76400	91400	109100	124900	156000	187000	209800	248400	311800	374000
		Heating Capacity	kW	22.4	26.8	32	36.6	45.7	54.8	61.5	72.8	91.4	109.6
		Power Input	kW	6.6	7.6	9.7	11.1	14.3	17	19.5	22.3	31.7	37.6
		COP	Btu/h/W	11.6	12.0	11.2	11.3	10.9	11.0	10.8	11.1	9.8	9.9
Max. input consumption			kW	9.2	10.8	13.3	16	20	24.1	28.4	31.2	44.2	52.3
Max. current			A	18.2	21.5	26.4	31.2	39	47	55.4	60.9	86.2	102
Performance	Indoor fan air flow		CFM	2800	2800	3500	3500	5500	5500	7600	7600	11200	11200
Performance	ESP		Pa	80	80	110	110	130	130	200	200	320	320
Indoor fan	Type			FC Centrifugal	FC Centrifugal	FC Centrifugal	FC Centrifugal	FC Centrifugal	FC Centrifugal	FC Centrifugal	FC Centrifugal	FC Centrifugal	FC Centrifugal
Compressor	Type			Rotor	Rotor	Scroll	Scroll	Scroll	Scroll	Scroll	Scroll	Scroll	Scroll
Compressor	Quantity			1	1	1	1	1	1	2	2	2	2
Outdoor Fan	Type			Propeller	Propeller	Propeller	Propeller	Propeller	Propeller	Propeller	Propeller	Propeller	Propeller
Refrigerant	Type			R410A	R410A	R410A	R410A	R410A	R410A	R410A	R410A	R410A	R410A
	Refrigerant volume		kg	4.3	4.8	5.0	5.2	7.2	9	5.5+5.5	6.7+6.7	7.6+7.6	8.6+8.6
	Refrigerant Control			Electronic expansion valve	Electronic expansion valve	Electronic expansion valve	Electronic expansion valve	Electronic expansion valve	Electronic expansion valve	Electronic expansion valve	Electronic expansion valve	Electronic expansion valve	Electronic expansion valve
Sound pressure level			dB(A)	71.5	71.5	71.2	71.5	71.8	76.9	76	75.3	76.8	77.9
Ambient temperature	Cooling			16° C-52° C	16° C-52° C	16° C-52° C	16° C-52° C	16° C-52° C	16° C-52° C	16° C-52° C	16° C-52° C	16° C-52° C	16° C-52° C
Ambient temperature	Heating			-10° C-24° C	-10° C-24° C	-10° C-24° C	-10° C-24° C	-10° C-24° C	-10° C-24° C	-10° C-24° C	-10° C-24° C	-10° C-24° C	-10° C-24° C
Net Weight			kg	233	248	346	349	459	500	625	700	955	970
Gross Weight			kg	238	253	356	360	479	520	655	730	985	1000
Net Dimension	WxHxD		mm	1475x840x1130	1475x840x1130	1475x1260x1130	1475x1260x1130	1965x1260x1130	1965x1260x1130	2200x1260x1670	2200x1260x1670	2200x1260x2320	2200x1260x2320
Packing	WxHxD		mm	1495x850x1150	1495x850x1150	1195x1270x1150	1495x1270x1150	1985x1270x1150	1985x1260x1150	2220x1270x1690	2220x1270x1690	2220x1270x2340	2220x1270x2340
Shipping	Qty'Per 20'/40'/40'HQ			12/24/48	12/24/48	8/16/32	8/16/32	6/12/24	6/12/24	3/7/14	3/7/14	2/5/10	2/5/10

Notes:

1. Cooling capacity test condition (1): Outdoor ambient temperature: 35° C, indoor temperature 26.7° CDB/19.4° C WB;

Cooling capacity test condition (2): Outdoor ambient temperature: 46°C, indoor temperature: 26.7°CDB, 19.4°CWB;

Heating capacity test condition : Outdoor ambient temperature: 7 ° CDB/6° C WB, indoor temperature 20° C DB/ 15° C WB;

2. Units are suitable for operation to ± 20% of nominal CFM;

3. Sound values are measured in a semi-anechoic room, at a positon 1 meter in front ofthe unit and (1 meter+Height of unit)/2 above the floor.

4. Specifications are subject to change without prior notice for product improvement.

5. * Nominal ton only for reference.

6. Cooling or heating capacity as per specifications.
