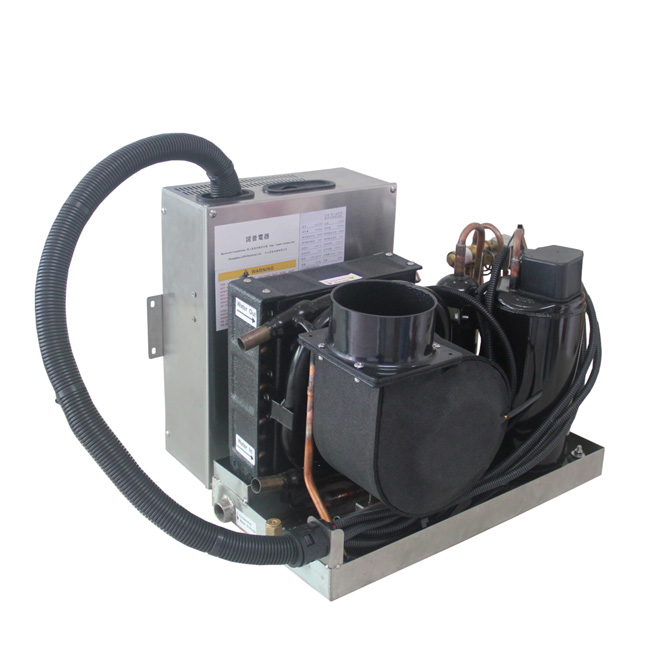

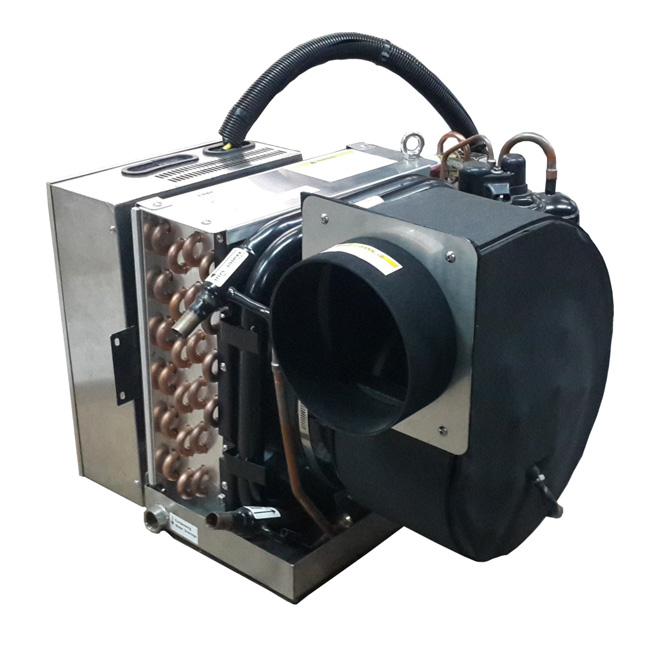

Marine DC Unit

Model

MS3.5-A3A

MS3.5-B3A

MS7-B3A

MS7-C3A

MS11-C3A

Power supply

Ph-V-Hz

DC12V

DC24V

DC24V

DC48V

DC48V

Cooling

Capacity

BTU

3,500

3,500

7,000

7,000

11,000

Input power

W

295

296

560

560

850

Rated current

A

26

13

26

26

20

EER

3.5

3.5

3.8

3.8

3.6

Heating

Capacity

BTU

4,000

4,000

7,500

7,500

12,000

Input power

W

310

310

540

540

890

Rated current

A

27

13.5

25

25

22

COP

3.8

3.8

4.0

4.0

4.0

Max.current

A

31

16

28

28

24

Sea water flow

M3/h

0.35

0.45

0.46

0.46

0.75

Indoor air flow

M3/h

250

250

290

290

760

Dehumidification capacity

L/h

0.6

0.6

0.7

0.7

1.6

Noise level

dB(A)

≤55

≤55

≤55

≤55

≤58

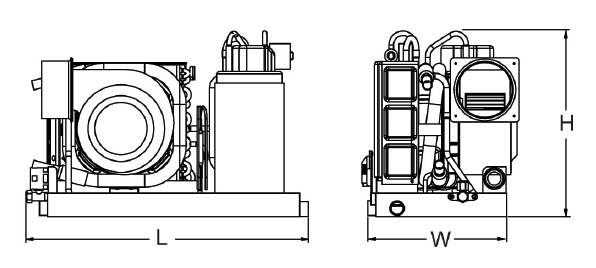

Dimension(L*W*H)

mm

490X236X282

484X236X318

598X365X346

Control box(L*W*H)

mm

252X212X125

262X222X125

Net weight

Kg

20

20

25

25

36

Refrigerant type

R134a

Fan duct size

mm

Φ100

Φ100

Φ100

Φ100

Φ150

Sea water pipe

mm

Φ19

Condensed water pipe

Mm

G1/2”-19
