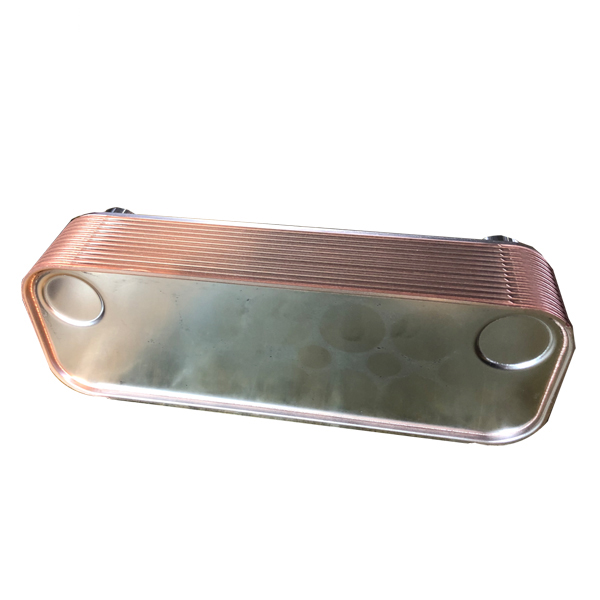

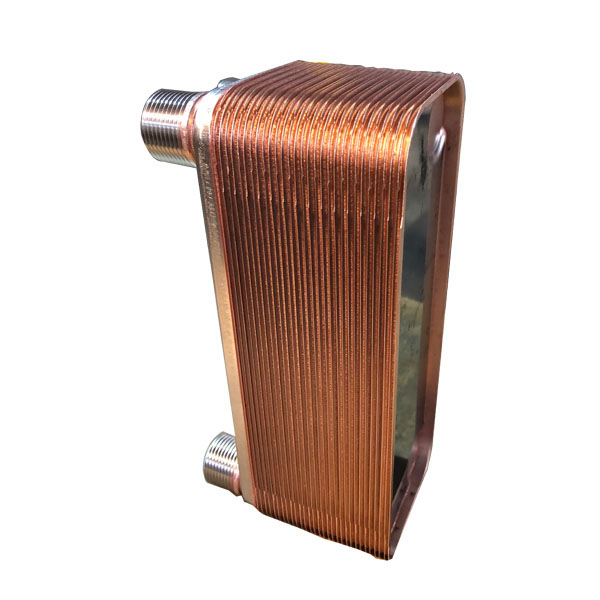

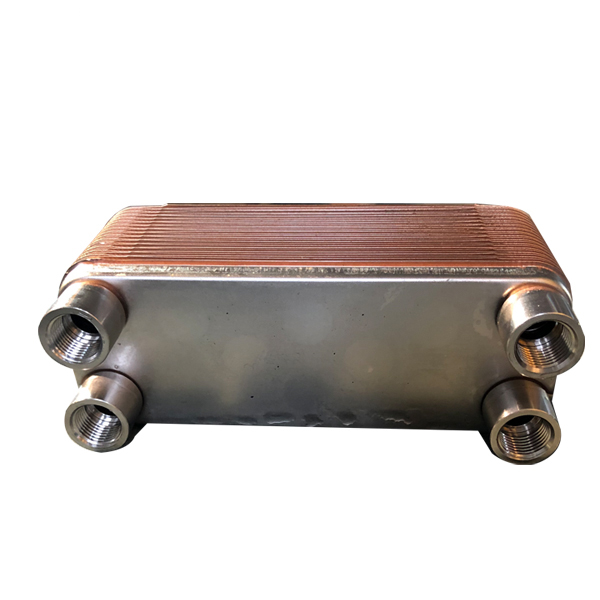

Brazed Plate Heat Exchanger

1. Compact structure: adopt thin stainless steel, high heat transfer factors.
2. Reliability: adopt 316L and copper as well as high quality brazing works. Endure high pressure and temperature. Long life and no maintenance need.
3. Reduce water require: with the high great transfer efficiency, only need 1/3 water usage compare to shell and tube heat exchanger under same condition.
4. Lightly: only 20-30% weight compare to shell and tube heat exchanger and reduce the logistics cost.
5. Low fouling factors: high disorderly flow lower the fouling condition, reduce the maintain.
6. With distributor: in crease the refrigerant evaporating efficiency and reduce the risks by using the distributor to force the refrigerant flow direction.



Model	Number of plates	A（mm）	Weight（kg）	Hold-up volume Q1Q2  Q3Q4	Heat exchange area
B3-095	n	11+2.4n	5.2+0.41n	0.21Xn/2  0.21X(n-2)/2	(n-2)X0.095

Products Description

Design Pressure	3.0MPa
	4.5MPa
Test Pressure	4.5MPa
	6.75MPa
Design Temperature	-196～+200℃
Type of Channels	H
Max.Welded Connection	2 1/8"
Max.Threaded Connection	2"
Max.Number of Plates	250



1. Air conditioning and HVAC industrial: As evaporator, condenser, super heater, sub cooler, heat recovery and economizer.
2. Chemical Industrial: Heating and cooling process, evap./cond. process.
3. Metallurgy industrial: Rolling mill, cast machine,exygen machine, hydraulic,/lubricant, cycle cooling water.
4. Power industrial: Transformer oil cooler, rtc.
5. Textile and paper industrial: Waste gas, liquid heat recovery.
