Fin Evaporator
Cabinet Air Conditioner Evaporator And Condenser
  • Cabinet Air Conditioner Evaporator And Condenser
  • Cabinet Air Conditioner Evaporator And Condenser
  • Cabinet Air Conditioner Evaporator And Condenser
  • Cabinet Air Conditioner Evaporator And Condenser

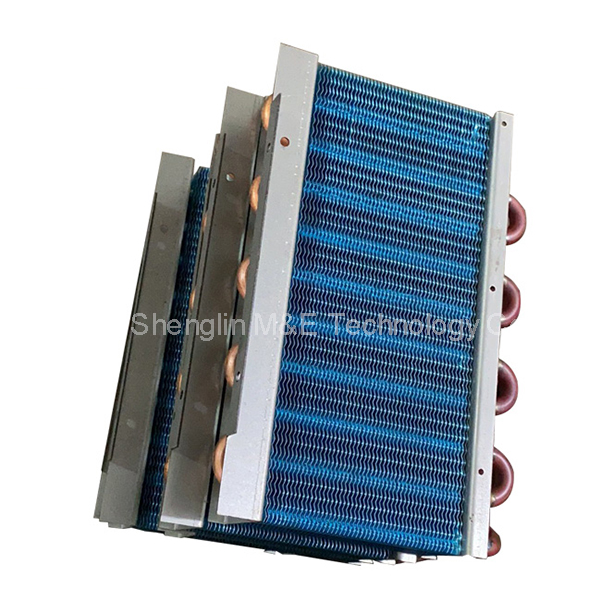

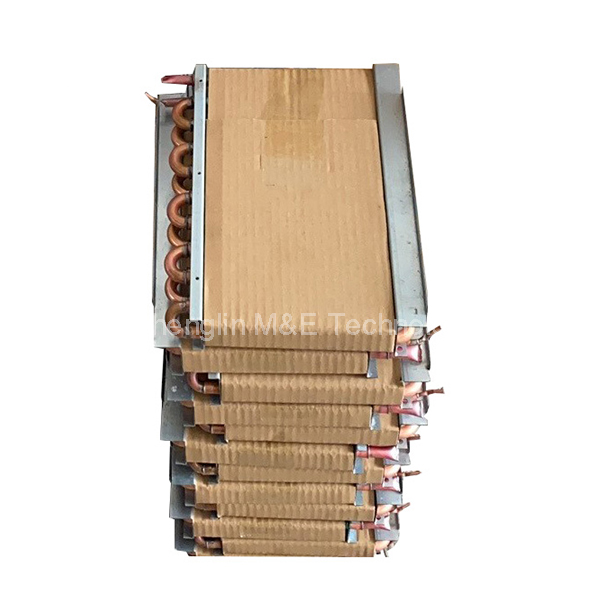

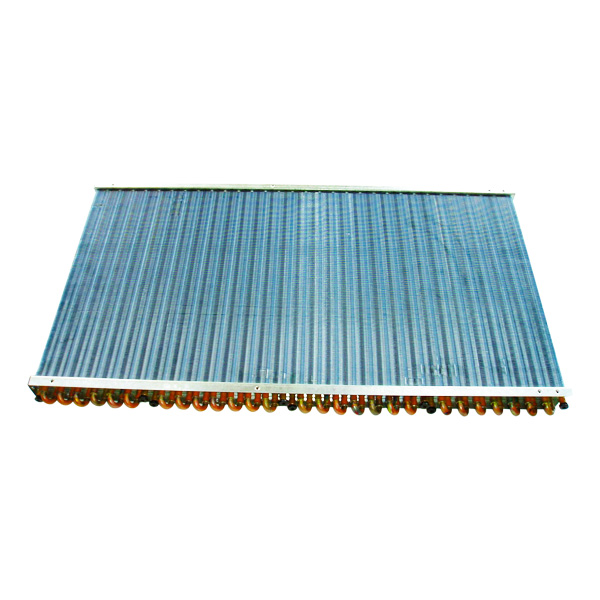

Cabinet Air Conditioner Evaporator And Condenser

In case you do not find the type or model in the website We can customized according to your request.
Contact Now
  • Features
  • Technical Data
  • Application
  • Certification
  • Part List
  • Reference

Condenser coil or heat exchanger in HVAC/R system cools up the substances (i.e. refrigerants) and in turn let out latent heat from the system.
In a typical A/C system, the condenser coil is the one located outdoor letting out heat, while the other coil–the evaporator coil–is located indoor chilling the space.
The fin condenser uses high-performance plain tubes and inner grooved tubes, and is finely processed from bare foil and hydrophilic aluminum foil materials with good anti-corrosion properties, (blygold, heresite and epoxy coating is available). The product is pollution-free, moisture-proof, has good performance and is durable.

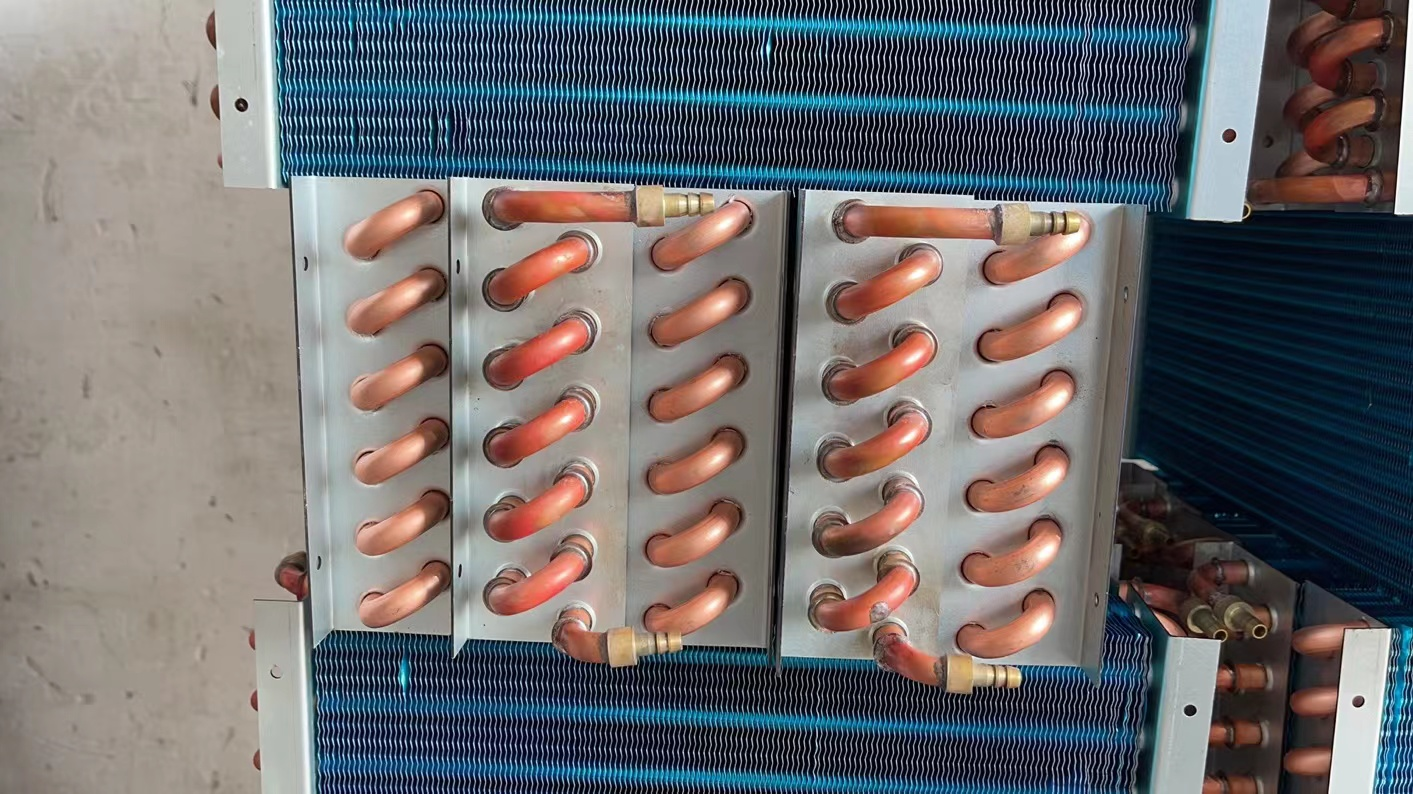

Evaporator and condenser coils for Ukraine outdoor telecom cabinets :



Also  we can offer counter flow air to air heat exchanger, please click here.


About Shenglin:

    Shenglin is a leading design and manufacturing company specialized in Tube Fin Heat Exchangers.
    Our skilled engineers utilize Italy's state-of-the-art Mcoil thermal calculation software to create high-quality heat exchangers. Their expertise enables us to produce accurate drawings and performance calculation documents.
    In terms of production, our advanced facilities house multiple dedicated production lines for finned tube heat exchangers.
    Our sheet metal production lines are equipped with cutting-edge laser cutting machines, CNC punch presses, CNC bending machines, and stretching hydraulic devices for guide rings. Furthermore, our tube-expanding equipment includes both mechanical and hydraulic tube expanders. Shenglin utilizes gas welding and argon arc welding methods, as well as offering spray coating and electrophoretic processes to meet the unique requirements of our customers.
   Quality is paramount at Shenglin. Our Tube Fin Heat Exchangers adhere to the highest standards and carry international certifications such as Rohs, CE, and UL, which are widely recognized worldwide.



Material:


Copper Tube

Aluminum Tube

Bare Fin

Copper Fin

Hydrophilic aluminum fin

Anti-corrosion aluminum foil

Bare tube, inner grooved tube

Bare tube, inner grooved tube

For normal use like freezing and refrigeration

For industrial equipment,subway and train air conditioning

For indoor and transport air conditioning evaporators

For medical, chemical and marine climate.

Fin Pattern:


Tube Diamater

Hole Space(mm)

Row Space(mm)

Fin Space(mm)

Tube Material

Fin Material

ɸ5

19.05

11.6

1.1~2

Cu

Cu, AL

ɸ5

21

18.2

1.25~3

Cu

Cu, AL

ɸ6

13.5

10

1.3~2

AL

AL

ɸ7

25

21.65

1.4~3.0

AL

Cu, AL

ɸ7

21

18.2

1.2~3.0

Cu, AL

Cu, AL

ɸ7

21

12.7

1.3~2

Cu, SS, AL

Cu, AL

ɸ7

20.5

12.7

1.5~2

Cu

Cu, AL

ɸ7

19.05

12.7

1.3~3

Cu

AL

ɸ7

19.05

16.5

1.4~1.8

Cu

Cu, AL

ɸ7

17.6

13.2

1.3~2.5

Cu

Cu, AL

ɸ7.94

25.4

15.88

1.6~4

Cu, AL

Cu, AL

ɸ7.94

25.4

22

1.4~2.5

Cu

Cu, AL

ɸ7.94

25.4

19.05

1.2~3.3

Cu

Cu, AL

ɸ7.94

25

21.65

1.8~2.2

Cu

Cu, AL

ɸ7.94

22

19.05

1.6~2.3

Cu

Cu, AL

ɸ7.94

20.5

17.5

1.3~2

Cu

Cu, AL

ɸ9.52

31.75

27.5

2~7

Cu

Cu, AL

ɸ9.52

30

30

3~5

Cu

Cu, AL

ɸ9.52

25.4

22

1.7~5.0

Cu, SS

Cu, AL

ɸ9.52

25.4

19.05

1.2~2.5

Cu

Cu, AL

ɸ9.52

25.4

12.7

1.3~2

Cu, AL

Cu, AL

ɸ9.52

25.4

15.88

1.3~3

AL

AL

ɸ9.52

25

21.65

1.6~5.5

Cu, SS, AL

Cu, AL

ɸ9.52

25

25

2.5~4.2

Cu

Cu, AL

ɸ9.52

25

12.5

1.3~3

AL

AL

ɸ9.52

19.05

16.5

1.3~4

Cu, AL

Cu, AL

ɸ12

70

20

6~9

Cu

Cu, AL

ɸ12

50

25

1.8~7

Cu, SS

Cu, AL

ɸ12.7

75

25

8~10

Cu

Cu, AL

ɸ12.7

60

30

8~10

Cu

Cu, AL

ɸ12.7

50

50

2.8~6.0

Cu

Cu, AL

ɸ12.7

48

48

4.5~9

Cu

Cu, AL

ɸ12.7

40.5

35

4.5~12

Cu

Cu, AL

ɸ12.7

38.1

33

1.6~4.0

Cu

Cu, AL

ɸ12.7

35

30.3

1.8~3.1

Cu

Cu, AL

ɸ12.7

31.75

27.5

1.6~5

Cu, SS, AL

Cu, AL

ɸ14.5

52

45

4.5~7

Cu

Cu, AL

ɸ15.88

75

25

8~10

Cu

Cu, AL

ɸ15.88

60

30

8~10

Cu

Cu, AL

ɸ15.88

60

52

7~9

Cu

Cu, AL

ɸ15.88

50

50

2.5~12

Cu, SS, Ti, Cu-Ni

Cu, AL

ɸ15.88

38.1

33

1.6~5.0

Cu, SS, AL, Ti, Cu-Ni

Cu, AL

ɸ18

65

65

6~30

Cu, SS, AL, CS

CS, AL

ɸ25

75

65

6~30

Cu, SS, AL, CS

CS, AL
