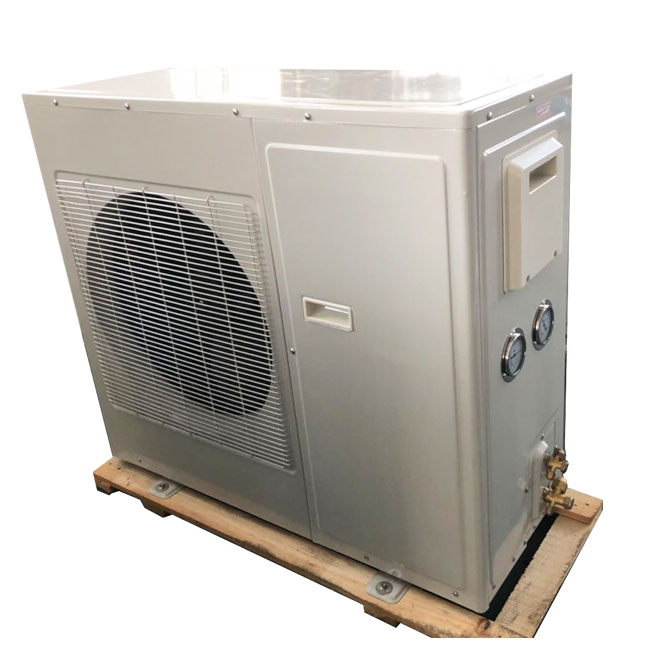

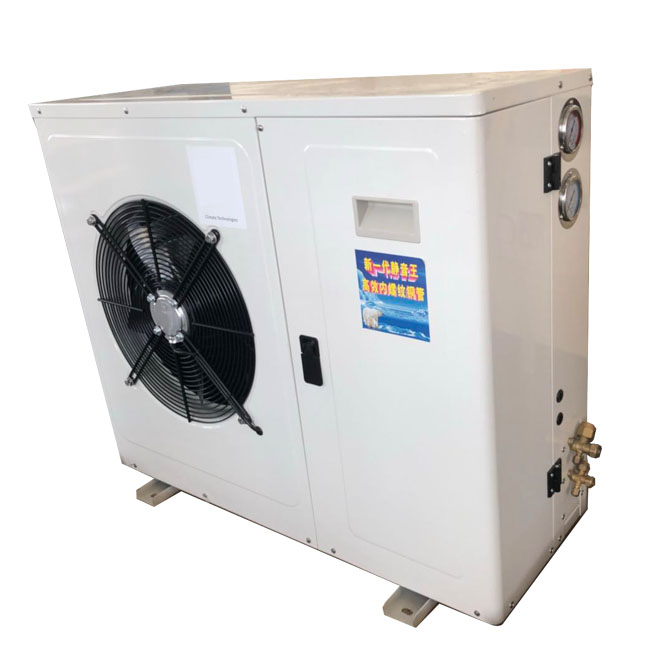

L Type Condensing Unit/Cold Room L type Cooling Unit

In case you do not find the type or model in the website We can customized according to your request.
Contact Now

TEL:0086-21-35324169
FAX:0086-21-35324166
Email:sales@shenglintec.com
WhatsApp:0086 13916147965
Mob:0086 13916147965

Features
Technical Data
Application
Certification
Part List
Reference

1. According to customer`s requirement, this item can be widely applied to hotels, restaurants, food medicine store, agriculture, chemical engineering and other industries.
temperature range from -5 ℃ to 10℃ , and -10 ℃ to 18℃ .

2. Closed box type with compact structure and good appearance;

3. Equiped matched with copeland, sanyo and danfoss and other freezing scroll compressor

4. Condenser with copper pipe plus aluminum fin type for high efficiency ans stabilization

5. Terminal box with convenient wiring

6. Convenient to engineering and repair with installation stop valves

L type condensing unit middle-high temperature parameter

Model			200H	300H	400H	500H
Compressor model(copeland, Sanyoo, Dakin, Danfoss)			2HP	3HP	4HP	5HP
Cooling capacity	Evaporation 7℃	W	6150	8870	12000	14700
	Evaporation 5℃	W	5730	8260	11050	13700
	Evaporation 0℃	W	4770	6890	8880	11250
Room temperature		℃	5~10℃
Refrigerant			R22
Supply power			380v/3P/50HZ
Condenser	Fan qty		1*Φ450	1*Φ450	2*Φ450	2*Φ450
	Fan voltage	V	220	220	220	220
	Fan power	W	60	60	60*2	60*2
Interface	Suction interface	mm	Φ16	Φ16	Φ19	Φ19
Interface	Liquid interface	mm	Φ10	Φ10	Φ12	Φ12
External dimension	L	mm	1020	1020	1020	1020
	W	mm	420	420	420	420
	H	mm	840	840	1240	1240
Installation dimension	(A * B)	mm	580*380	580*380	580*380	580*380

Design condition: Evaporator temp. 5 ℃, ambient temp. 35℃, suction superheat 10℃

Model			200M	300M	400M	500M	600M
Compressor model			ZB15KQ	ZB21KQ	ZB29KQ	ZB38KQ	ZB45KQ
Cooling capacity	Evaporation -5℃	W	3290	5700	7000	9100	11550
	Evaporation -7℃	W	3620	5270	6320	8300	10650
	Evaporation -10℃	W	3190	4660	5390	7200	9390
Room temperature		℃	-5~5℃
Refrigerant			R22
Supply power			380v/3P/50HZ
Condenser	Fan qty		1*Φ450	1*Φ450	1*Φ450	2*Φ450	2*Φ450
	Fan voltage	V	220	220	220	220	220
	Fan power	W	60	60	60	60*2	60*2
Interface	Suction interface	mm	Φ16	Φ16	Φ16	Φ19	Φ19
Interface	Liquid interface	mm	Φ10	Φ10	Φ10	Φ12	Φ12
External dimension	L	mm	1020	1020	1020	1020	1020
	W	mm	420	420	420	420	420
	H	mm	840	840	840	1240	1240
Installation dimension	(A * B)	mm	580*380	580*380	580*380	580*380	580*380

Design condition: Evaporator temp. -7 ℃, ambient temp. 35℃, suction superheat 10℃

Model			200L	300L	400L	500L	600L
Compressor model			ZB15KQE	ZB21KQE	ZB29KQE	ZB38KQR	ZB45KQE
Cooling capacity	Evaporation -5℃	W	3660	5630	7680	9550	11200
	Evaporation -7℃	W	3630	5180	7070	8790	10350
	Evaporation -10℃	W	2920	4570	6210	7740	9120
	Evaporation -20℃	W		2930	3930	4940	5850
	Evaporation -23℃	W		2540	3390	4280	4080
	Evaporation -25℃	W		2300	3070	3880	4610
Room temperature		℃	-18℃
Refrigerant			R404A
Supply power			380v/3P/50HZ
Condenser	Fan qty		1*Φ450	1*Φ450	1*Φ450	2*Φ450	2*Φ450
	Fan voltage	V	220	220	220	220	220
	Fan power	W	60	60	60	60*2	60*2
Interface	Suction interface	mm	Φ16	Φ16	Φ16	Φ19	Φ19
Interface	Liquid interface	mm	Φ10	Φ10	Φ10	Φ12	Φ12
External dimension	L	mm	1020	1020	1020	1020	1020
	W	mm	420	420	420	420	420
	H	mm	840	840	840	1240	1240
Installation dimension	(A * B)	mm	580*380	580*380	580*380	580*380	580*380

Design condition: Evaporator temp. -23 ℃, ambient temp. 35℃, suction superheat 10℃

According to customer`s requirement, this item can be widely applied to hotels, restaurants, food medicine store, agriculture, chemical engineering and other industries.
temperature range from -5 ℃ to 10℃ , and -10 ℃ to 18℃ .
