Shell and Tube Heat Exchanger

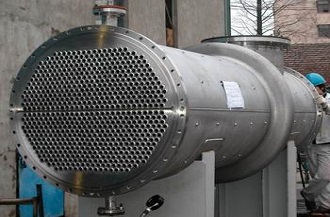

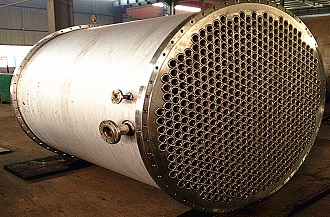

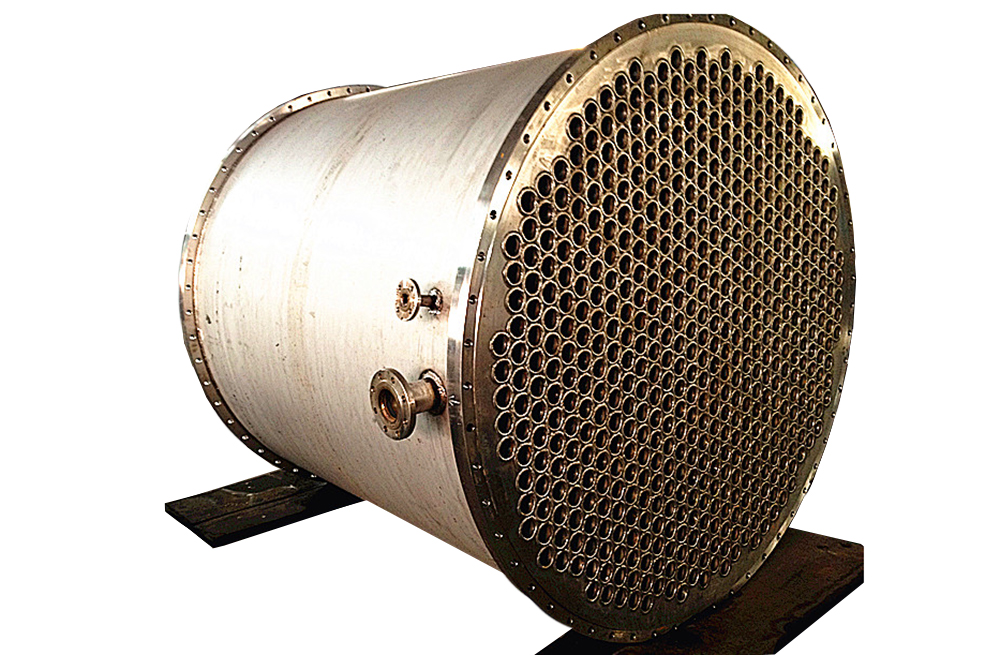

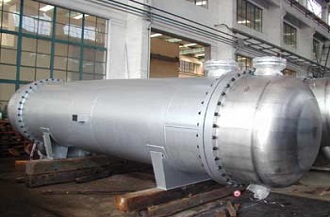

Huge Stainless Steel Heat Exchanger
In case you do not find the type or model in the website
We can customized according to your request.
Contact Now
Contact Now
- TEL:0086-21-35324169
- FAX:0086-21-35324166
- Email:sales@shenglintec.com
- WhatsApp:0086 13916147965
- Mob:0086 13916147965
1) Usually used for cooling
2) SSS904 tubes and SS304 shell.
3) The tube was tested by 1.62MPa pressure to make sure the tube is strong and not leakage .
4) The shell was tested by 0.5Mpa water pressure to make sure the water system not leakage .
5) ASME certificated.
2) SSS904 tubes and SS304 shell.
3) The tube was tested by 1.62MPa pressure to make sure the tube is strong and not leakage .
4) The shell was tested by 0.5Mpa water pressure to make sure the water system not leakage .
5) ASME certificated.
Work Condition:
1)Refrigerant side(In the tube): R22,R134a,R407c,R410a etc.
2)Water side (Between the tube and shell):Nature water, fresh water, sea water or other liquid.
Material:
1)Heat transfer Tube: stainless steel
2)Shell: stainless steel
Main specifications
| Design pressure | 100mpa max |
| Design temperature | 1050℃ max |
| Diameter of shell | 3000mm max |
| Heat exchange area/set | 6000 square meter max |
| Diameter of heat exchanger tube | 10-70mm |
| Length of heat exchanger tube | 100-20000mm |
| Type of heat exchanger tube |
1) arc-tube 2) spiral-tube |
| Baffling element |
1) segment baffle plate 2) circle baffle plate 3) vortex baffle plate 4) rod-baffle |
| Main material |
1) mild steel 2) low alloy steel 3) stainless steel 4) copper(for tube) 5) titanium (for tube) |
Application：
Shell and tube heat exchanger are widely used for cooling and heating in certain fields of special industries, such as acid tank plating, aluminum oxidation, petrochemical industry, light industry, metallurgy, electric power, shipbuilding and marine environment etc.
