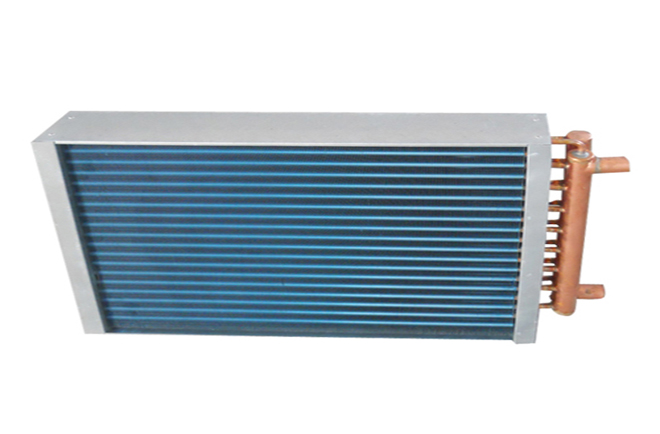

Plate Fin Heat Exchanger（留样）
In case you do not find the type or model in the website
We can customized according to your request.
Contact Now
Contact Now
- TEL:0086-21-35324169
- FAX:0086-21-35324166
- Email:sales@shenglintec.com
- WhatsApp:0086 13916147965
- Mob:0086 13916147965
Mold of Copper tube＆aluminum fin/copper fin
Mold of Stainless steel tube＆aluminum fin/copper fin
| Fin Pattern | Copper Tube O.D.(mm) | Row Space(mm) | Hole Space(mm) |
Fin Thickness(mm) |
Fin Space(mm) | ||||
| Flat fin | Sine wave with blade fin | Smooth sine wave fin | Window fin | Sesamoid fin | |||||
| A | 7 | 12.7 | 21 | 0.105 | / | / | 1.3 | 1.3 | / |
| B | 7 | 13.2 | 17.6 | 0.105 | / | / | 1.3 | 1.3 | / |
| C | 7 | 12.7 | 20.4 | 0.105 | / | / | 1.3~1.8 | 1.3~1.8 | / |
| D | 7 | 12.7 | 19.05 | 0.105 | / | / | 1.3~1.8 | 1.3~1.8 | / |
| E | 7.94 | 15.88 | 25.4 | 0.105 | 1.8~3.0 | 1.8~3.0 | 1.8~3.0 | 1.8~3.0 | / |
| E | 7.94 | 19.05 | 22 | 0.105~0.13 | 1.4~3.0 | 1.4~3.0 | 1.4~3.0 | 1.4~3.0 | / |
| F | 9.52 | 22 | 25.4 | 0.105~0.15 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | / |
| G | 9.52 | 22 | 25.4 | 0.18~0.4 | 3.5~6.35 | / | / | / | / |
| H | 9.52 | 21.65 | 25 | 0.105~0.18 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | / |
| I | 9.52 | 21.65 | 25 | 0.15~0.24 | 3.2~6.35 | 3.2~6.35 | 3.2~6.35 | / | / |
| J | 12.75 | 27.5 | 31.75 |
0.115~0.15 |
1.5~3.5 | 1.5~3.5 | 1.5~3.5 | 1.5~3.5 | 1.6~3.2 |
| K | 15.88 | 33 | 38.1 | 0.115~0.15 | 1.5~4.0 | 1.5~4.0 | 1.5~4.0 | / | / |
| L | 15.88 | 34.64 | 40 | 0.115~0.15 | / | 2.6~3.5 | 2.6~3.5 | / | / |
Mold of Stainless steel tube＆aluminum fin/copper fin
| Fin Pattern | Stainless steel Tube O.D.(mm) | Row Space(mm) | Hole Space(mm) |
Fin Thickness(mm) |
Fin Space(mm) | ||||
| Flat fin | Sine wave with blade fin | Smooth sine wave fin | Window fin | Sesamoid fin | |||||
| A | 9.52 | 22 | 25.4 | 0.105~0.15 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | / |
| B | 9.52 | 16.5 | 19.05 | 0.105~0.115 | 1.4~2.5 | 1.4~2.5 | 1.4~2.5 | / | / |
| C | 12.75 | 27.5 | 31.75 |
0.115~0.15 |
1.5~3.5 | 1.5~3.5 | 1.5~3.5 | 1.5~3.5 | 1.6~3.2 |
| D | 15.88 | 33 | 38.1 | 0.115~0.15 | 1.5~4.0 | 1.5~4.0 | 1.5~4.0 | / |
/ |
|
1: Used in AHU(air handlign unit) |
2: Used in air source heat pump |
3: Used in FCU(fan coil unit) |
4: Used in ice maker |
|
|
|
|
|
|
5: Used in household split air conditioner |
6: Used in cabinet |
7: Used in air cooled chiller. |
8: Used in dehumidifier. |
|
|
|
|
|
|
|
|
|
|
|
9: Used in beauty laser equipment. |
10: Used in bus air conditioner. |
11: Used in air cooled condensing unit. |
12: Used in island counter or deep freezer |
|
|
|
|
|
