Danfoss All In One Condensing Unit And Evaporator

In case you do not find the type or model in the website We can customized according to your request.
Contact Now

TEL:0086-21-35324169
FAX:0086-21-35324166
Email:sales@shenglintec.com
WhatsApp:0086 13916147965
Mob:0086 13916147965

Features
Technical Data
Application
Certification
Part List
Reference

Adopt Danfoss core components, strictly control product design and production process, and pass Danfoss audit standards. The unit range is 2~15HP, which can meet the different temperature requirements of commercial refrigeration and cold storage.

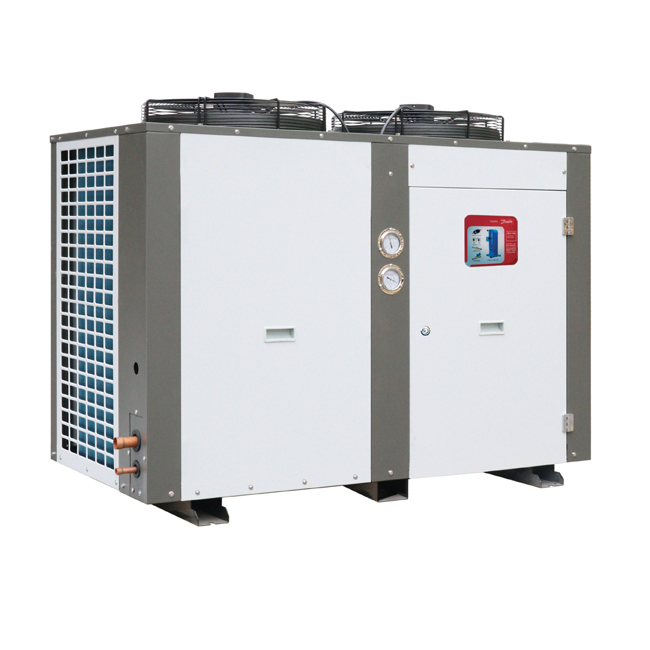

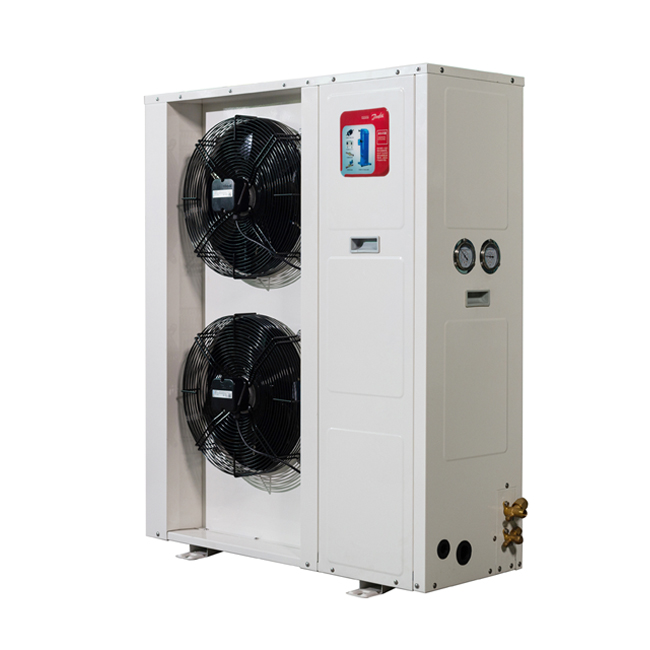

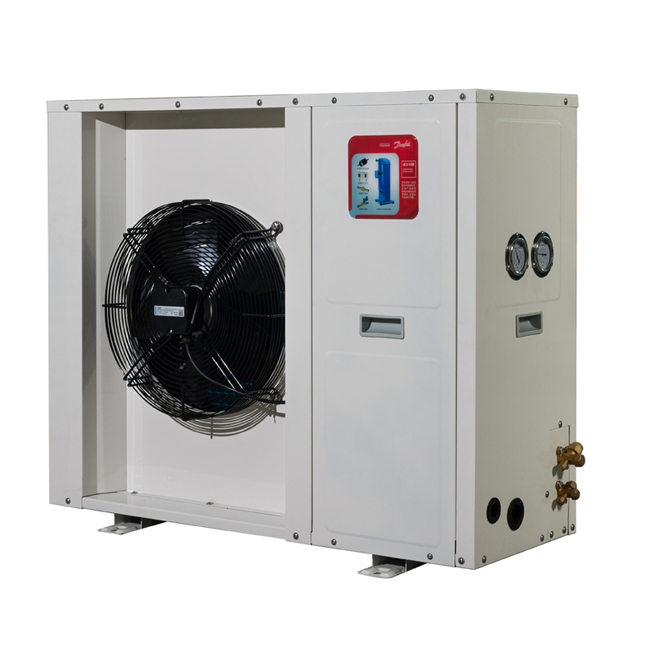

Condensing Unit:

1. Increase the heat dissipation area and fan air volume, realize efficient heat exchange, save electricity bills, and respond to harsh summer conditions.

2. Thicker sheet metal and flexible pipeline design to reduce unit vibration

3. Anti-corrosion galvanized sheet + electrostatic spray, long-lasting corrosion resistance, not easy to be scratched and deformed, and extend the service life

4. The compressor is equipped with soundproof cotton as standard, which reduces noise pollution and residents' complaints during operation

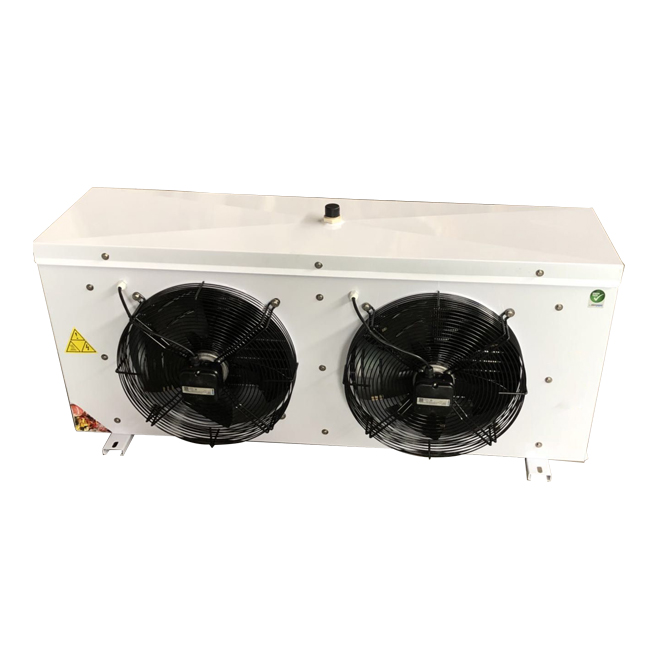

Evaporator Unit：

1. Built-in high-efficiency dispenser, optional Danfoss expansion valve, with core technology guarantee

2. Anticorrosive galvanized sheet + electrostatic spray, long-lasting corrosion resistance, clean and sanitary, not easy to be scratched and deformed, and extend the service life

3. The heat exchanger is composed of thickened copper tubes and thickened aluminum fins, which are tightly penetrated and expanded. The optimized pipeline design is adopted to delay frost formation, reduce wind resistance, and improve heat exchange efficiency.

DANFOSS ALL IN ONE CONDENSING UNIT AND EQUIPPED EVAPORATOR DATA(R22)
Unit power			2hp	3hp	4hp	5hp	6hp
CODENSING UNIT	Power supply		380v/3/50HZ~220V/1/50HZ		380v/3/50HZ
	Evaporation temp range		-15℃~+10℃
	Model		SL-CUB0200MY(S)	SL-CUB0300MY(S)	SL-CUB0400MY	SL-CUB0500MY	SL-CUB0600MY
	Nominal condition performance	Capacity	3.46kw	4.88kw	7.14kw	8.2kw	9.76kw
	Nominal condition performance	COP	≥1.8	≥1.8	≥1.8	≥2.2	≥2.2
	Compressor	Type	Danfoss scroll compressor
	Compressor	Model	MLZ015T4/T5	MLZ021T4/T5	MLZ030T4	MLZ038T4	MLZ045T4
	Fan motor	quantity	1	1	1	2	2
	Fan motor	Total power	60W	60W	60W	60WX2	60WX2
	Connecting pipe diameter	suction	5/8''	5/8''	3/4''	3/4''	3/4''
	Connecting pipe diameter	exhasut	3/8''	3/8''	3/8''	1/2''	1/2''

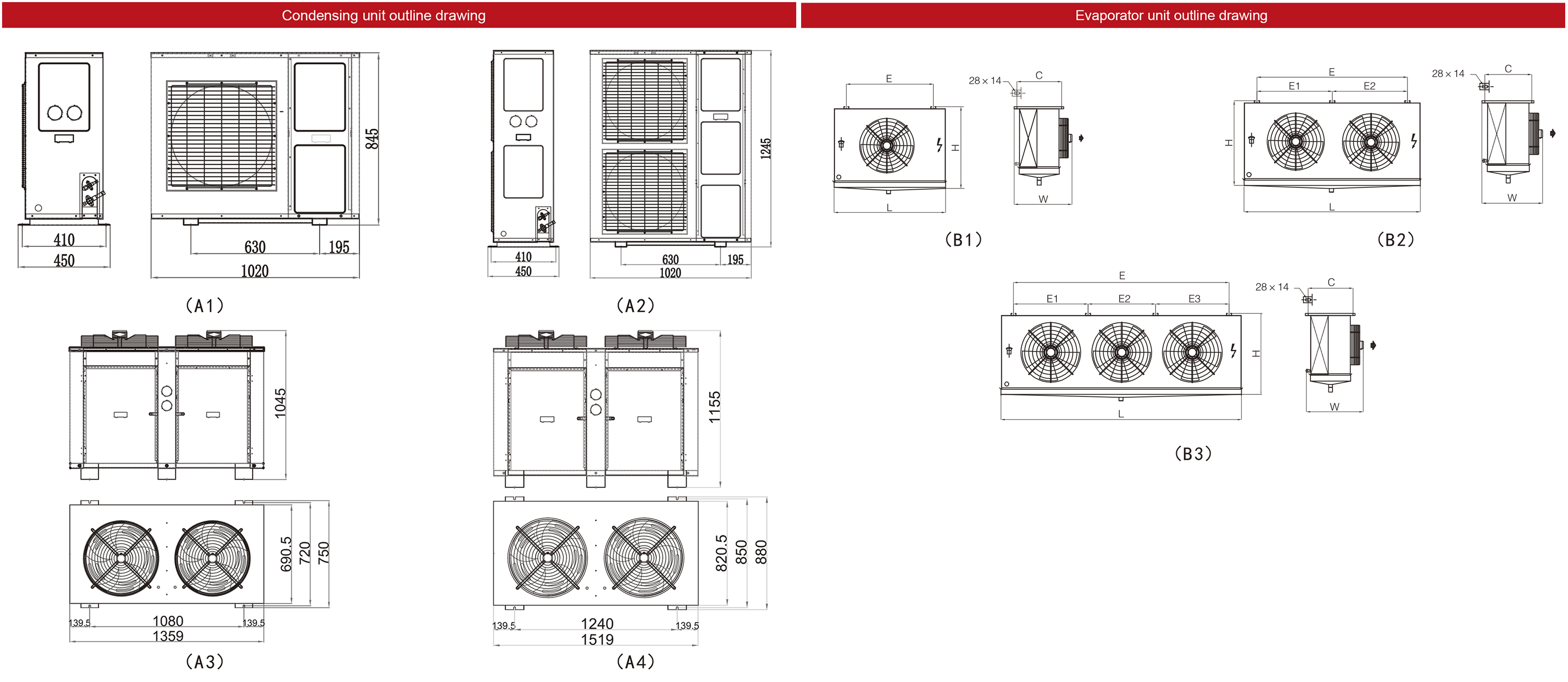

	External drawing	number	A1			A2
EVAPORATOR	Model		NPC301D04	NPC302C04	NPC302F04	NPC402C04	NPC402D04
	Fan motor	quantity	1	2	2	2	2
	Fan motor	total power	68W	68WX2	68WX2	135WX2	135WX2
	defrost power	input power	2.5KW	3KW	5KW	3KW	3KW
	Fin space		4MM
	External drawing	number	B1	B2
	External dimension	LxWxH	730X500X450	1180X500X450		1355X550X570
	Installation dimension	CxE	390X477	390X930		450X1105

Unit power			7hp	8hp	9hp	10hp	15hp
CODENSING UNIT	Power supply		380v/3/50HZ
	Evaporation temp range		-15℃~+10℃
	Model		SL-CUB0700MY	SL-CUC0800MY	SL-CUC0900MY	SL-CUC1000MY	SL-CUC1500MY
	Nominal condition	Capacity	11.2kw	12.6kw	14.7kw	17.1kw	26.1kw
	Nominal condition	COP	≥2.2	≥2.2	≥2.2	≥2.2	≥2.2
	Compressor	Type	Danfoss scroll compressor
	Compressor	Model	MLZ048T4	MLZ058T4	MLZ066T4	MLZ076T4	MLZ116T4
	Fan motor	quantity	2	2	2	2	2
	Fan motor	Total power	60WX2	450WX2	450WX2	450WX2	600WX2
	Connecting pipe diameter	suction	7/8''	1-1/8''	1-1/8''	1-1/8''	1-5/8''
	Connecting pipe diameter	exhasut	1/2''	5/8''	5/8''	5/8''	5/8''
	External drawing	number	A2	A3			A4
EVAPORATOR	Model		NPC402F04	NPC402F04	NPC403D04	NPC403E04	NPI502F04
	Fan motor	quantity	2	2	3	3	2
	Fan motor	total power	135WX2	135WX2	135WX3	135WX3	820WX2
	defrost power	input power	5KW	5KW	4.5KW	7.5KW	9KW
	Fin space		4MM
	External drawing	number	B2		B3		B2
	External dimension	LxWxH	1355X550X570		1895X550X570		1990X700X850
	Installation dimension	CxE	450X1105		450X1645		590X1647
Nominal condition：Evaporation temp -10℃，ambient temp32℃，Return superheat 11K,have super cooling
