Product features
LDD, LD series spiral single quick freezing device is the latest domestic model developed by our company by absorbing the advanced design ideas of Japan's MIZUNO Co., Ltd. and Sweden's FRIGOSCANDIA company and carrying out independent innovation. It not only has the energy saving and land occupation of similar models. In addition to the characteristics of province, it also has the following characteristics:

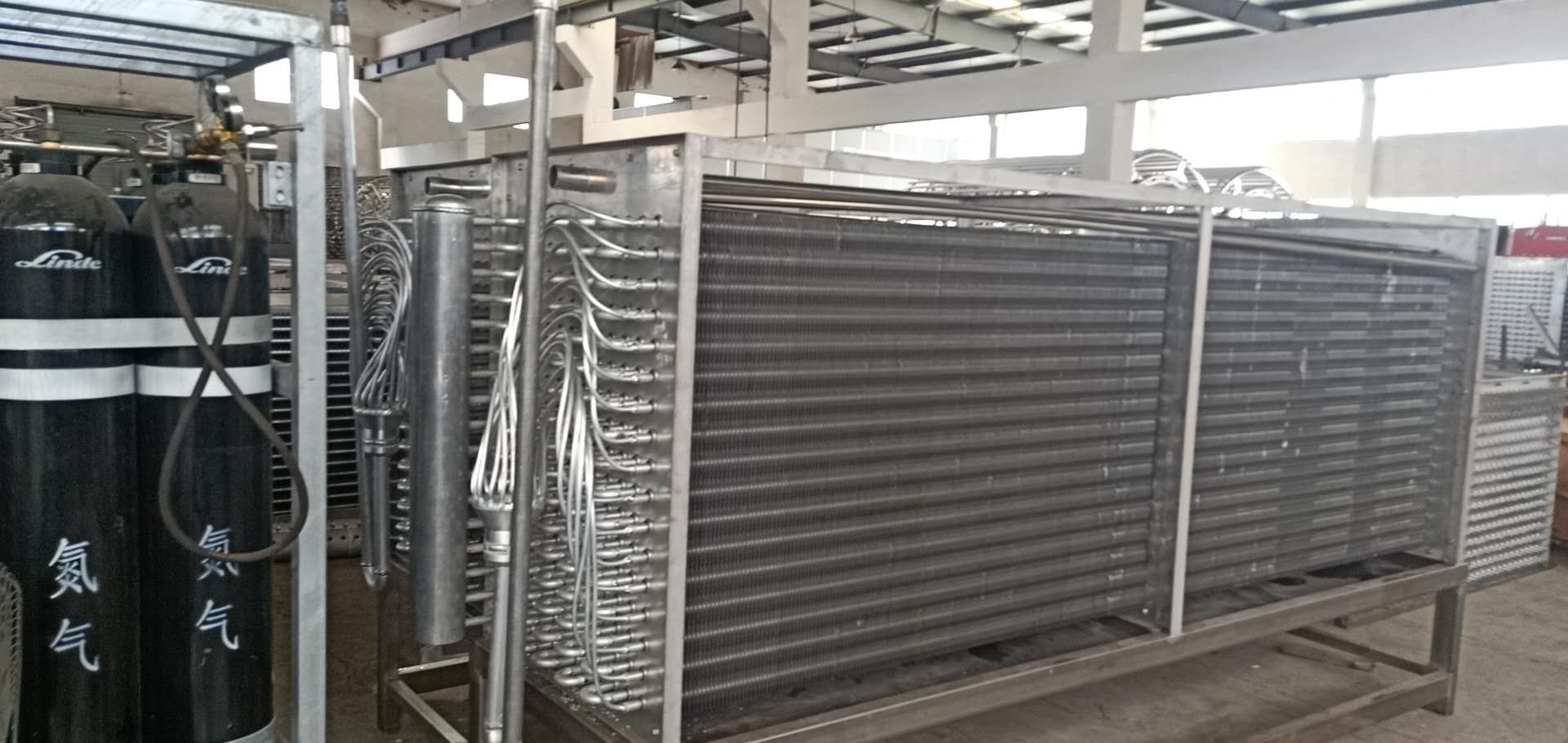

1. Using high-efficiency large-fin all-aluminum evaporator (or large-fin copper tube evaporator), high heat transfer coefficient, low frosting rate, long continuous working time; uniform and reasonable airflow organization.

2. The key supporting parts and the parts that are easy to be contaminated and not easy to clean are made of thick polished stainless steel square pipes, which meet the requirements of HACCP specifications.

3. The internal structure and driving mechanism are designed reasonably and concisely, and it is convenient and convenient to repair and replace parts.

4. The new drive system is adopted to ensure the synchronous operation of the mesh belt and the brick tower; and after the system stops, the residual tension of the mesh belt is zero, thereby effectively extending the service life of the conveyor mesh belt.

5. The accessories of all models are selected with international quality, domestically manufactured products, easily damaged parts are easily purchased and replaced, and operating costs are low.

6. Frozen product range: This device is suitable for fast freezing of small packaged food, prepared food, ice cream and other foods, and is also suitable for seafood such as scare, fish, and fried foods with a long freezing time.

7. This series of models can be equipped with our company's unique computer-controlled CIP automatic cleaning system according to user requirements, and can be specially designed according to users' special requirements.

Product composition

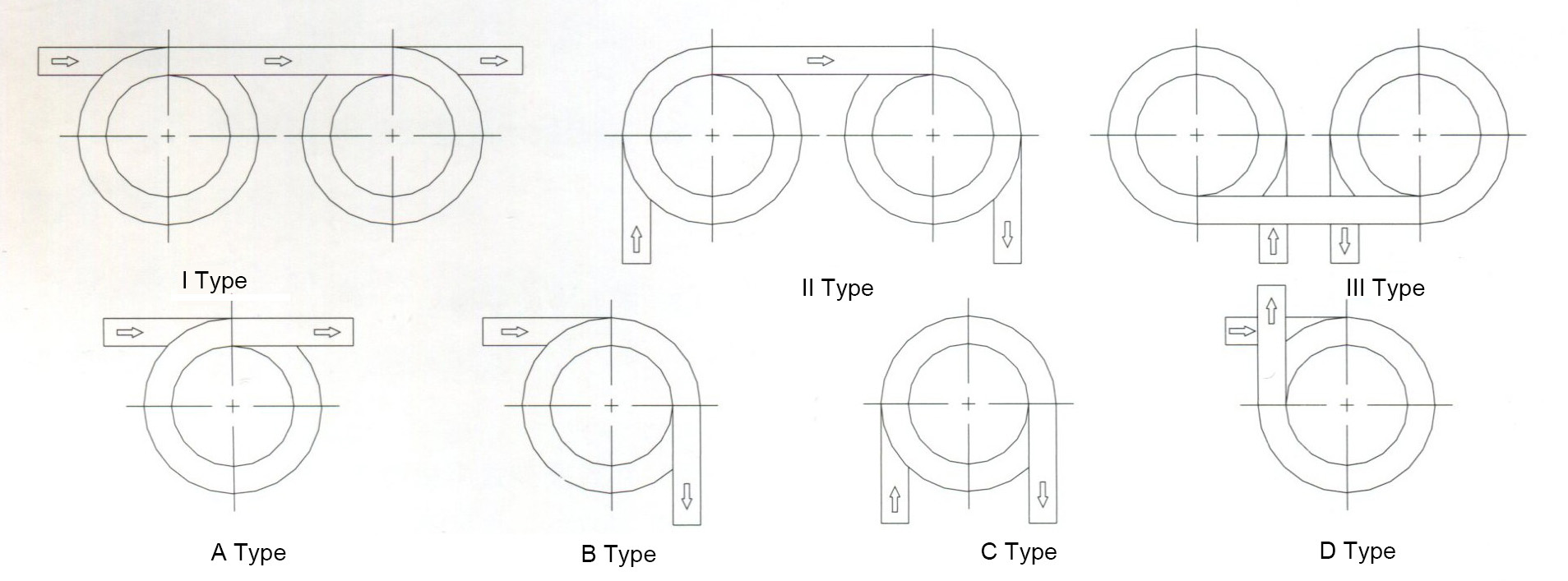

1. This series of products includes LDD double tower series and LD single tower series, and there are various types of products for selection according to different blowing styles and different inlet and outlet positions.

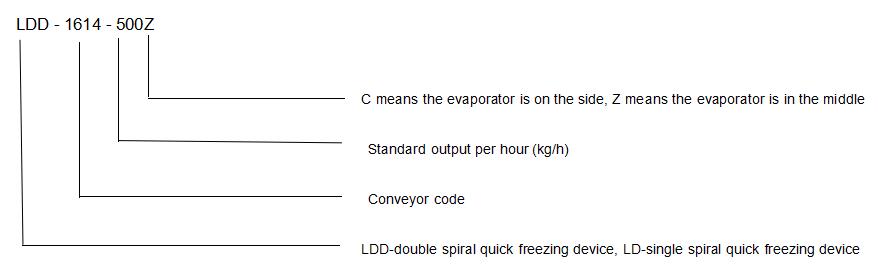

2. Model description

Main standard technical parameters and dimensions

Technical parameters of LDD double spiral Z type

Model	LDD-1614-500Z	LDD-2014-750Z	LDD-2512-1000Z	LDD-2518-1500Z	LDD-2918-2000Z
Standard production volume kg/h	500	750	1000	1500	2000
Freezing time min	20~200 minutes adjustable
Feed temperature ℃	+50
Discharge temperature ℃	-18
Inside temperature℃	-35
Cold consumption KW	100	146	188	272	365
Installed power KW	11	12	19	26	37

Note:
1. The standard design output is based on naked frozen fried chicken nuggets, and the loading density is 5kg/m2
2. Cold consumption refers to the working conditions of evaporating temperature -42℃ and condensing temperature +35℃
3. The refrigerant can be R717, R22 or R404A, etc.

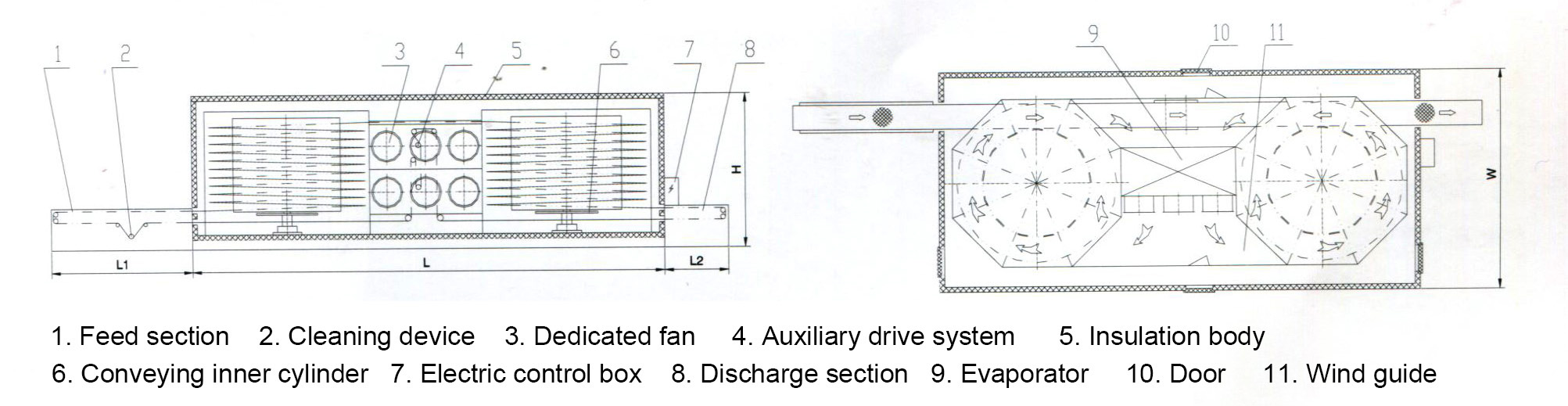

LDD double spiral Z type overall dimensions

Model	L(mm)	L1(mm)	L2(mm)	W(mm)	H(mm)
LDD-1614-500Z	9000	1800	1500	4050	3300
LDD-2014-750Z	10350	1800	1500	4500	3300
LDD-2512-1000Z	12600	1800	1500	5400	3300
LDD-2518-1500Z	12600	2000	1800	5400	4300
LDD-2918-2000Z	14100	2000	1800	5850	4300

LDD double spiral type C technical parameters

Model	LDD-2512-1000C	LDD-2518-1500C	LDD-2918-2000C
Standard production volume kg/h	1000	1500	2000
Freezing time min	20~200 minutes adjustable
Feed temperature ℃	+50
Discharge temperature ℃	-18
Inside temperature℃	-35
Cold consumption KW	188	272	365
Installed power KW	31.5	36.4	42.4

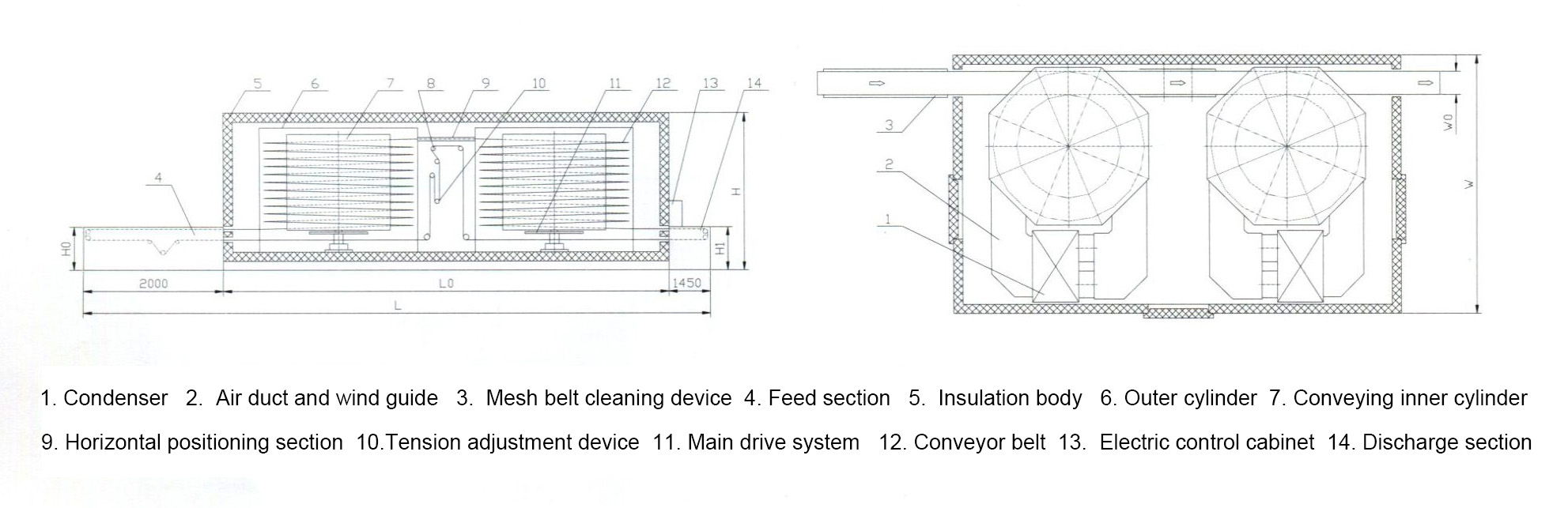

LDD double spiral C type overall dimensions

Model	L(mm)	L0(mm)	W(mm)	H(mm)	H0(mm)
LDD-2512-1000Z	12450	9000	6300	3300	1050
LDD-2518-1500Z	13350	9900	6750	4300	1050
LDD-2518-2000Z	13850	10400	8100	4300	1060

Frozen product range: This device is suitable for fast freezing of small packaged food, prepared food, ice cream and other foods, and is also suitable for seafood such as scare, fish, and fried foods with a long freezing time.
